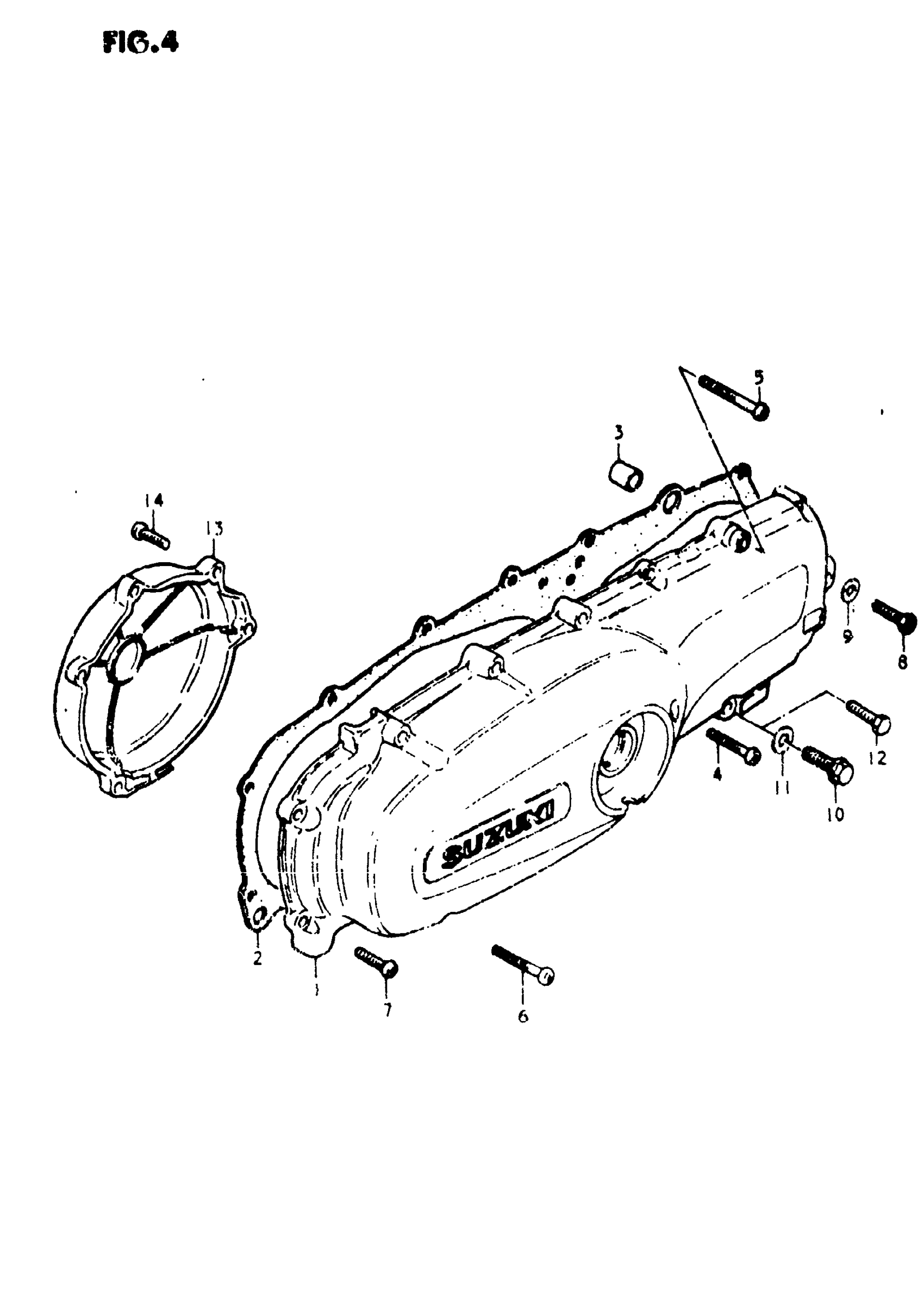

Suzuki FZ50 (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL N This part replaces 11341-02410.

11341-02411

Unavailable

1

COVER, CLUTCH | MODEL T

11341-02411

Unavailable

1

COVER, CLUTCH | MODEL X This part replaces 11341-02412.

11341-02411

Unavailable

2

GASKET,CL COVER | MODEL N This part replaces 11482-02302.

11482-02310

Unavailable

2

GASKET,CL COVER | MODEL T,X This part replaces 11482-02303.

11482-02310

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06658.

02112-06657

$2.62

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

9

GASKET

09168-06004

$1.49

10

BOLT | MODEL N, T This part replaces 01517-08258.

01550-08257

$2.81

11

GASKET (8.2X14X1) | MODEL N, T This part replaces 09168-08008.

09168-08016

$1.65

12

BOLT | MODEL X This part replaces 01107-08258.

01500-08257

$2.50

13

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 11351-02301.

11351-02303

Unavailable

13

NO DESCRIPTION AVAILABLE | MODEL T, X This part replaces 11351-02302.

11351-02303

Unavailable

14

SCREW This part replaces 02112-06208.

02112-06207

$1.78
