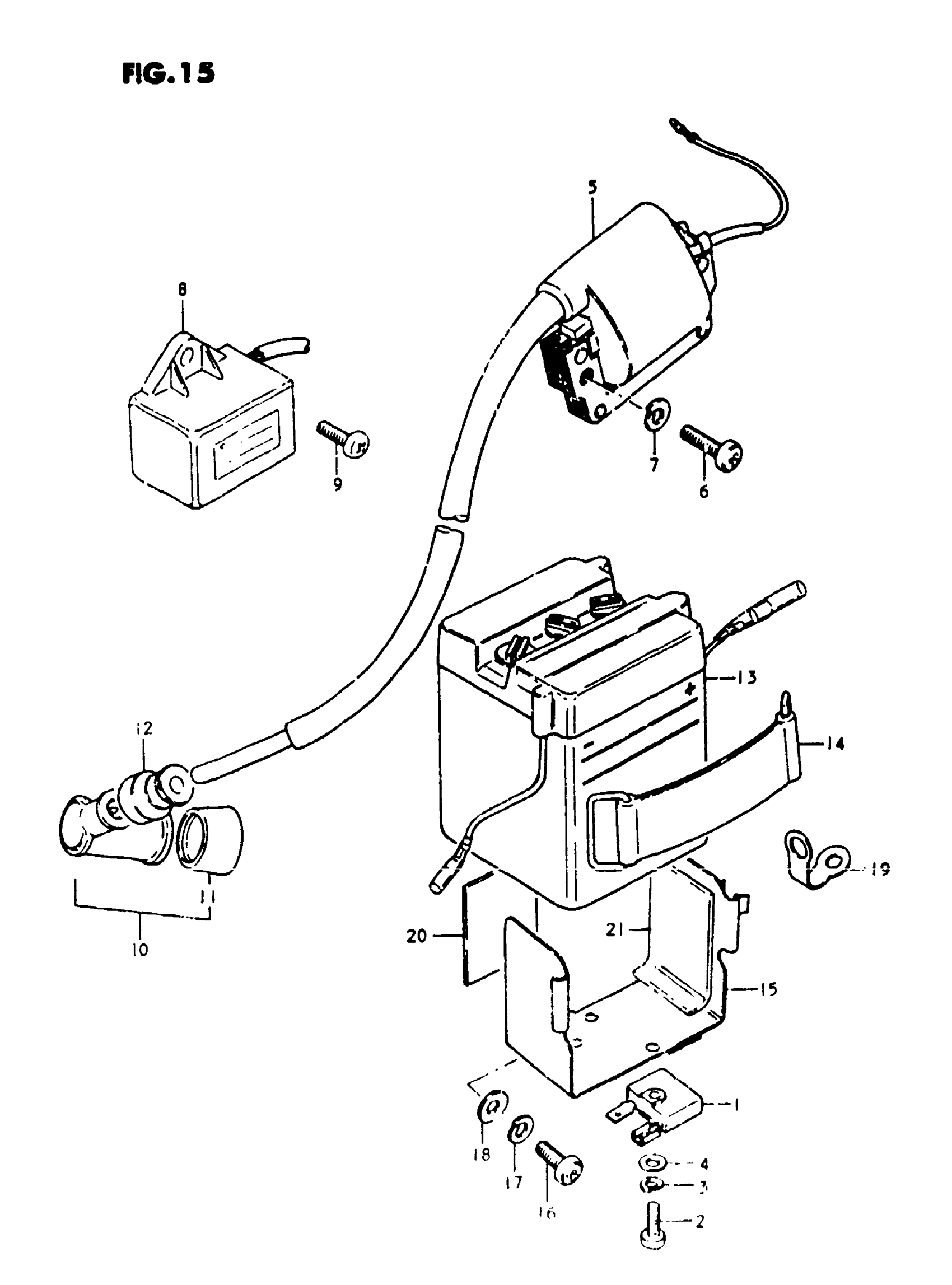

Suzuki FZ50 (1981) BATTERY Diagram

#

Description
Price

1

DIODE This part replaces 32800-19063.

32800-16A00

$23.07

2

SCREW This part replaces 02112-05208.

02112-05207

$1.97

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

4

WASHER This part replaces 08322-21058.

08322-01057

$2.13

5

NO DESCRIPTION AVAILABLE | MODEL N,T This part replaces 33410-02420.

33410-02421

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 33410-02430.

33410-02431

Unavailable

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

C.D.I. UNIT ASSY | MODEL N

32900-02420

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 32900-02331.

32900-46321

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 32900-02210.

32900-46321

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

CAP SET,SPARK P | Includes Item(s) 11 - 12 This part replaces 33500-69810.

33500-69811

$22.48

11

SEAL, SPARK PLUG

33541-69010

$4.37

12

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

13

BATTERY (6N4-2A)

33610-03010

Unavailable

14

BAND

09462-00008

$4.77

15

HOLDER, BATTERY

41540-02400

Unavailable

16

SCREW This part replaces 02112-06128.

02112-06127

$1.84

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

19

CLAMP, BATTERY EXHAUST PIPE

09404-07704

Unavailable

20

PROTECTOR, BATTARY

33652-36100

$2.36

21

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.64
