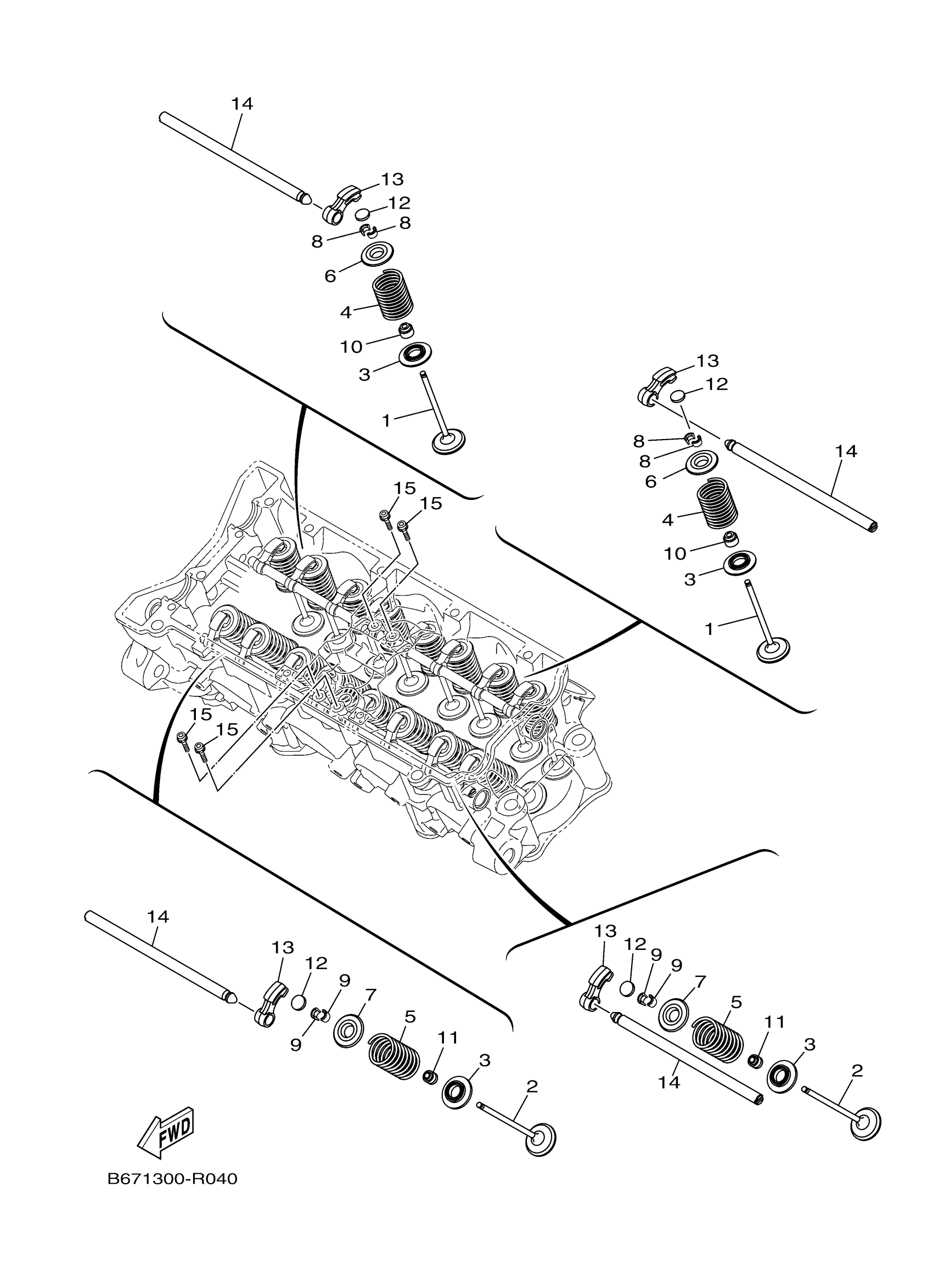

Yamaha FZ10HGY (FZ10) B6720 2017 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

B67-12111-00-00

$25.44

2

VALVE, EXHAUST

2CR-12121-00-00

$57.05

3

SEAT, VALVE SPRING

B60-12116-00-00

$3.95

4

SPRING, VALVE INNER

B67-12113-00-00

Unavailable

5

SPRING, VALVE OUTER

B67-12114-00-00

$17.77

6

RETAINER, VALVE SP

2CR-12117-00-00

$4.41

7

RETAINER, VALVE SP

2CR-12127-00-00

$3.63

8

COTTER, VALVE

1AA-12118-00-00

$9.62

9

COTTER, VALVE

1WG-12118-00-00

$5.50

10

SEAL, VALVE STEM

3P6-12129-00-00

$15.85

11

SEAL, VALVE STEM

4TE-12119-00-00

$11.20

12

PAD, ADJUSTING (1.60)

3LD-12168-K1-00

$10.56

12

PAD, ADJUSTING (1.65)

3LD-12168-M1-00

$10.89

12

PAD, ADJUSTING

3LD-12168-R1-00

$15.09

12

PAD, ADJUSTING

3LD-12168-U1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-W1-00

Unavailable

12

PAD, ADJUSTING

3LD-12168-Y1-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-11-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-31-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-50-00

Unavailable

12

PAD, ADJUSTING

3LD-12169-70-00

Unavailable

12

PAD, ADJUSTING (2.10)

3LD-12169-90-00

$14.14

12

PAD, ADJUSTING (2.15)

3LD-12169-E0-00

$14.06

12

PAD, ADJUSTING

3LD-12169-G0-00

Unavailable

12

PAD, ADJUSTING (2.25)

3LD-12169-J0-00

$10.03

12

PAD, ADJUSTING

3LD-12169-L0-00

Unavailable

12

PAD, ADJUSTING (2.35)

3LD-12169-N0-00

$8.58

12

PAD, ADJUSTING (2.40)

3LD-12169-T0-00

$14.05

13

ARM, VALVE ROCKER

2CR-12151-00-00

Unavailable

14

SHAFT, ROCKER

B60-12146-00-00

Unavailable

15

BOLT

90109-05016-00

Unavailable
