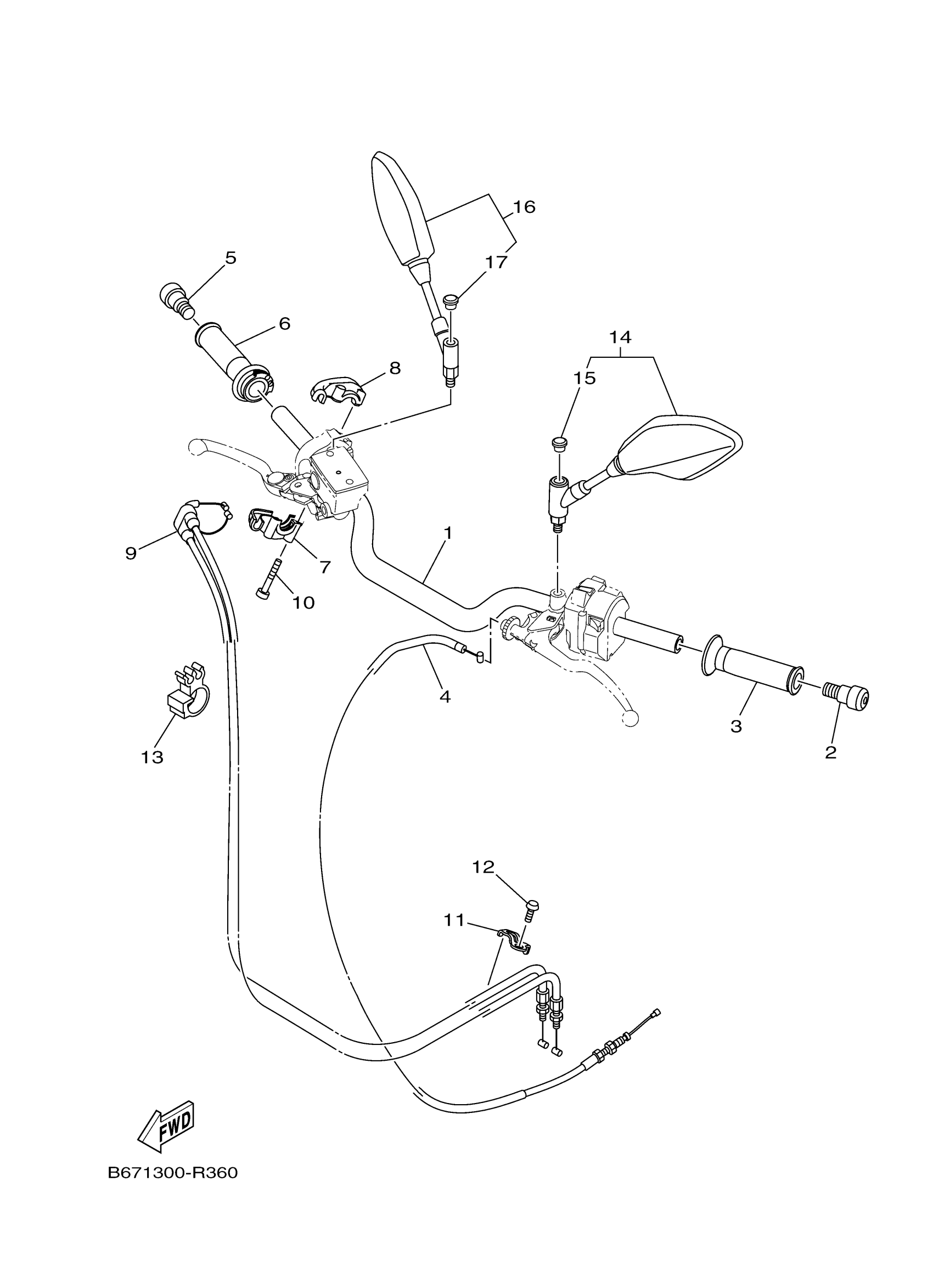

Yamaha FZ10HGY (FZ10) B6720 2017 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

B67-26111-00-00

$295.99

2

END, GRIP

5GJ-26246-00-00

$28.99

3

GRIP

4YR-26241-03-00

$11.99

4

WIRE, CLUTCH

B67-26335-01-00

$40.99

5

END, GRIP

5GJ-26246-00-00

$28.99

6

GRIP ASSY

4YR-26240-03-00

$30.99

7

CAP, GRIP UPPER

1WS-26281-00-00

$13.49

8

CAP, GRIP UNDER

1WS-26282-00-00

$14.49

9

THROTTLE CABLE ASSY

B67-26302-00-00

Unavailable

10

BOLT, SOCKET

91317-05040-00

$2.55

11

CLAMP, WIRE

2CR-2627E-00-00

$5.49

12

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

13

CLAMP

90464-16023-00

$3.28

14

REAR VIEW MIRROR ASSY (LEFT)

B67-26280-01-00

$78.99

15

CAP

5PS-26133-20-00

$6.99

16

REAR VIEW MIRROR ASSY (RIGHT)

B67-26290-01-00

Unavailable

17

CAP

5PS-26133-20-00

$6.99
