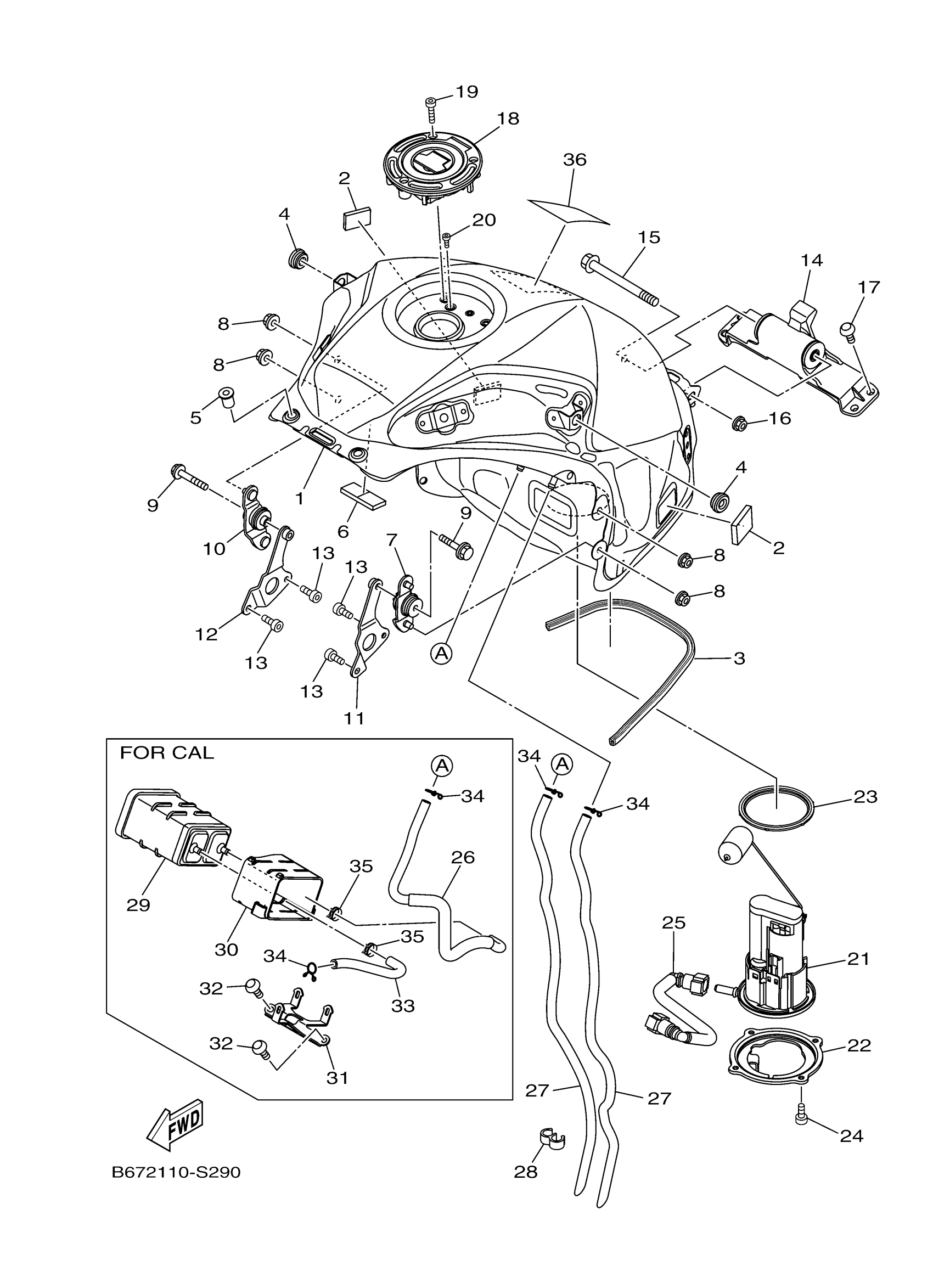

Yamaha FZ10HGY (FZ10) B6720 2017 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

B67-24110-01-P0

$780.99

2

DAMPER, LOCATING 1

18A-21778-00-00

$6.99

3

MOLD, FUEL TANK

3C5-24188-00-00

Unavailable

4

GROMMET

90480-13031-00

Unavailable

5

NUT(1KT)

90179-05523-00

$8.49

6

DAMPER, LOCATING 1

4X4-24181-00-00

$5.49

7

TANK BRACKET ASSY

B67-24104-00-00

Unavailable

8

NUT, FLANGE

95702-06500-00

$2.39

9

BOLT, FLANGE

95817-06035-00

$7.49

10

TANK BRACKET ASSY 2

B67-24105-00-00

$31.99

11

BRACKET, TANK FITTING

B67-2412Y-00-00

Unavailable

12

BRACKET, TANK FITTING

B67-2412Y-10-00

$10.49

13

BOLT(3MA)

91312-06016-00

$5.60

14

BRACKET, SEAT

B67-2412F-00-00

Unavailable

15

BOLT, FLANGE

95812-06090-00

$4.24

16

NUT, FLANGE

95702-06500-00

$2.39

17

BOLT

90111-06029-00

Unavailable

18

CAP ASSY

2CR-24602-01-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

20

BOLT

91312-05010-00

Unavailable

21

FUEL PUMP COMP.

B67-13907-10-00

Unavailable

22

BRACKET, FUEL PUMP

1WS-24491-01-00

Unavailable

23

O-RING

1RC-24486-00-00

Unavailable

24

BOLT

91312-05010-00

Unavailable

25

PIPE, FUEL 1

B67-13971-01-00

Unavailable

27

PIPE 2

B67-24312-00-00

Unavailable

28

CLAMP(6M7)

90464-09M31-00

Unavailable

34

CLIP

90467-090A2-00

Unavailable

36

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable
