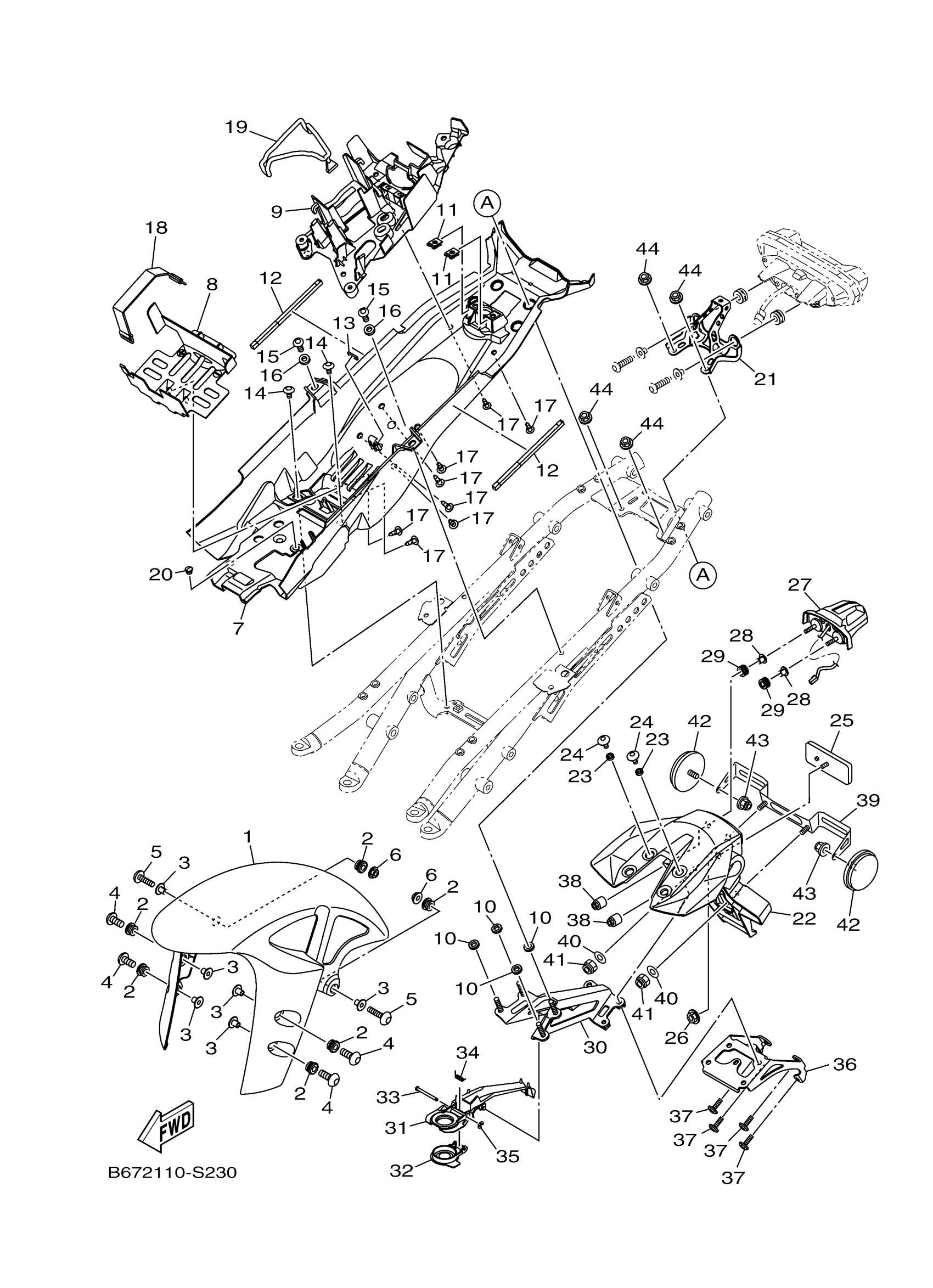

Yamaha FZ10HGY (FZ10) B6720 2017 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

14B-21511-00-P9

$205.99

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06159-00

$8.49

4

BOLT

90111-06043-00

$4.46

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE

95702-06500-00

$2.39

7

BOX, BATTERY 1

B67-8212B-00-00

Unavailable

8

BOX, BATTERY 2

B67-8212C-00-00

Unavailable

9

PLATE 1

B67-2162G-01-00

Unavailable

10

SPACER(2GV)

90560-08326-00

Unavailable

11

NUT, SPRING(4ES)

90183-06069-00

Unavailable

12

DAMPER 3

1B7-2834E-00-00

Unavailable

13

DAMPER, PLATE

90520-01001-00

$8.49

14

BOLT

90109-06201-00

$5.60

15

RIVET(4PH)

90269-07077-00

$8.49

16

WASHER PLATE 122217250000

90202-07015-00

Unavailable

17

RIVET

90269-06008-00

Unavailable

18

BAND, BATTERY

133-82131-00-00

Unavailable

19

BAND, TOOL

3YX-21376-00-00

Unavailable

20

PLUG 288833190000

90338-07043-00

Unavailable

21

BRACKET, TAILLIGHT

B67-2117E-00-00

Unavailable

22

GUARD, MUD

1RC-21629-01-00

Unavailable

23

COLLAR

90387-06106-00

Unavailable

24

BOLT

90111-06061-00

Unavailable

25

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

26

NUT, S/L FLANGE

95607-05200-00

Unavailable

27

LICENCE LIGHT UNIT ASSY

B67-84745-00-00

Unavailable

28

COLLAR

90387-05042-00

Unavailable

29

GROMMET

90480-11009-00

Unavailable

30

STAY 1

B67-2164F-00-00

Unavailable

31

COVER, REAR FENDER

B67-2163E-01-00

Unavailable

32

CAP, ROTOR

1RC-2465B-01-00

Unavailable

33

PIN

90249-03002-00

Unavailable

34

SPRING, TORSION

90508-09007-00

Unavailable

35

CIRCLIP (604)

93430-02001-00

Unavailable

36

STAY, PLATE

1RC-21682-00-00

Unavailable

37

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

38

WEIGHT

1RC-2622H-00-00

Unavailable

39

BRACKET, LICENSE

1RC-84751-00-00

Unavailable

40

WASHER, PLAIN (646)

92990-06600-00

Unavailable

41

NUT, SELF-LOCKING

95617-06100-00

Unavailable

42

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

43

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

44

NUT, U FLANGE

95604-06200-00

Unavailable
