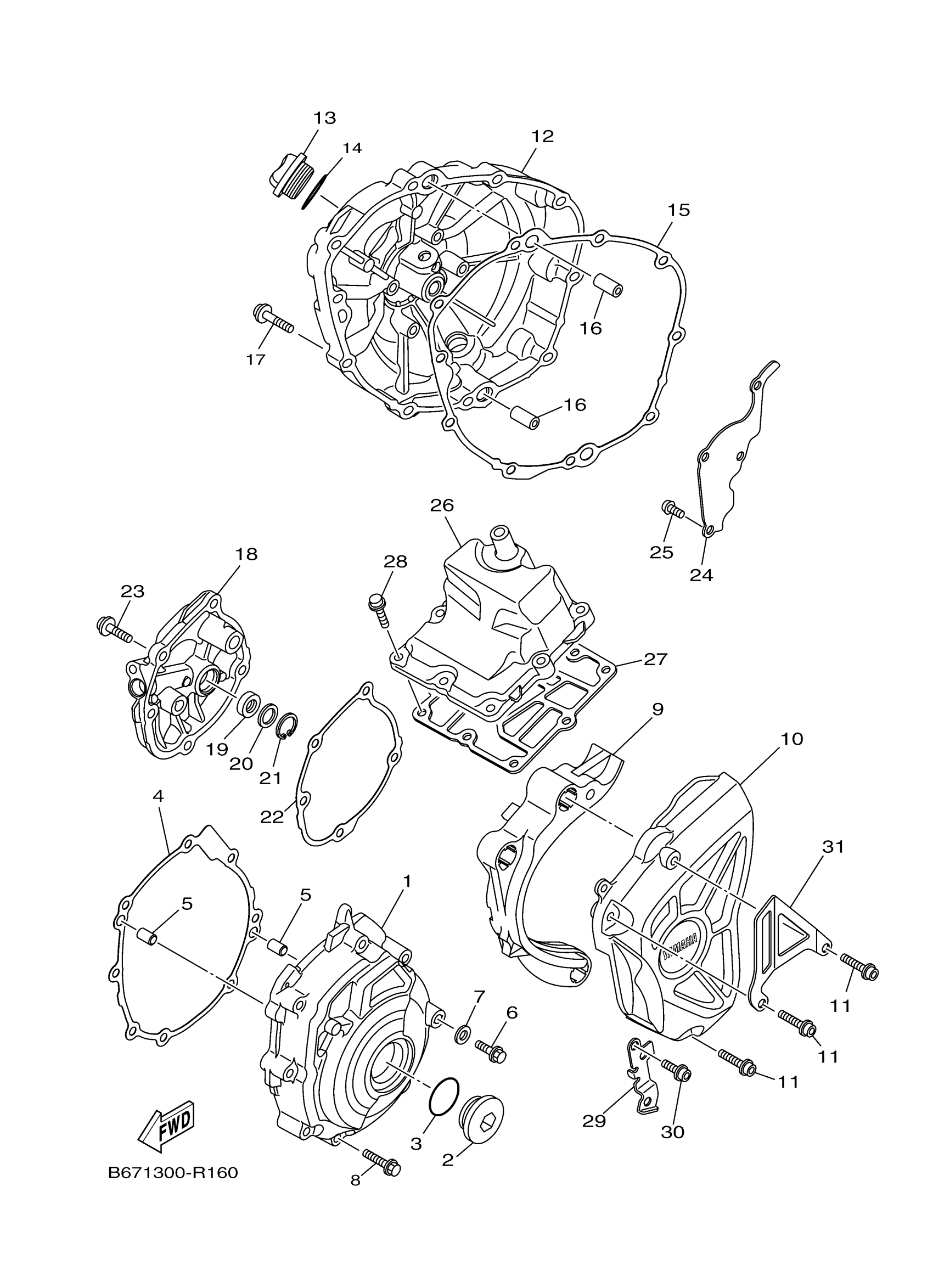

Yamaha FZ10HGY (FZ10) B6720 2017 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

B67-15411-00-00

$150.99

2

PLUG, STRAIGHT SCREW

90340-32010-00

$43.99

3

O-RING (341)

93210-32172-00

$7.49

4

GASKET, CRANKCASE

2CR-15451-00-00

$16.49

5

PIN, DOWEL

99530-08012-00

Unavailable

6

BOLT, BUTTON

92014-08016-00

$8.49

7

. GASKET

90430-08143-00

Unavailable

8

BOLT, HEXAGON SOCKET HEAD

90110-06403-00

$3.50

9

GUIDE, INLET

2CR-15377-10-00

$43.99

10

COVER, CHAIN CASE

2CR-15418-00-00

$25.99

11

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

12

COVER, CRANKCASE 2

B67-15421-00-00

Unavailable

13

PLUG, OIL

2CR-15363-01-00

$13.49

14

O-RING (25G)

93210-29574-00

$7.49

15

GASKET, CRANKCASE

2CR-15461-00-00

$24.99

16

PIN, DOWEL(72M)

93610-20189-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

Unavailable

18

COVER, OIL PUMP

B67-15416-01-00

Unavailable

19

OIL SEAL

93101-10004-00

Unavailable

20

WASHER PLATE 164185720000

90201-12166-00

Unavailable

21

CIRCLIP

99009-19500-00

Unavailable

22

GASKET, OIL PUMP C

2CR-15456-00-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable

24

PLATE, BREATHER

2CR-11165-00-00

Unavailable

25

SCREW

90149-06156-00

Unavailable

26

COVER

2CR-15413-00-00

Unavailable

27

GASKET, CRANKCASE

2CR-15462-00-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

29

HOLDER

B67-15118-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

31

HOLDER

B67-15128-00-00

Unavailable
