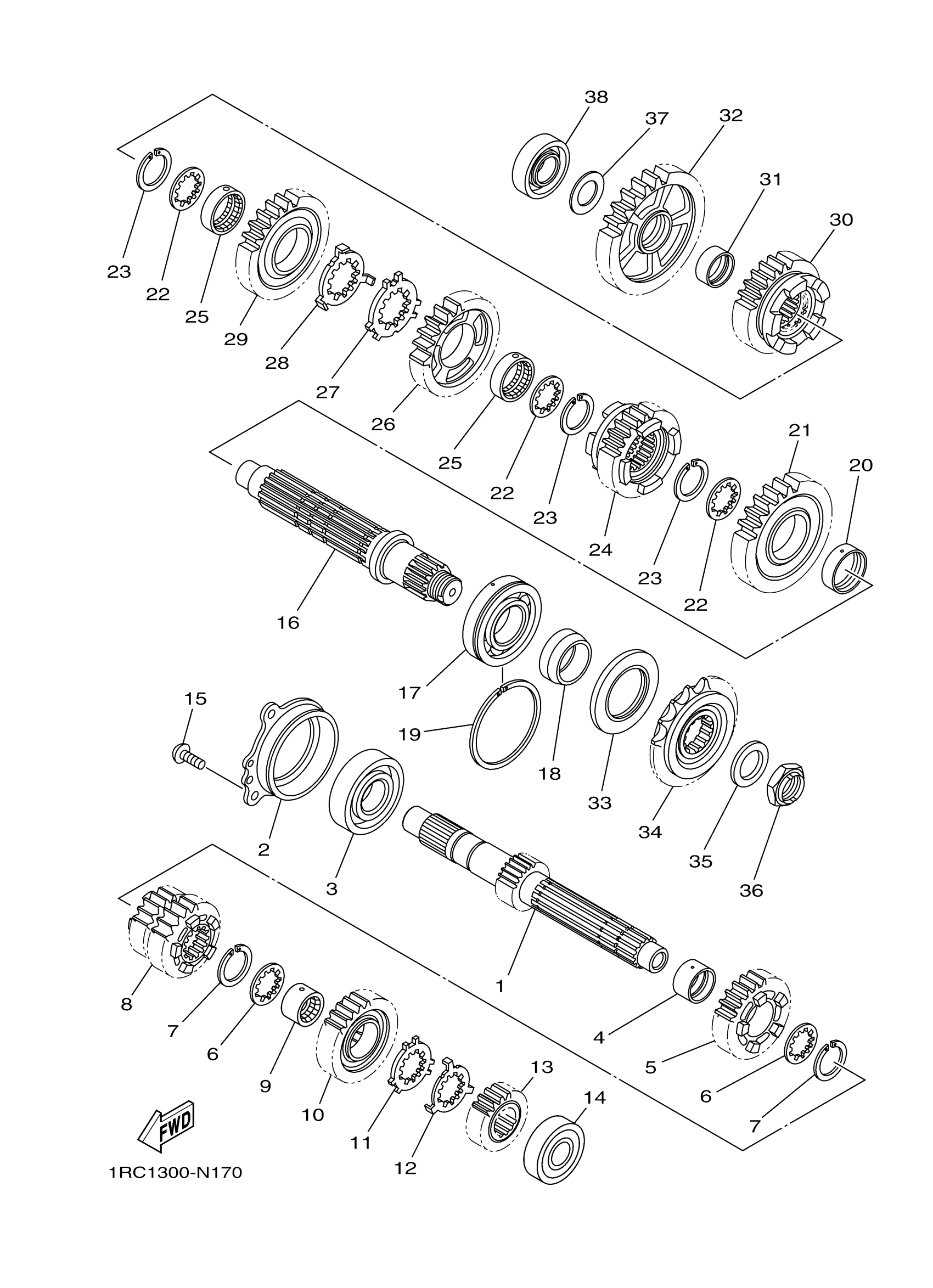

Yamaha FZ09HW (FZ09) BS2300 2017 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (15T)

1RC-17411-00-00

Unavailable

2

HOUSING, BEARING 1

1RC-15163-00-00

$105.99

3

BEARING(3RR)

93306-30560-00

Unavailable

4

COLLAR

90387-25030-00

Unavailable

5

GEAR, 5TH PINION (21T)

1RC-17151-00-00

$86.99

6

WASHER(3VD)

90209-21332-00

$7.49

7

CIRCLIP

93440-25186-00

$7.49

8

GEAR, 3RD PINION (21T/21T)

1RC-17131-00-00

$206.99

9

COLLAR

90387-21003-00

Unavailable

10

GEAR, 6TH PINION (27T)

1RC-17161-00-00

Unavailable

11

WASHER

90209-22352-00

$20.99

12

WASHER

90209-21351-00

$12.49

13

GEAR, 2ND PINION (19T)

1RC-17121-00-00

Unavailable

14

BEARING(3LD)

93306-20464-00

Unavailable

15

SCREW

90149-06081-00

$8.49

16

AXLE, DRIVE

1RC-17421-00-00

Unavailable

17

BEARING

93306-20663-00

Unavailable

18

COLLAR

90387-30012-00

Unavailable

19

CIRCLIP

93440-64199-00

Unavailable

20

COLLAR

90387-31003-00

Unavailable

21

GEAR, 2ND WHEEL

2PP-17221-00-00

Unavailable

22

WASHER

90209-28008-00

Unavailable

23

CIRCLIP

93440-31187-00

Unavailable

24

GEAR, 6TH WHEEL

2PP-17261-00-00

Unavailable

25

COLLAR

90387-28004-00

Unavailable

26

GEAR, 4TH WHEEL (29T)

1RC-17241-00-00

Unavailable

27

WASHER, CLAW

90214-29002-00

Unavailable

28

WASHER, CLAW

90214-28002-00

Unavailable

29

GEAR, 3RD WHEEL (34T)

1RC-17231-00-00

Unavailable

30

GEAR, 5TH WHEEL

1RC-17251-10-00

Unavailable

31

COLLAR

90387-25008-00

Unavailable

32

GEAR, 1ST WHEEL (40T)

1RC-17211-00-00

Unavailable

33

OIL SEAL

93102-40030-00

Unavailable

34

SPROCKET, DRIVE (16T)

5PS-17460-00-00

Unavailable

35

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

36

NUT

90179-22018-00

Unavailable

37

WASHER, PLATE

90201-20008-00

Unavailable

38

BEARING(3LD)

93306-20464-00

Unavailable
