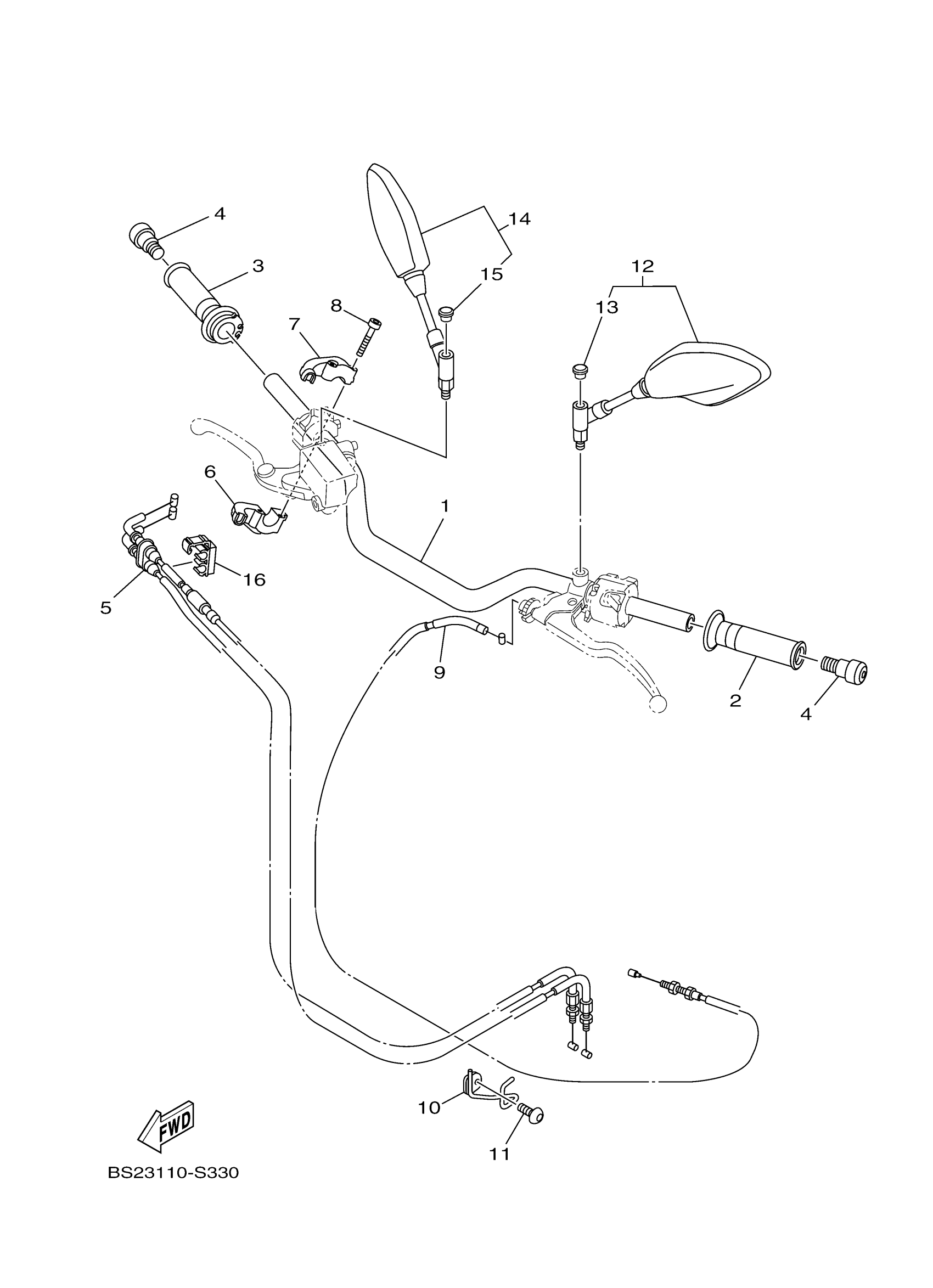

Yamaha FZ09HW (FZ09) BS2300 2017 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

1RC-26111-00-00

$202.28

2

GRIP

4YR-26241-03-00

$8.66

3

GRIP ASSY

4YR-26240-03-00

$23.62

4

END, GRIP

5GJ-26246-00-00

$21.94

5

THROTTLE CABLE ASSY

1RC-26302-00-00

$42.23

6

CAP, GRIP UPPER

4KG-26281-00-00

$24.32

7

CAP, GRIP UNDER

3XW-26282-01-00

$25.18

8

BOLT,SOCKET

91317-05035-00

$5.81

9

CABLE, CLUTCH

1RC-26335-01-00

$41.16

10

HOLDER

BS2-23857-00-00

Unavailable

11

BOLT, BUTTON HEAD

92017-06010-00

$2.86

12

REAR VIEW MIRROR ASSY (LEFT)

1RC-26280-09-00

Unavailable

13

CAP

23P-26133-00-00

$4.34

14

REAR VIEW MIRROR ASSY (RIGHT)

1RC-26290-09-00

Unavailable

15

CAP

23P-26133-00-00

$4.34

16

CLAMP,WIRE

39P-2627E-00-00

Unavailable
