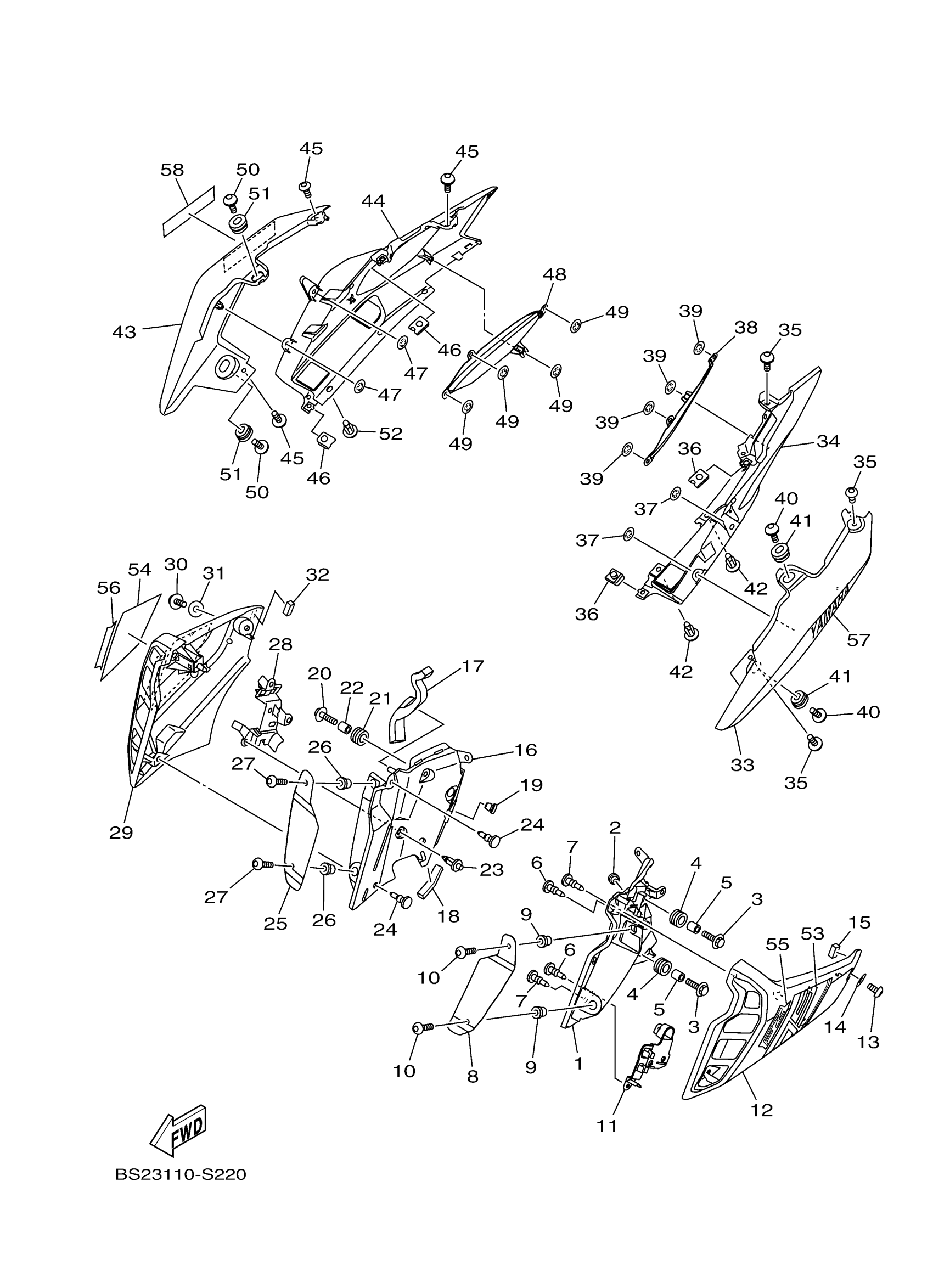

Yamaha FZ09HW (FZ09) BS2300 2017 SIDE COVER Diagram

#

Description
Price

1

STAY, SIDE COVER 1

BS2-2172E-00-00

$71.99

2

PLUG(1NL)

90338-07180-00

$7.49

3

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

4

GROMMET

90480-14003-00

$8.49

5

COLLAR

90387-06057-00

$8.49

6

RIVET

90269-06008-00

$9.49

7

RIVET

90269-06001-00

$5.60

8

GRILL, AIR INTAKE 1

BS2-2837N-00-00

$18.99

9

NUT(1WT)

90179-06520-00

$8.49

10

BOLT,HEX. SOCKET BUTTON

90111-06146-00

$2.17

11

HOLDER 1

BS2-8336T-00-00

$8.49

12

SCOOP, AIR 1

BS2-2137W-00-P1

$96.99

13

BOLT

90111-05002-00

$7.49

14

WASHER, PLATE(1KT)

90202-05180-00

$10.49

15

DAMPER

1RC-21747-00-00

$3.28

16

STAY, SIDE COVER 2

BS2-2174E-00-00

Unavailable

17

DAMPER, PLATE

90520-10022-00

Unavailable

18

DAMPER, PLATE

90520-10003-00

Unavailable

19

PLUG(1NL)

90338-07180-00

$7.49

20

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

21

GROMMET

90480-14003-00

$8.49

22

COLLAR

90387-06057-00

$8.49

23

RIVET

90269-06008-00

$9.49

24

RIVET

90269-06001-00

$5.60

25

GRILL, AIR INTAKE 2

BS2-2837R-00-00

Unavailable

26

NUT(1WT)

90179-06520-00

$8.49

27

BOLT,HEX. SOCKET BUTTON

90111-06146-00

$2.17

28

HOLDER

BS2-8336U-00-00

Unavailable

29

SCOOP, AIR 2

BS2-2137X-00-P1

Unavailable

30

BOLT

90111-05002-00

$7.49

31

WASHER, PLATE(1KT)

90202-05180-00

$10.49

32

DAMPER

1RC-21747-00-00

$3.28

33

COVER, SIDE 1

BS2-21711-00-P4

Unavailable

34

COVER, SIDE 3

BS2-21731-00-00

Unavailable

35

BOLT

90111-05002-00

$7.49

36

NUT, SPRING

90183-050A6-00

Unavailable

37

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

38

GRILLE, SIDE COVER 1

BS2-2171Y-00-00

Unavailable

39

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

40

BOLT

90109-06037-00

Unavailable

41

GROMMET(4BH)

90480-01559-00

Unavailable

42

RIVET

90269-07007-00

Unavailable

43

COVER, SIDE 2

BS2-21721-00-P4

Unavailable

44

COVER, SIDE 4

BS2-21741-00-00

Unavailable

45

BOLT

90111-05002-00

$7.49

46

NUT, SPRING

90183-050A6-00

Unavailable

47

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

48

GRILLE, SIDE COVER 2

BS2-2172Y-00-00

Unavailable

49

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

50

BOLT

90109-06037-00

Unavailable

51

GROMMET(4BH)

90480-01559-00

Unavailable

52

RIVET

90269-07007-00

Unavailable

53

GRAPHIC 1

BS2-2173E-20-00

Unavailable

54

GRAPHIC 2

BS2-2173F-20-00

Unavailable

55

EMBLEM

1RC-21737-50-00

Unavailable

56

EMBLEM

1RC-21737-50-00

Unavailable

57

EMBLEM, YAMAHA

99244-00080-00

Unavailable

58

EMBLEM, YAMAHA

99244-00080-00

Unavailable
