Description

Price

1

DOUBLE SEAT ASSY

BS2-24730-01-00

$265.99

2

STOPPER, MAIN STAND

4GL-27114-00-00

Unavailable

3

PLUG(7Y6)

90338-07157-00

$7.49

4

STOPPER, MAIN STAND

5UY-27114-00-00

$2.18

5

SEAT LOCK ASSY

B90-24780-00-00

$30.99

6

NUT, FLANGE

95702-06500-00

$2.39

7

BRACKET, SEAT LOCK

1RC-2478X-00-00

$19.99

8

BOLT, FLANGE

95022-06016-00

$3.62

9

ROTOR SET

1RC-W2470-00-00

$73.99

10

BOLT, FLANGE

95022-06014-00

$3.14

11

TOOL KIT

1RC-28100-00-00

Unavailable

12

SPANNER, SPECIAL

1RC-28135-00-00

$10.99

13

GRIP, DRIVER

2H7-28151-00-00

$6.99

14

DRIVER

2GV-28152-00-00

$5.49

15

WRENCH, HEXAGON 8

23P-28164-00-00

$3.38

16

POUCH

4KG-28186-11-00

Unavailable

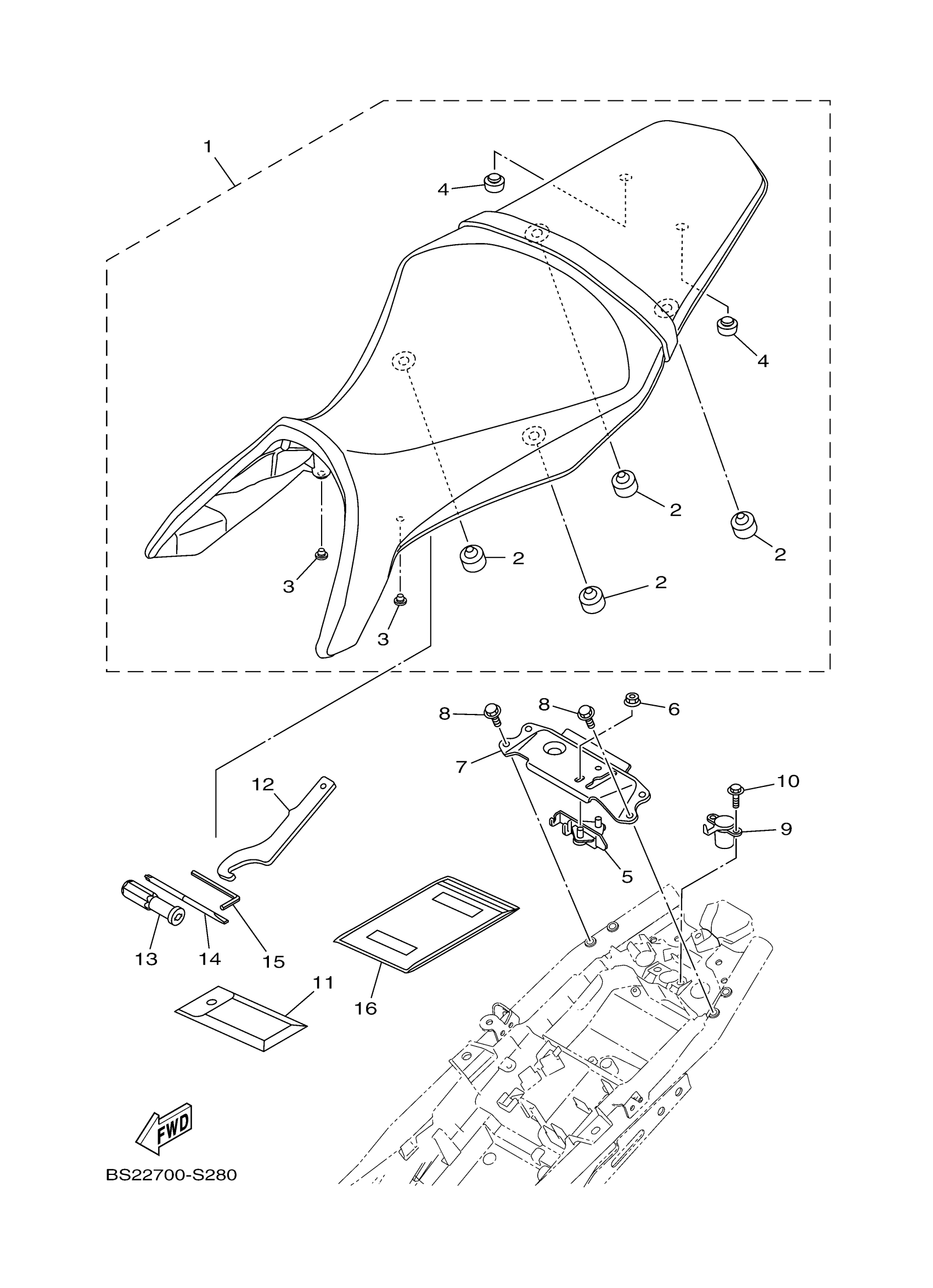

Yamaha FZ09HW (FZ09) BS2300 2017 SEAT Diagram

DOUBLE SEAT ASSY

STOPPER, MAIN STAND

PLUG(7Y6)

STOPPER, MAIN STAND

SEAT LOCK ASSY

NUT, FLANGE

BRACKET, SEAT LOCK

BOLT, FLANGE

ROTOR SET

BOLT, FLANGE

TOOL KIT

SPANNER, SPECIAL

GRIP, DRIVER

DRIVER

WRENCH, HEXAGON 8

POUCH
