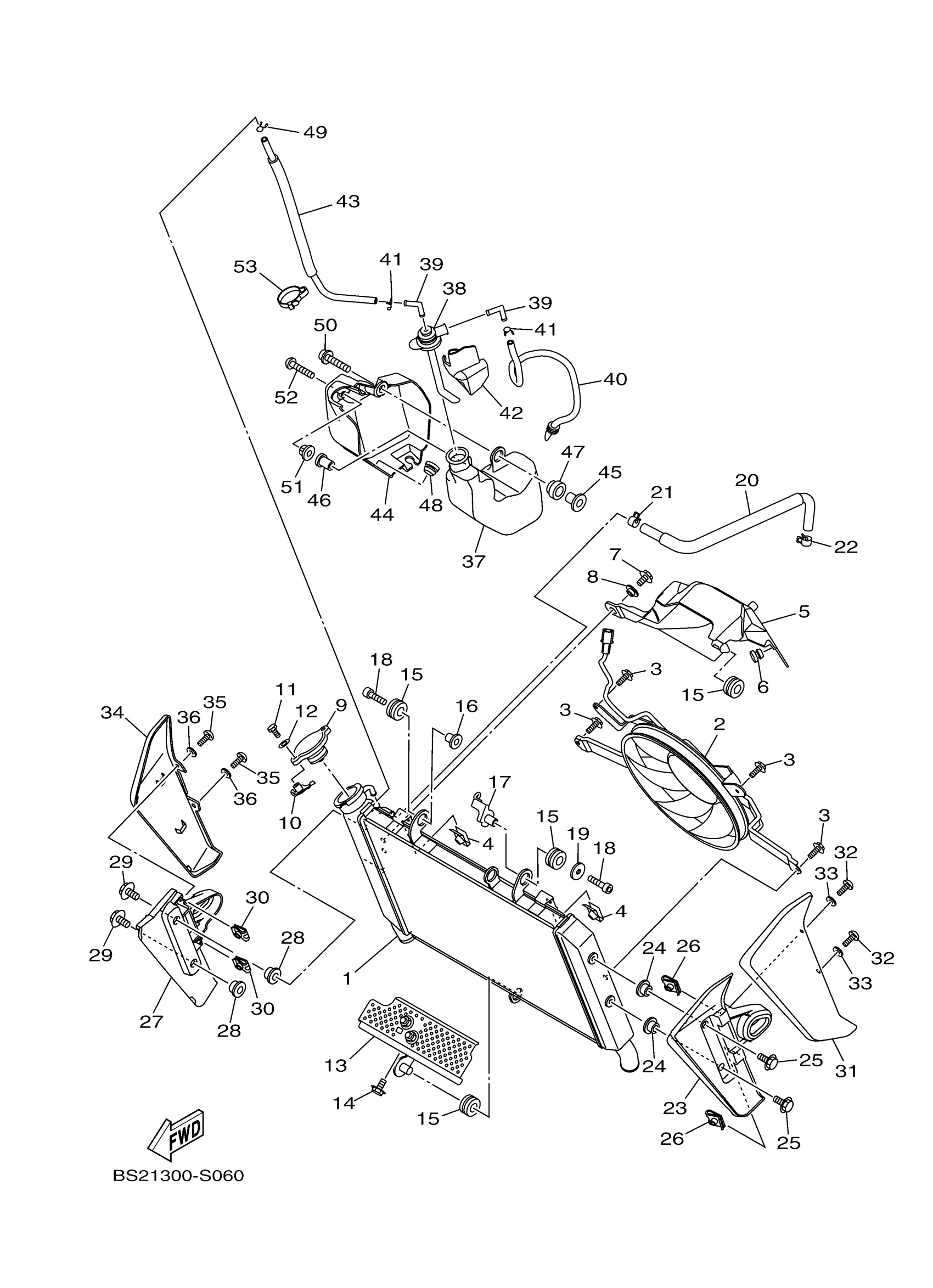

Yamaha FZ09HW (FZ09) BS2300 2017 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR COMP

2PP-12461-00-00

$352.99

2

BLOWER ASSY

1RC-12405-02-00

Unavailable

3

BOLT, BLOWER HOLDING

3D8-12675-00-00

$7.99

4

PLATE

1AA-12535-00-00

$14.49

5

COVER, RADIATOR

1RC-12467-00-00

$18.49

6

PLUG(7Y6)

90338-07157-00

$7.49

7

BOLT, FLANGE

95812-06014-00

$5.60

8

COLLAR (3L1)

90387-07717-00

$8.49

9

CAP, RADIATOR

4FL-12462-00-00

$62.99

10

STOPPER

5FC-12437-00-00

$14.49

11

BOLT(4GV)

97017-05012-00

$8.49

12

WASHER(1RW)

92907-05600-00

$3.78

13

STAY 1

BS2-12637-00-00

$41.99

14

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$8.49

15

GROMMET (29L)

90480-15363-00

$8.49

16

COLLAR

90387-06158-00

Unavailable

17

GUIDE, CABLE 2

1RC-26132-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

19

WASHER, PLATE

90201-06033-00

Unavailable

20

HOSE 1

1RC-1243A-00-00

Unavailable

21

CLIP (3G0)

90467-10039-00

Unavailable

22

CLIP (3G0)

90467-10039-00

Unavailable

23

BRACKET 1

BS2-2175T-00-00

Unavailable

24

COLLAR

90387-06170-00

Unavailable

25

BOLT, WITH WASHER

90119-06137-00

Unavailable

26

NUT, SPRING

90183-050A6-00

Unavailable

27

BRACKET 2

BS2-2175U-00-00

Unavailable

28

COLLAR

90387-06170-00

Unavailable

29

BOLT, WITH WASHER

90119-06137-00

Unavailable

30

NUT, SPRING

90183-050A6-00

Unavailable

31

COVER, SIDE 5

BS2-2171E-00-P1

Unavailable

32

BOLT

90111-05002-00

Unavailable

33

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

34

COVER, SIDE 6

BS2-2171X-00-P1

Unavailable

35

BOLT

90111-05002-00

Unavailable

36

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

37

TANK, RECOVERY

1RC-21871-00-00

Unavailable

38

CAP

1RC-21875-01-00

Unavailable

39

ELBOW

1RC-21828-00-00

Unavailable

40

PIPE, BREATHER

1RC-21826-00-00

Unavailable

41

CLIP (16G)

90467-08021-00

Unavailable

42

PROTECTOR 1

1RC-22825-00-00

Unavailable

43

PIPE 1

1RC-21816-00-00

Unavailable

44

COVER

1RC-2172W-00-00

Unavailable

45

COLLAR

90387-06285-00

Unavailable

46

NUT(1KT)

90179-05523-00

Unavailable

47

COLLAR

1RC-21749-00-00

Unavailable

48

GROMMET (420)

90480-14153-00

Unavailable

49

CLIP (16G)

90467-08021-00

Unavailable

50

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

51

COLLAR

1RC-21748-00-00

Unavailable

52

BOLT, BUTTON HEAD

92012-05030-00

Unavailable

53

CLAMP(6U0)

90464-07M40-00

Unavailable
