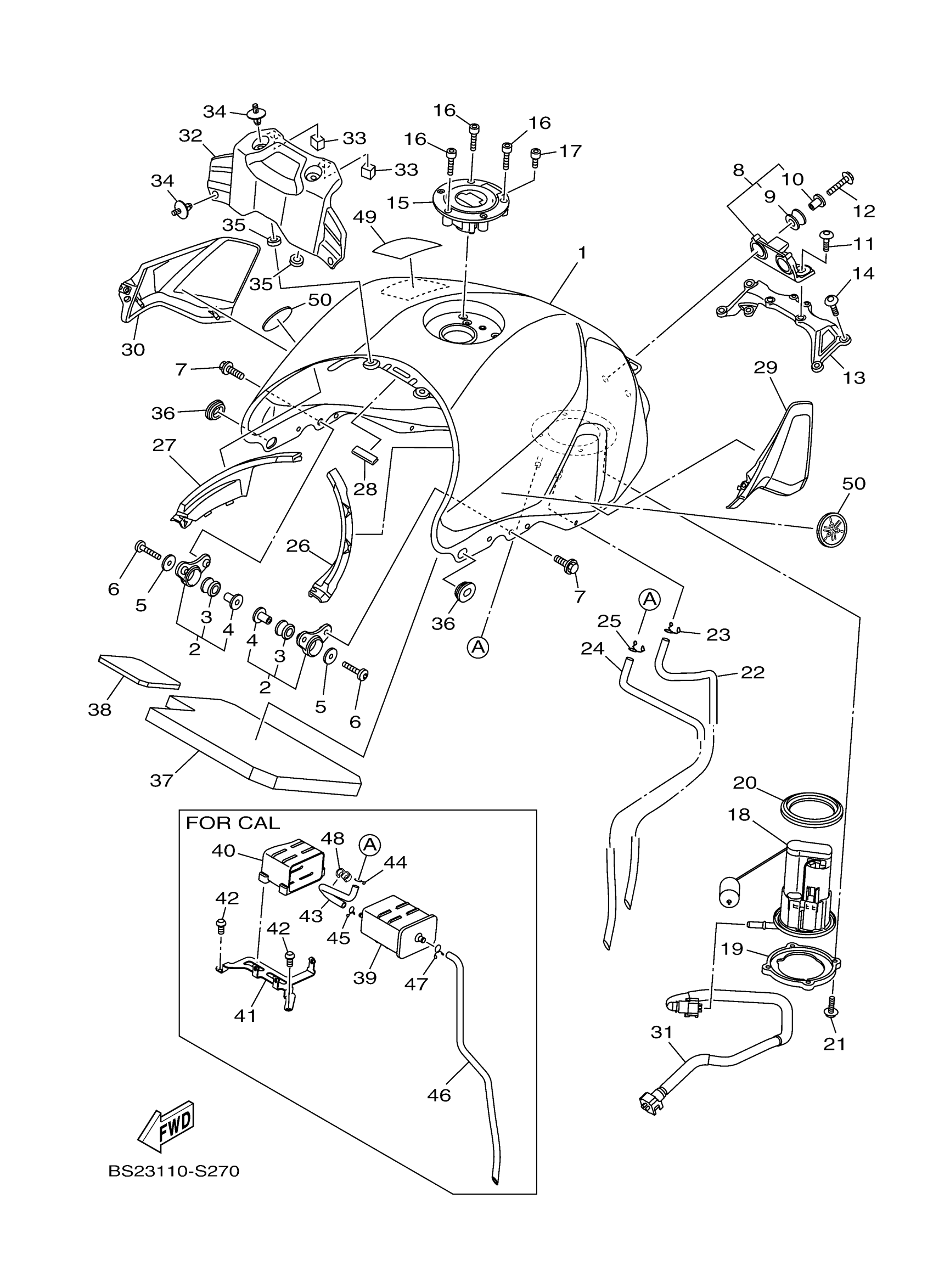

Yamaha FZ09HW (FZ09) BS2300 2017 FUEL TANK Diagram
#
1
FUEL TANK COMP.
1RC-YK241-01-P7
Unavailable
2
TANK BRACKET ASSY
23P-24104-01-00
Unavailable
8
TANK BRACKET ASSY
1RC-24104-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
17
BOLT
91312-05010-00
Unavailable
18
FUEL PUMP COMP
1RC-13907-10-00
Unavailable
19
BRACKET, FUEL PUMP
1RC-24491-00-00
Unavailable
20
O-RING
1RC-24486-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
22
PIPE 5
1RC-24315-00-00
Unavailable
23
CLIP
90467-090A2-00
Unavailable
26
MOLE, FUEL TANK 1
1RC-2418B-01-00
Unavailable
27
MOLE, FUEL TANK 2
1RC-2419B-01-00
Unavailable
28
MOLE 3
2S3-28347-00-00
Unavailable
29
TANK SIDE COVER ASSY 1
1RC-24106-01-00
Unavailable
30
TANK SIDE COVER ASSY 2
1RC-24108-01-00
Unavailable
31
PIPE, FUEL 1
1RC-13971-11-00
Unavailable
32
COVER, TANK
1RC-241B1-00-00
Unavailable
33
DAMPER, PLATE
90520-15012-00
Unavailable
34
RIVET(4PH)
90269-07077-00
Unavailable
35
DAMPER
5SL-84753-00-00
Unavailable
36
GROMMET(4DN)
90480-01558-00
Unavailable
37
DAMPER, PLATE 2
2PP-2414J-00-00
Unavailable
38
PROTECTOR, FUEL TANK
BS2-24141-00-00
Unavailable
39
CANISTER ASSY
2CR-24170-00-00
Unavailable
40
DAMPER, LOCATING 3
B90-24183-00-00
Unavailable
41
BRACKET, CANISTOR
B90-2419F-00-00
Unavailable
42
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
43
PIPE 3
B90-24313-10-00
Unavailable
44
CLIP
90467-090A2-00
Unavailable
45
CLIP (8A1)
90467-09026-00
Unavailable
46
PIPE 10
BS2-24321-00-00
Unavailable
47
CLIP
90467-100A1-00
Unavailable
48
CLAMP(6M7)
90464-09M31-00
Unavailable
49
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
50
EMBLEM
1RC-2413B-02-00
Unavailable
