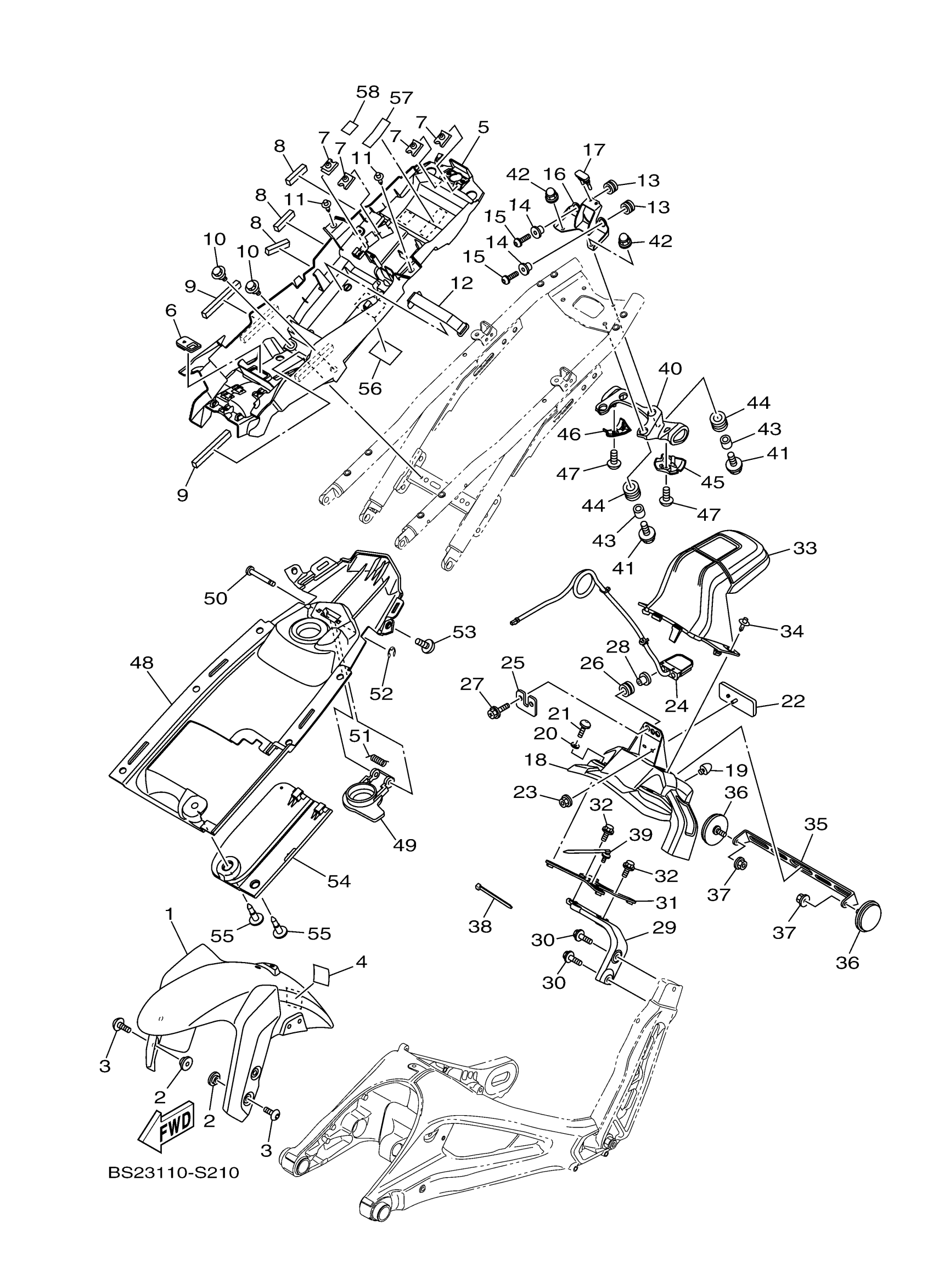

Yamaha FZ09HW (FZ09) BS2300 2017 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1RC-21511-00-PD

Unavailable

2

COLLAR

90387-06153-00

$7.49

3

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

4

SEAL

5UY-21269-00-00

$6.99

5

BOX, BATTERY 1

BS2-8212B-00-00

Unavailable

6

PLUG, BLIND

2DR-26199-00-00

Unavailable

7

NUT, SPRING(4ES)

90183-06069-00

Unavailable

8

DAMPER

5PS-28372-00-00

$0.57

9

DAMPER

32D-84553-00-00

$6.99

10

BOLT

90109-06202-00

$7.49

11

RIVET

90269-07007-00

$4.08

12

BAND, BATTERY

1RC-82137-00-00

$6.99

13

GROMMET (431)

90480-14052-00

$5.60

14

COLLAR

90387-06288-00

$3.28

15

BOLT, BUTTON HEAD

92012-06020-00

$8.49

16

BRACKET, TAILLIGHT

BS2-2117E-00-00

Unavailable

17

STOPPER, UPPER MOU

682-44532-01-00

Unavailable

18

GUARD, MUD

BS2-21629-01-00

Unavailable

19

DAMPER 2

2MG-21639-00-00

Unavailable

20

COLLAR

90387-06106-00

Unavailable

21

BOLT

90111-06061-00

Unavailable

22

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

23

NUT, S/L FLANGE

95607-05200-00

Unavailable

24

LICENCE LIGHT UNIT ASSY

BS2-84745-00-00

Unavailable

25

PLATE, LICENSE

BS2-21681-00-00

Unavailable

26

GROMMET

90480-11009-00

Unavailable

27

SCREW, WITH WASHER

90159-05035-00

Unavailable

28

COLLAR

90387-05003-00

Unavailable

29

STAY, FENDER 1

BS2-21613-00-00

Unavailable

30

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

31

STAY, FENDER 2

BS2-21614-00-00

Unavailable

32

BOLT, FLANGE

95812-06014-00

Unavailable

33

COVER, REAR FENDER 1

BS2-2163A-00-00

Unavailable

34

RIVET

90269-06008-00

Unavailable

35

BRACKET, LICENSE

BS2-84751-00-00

Unavailable

36

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

37

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

38

CLAMP

90464-16061-00

Unavailable

39

CLAMP

90464-30011-00

Unavailable

40

STAY, FLASHER 1

BS2-83318-00-00

Unavailable

41

BOLT, FLANGE

90105-06169-00

Unavailable

42

NUT, CROWN

90176-06016-00

Unavailable

43

COLLAR

90387-06260-00

Unavailable

44

GROMMET

90480-14003-00

Unavailable

45

COVER, FLASHER 1

BS2-283D3-00-00

Unavailable

46

COVER, FLASHER 2

BS2-283D4-00-00

Unavailable

47

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

48

COVER, REAR FENDER

BS2-21651-01-00

Unavailable

49

CAP, ROTOR

1RC-2465B-01-00

Unavailable

50

PIN

90249-03002-00

Unavailable

51

SPRING, TORSION

90508-09007-00

Unavailable

52

CIRCLIP (604)

93430-02001-00

Unavailable

53

SCREW, TAPPING

90167-05079-00

Unavailable

54

LID

BS2-2177E-01-00

Unavailable

55

RIVET

90269-07007-00

$4.08

56

LABEL, TIRE

14B-21668-01-00

Unavailable

57

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

58

LABEL, CAUTION

3TB-24877-A1-00

Unavailable
