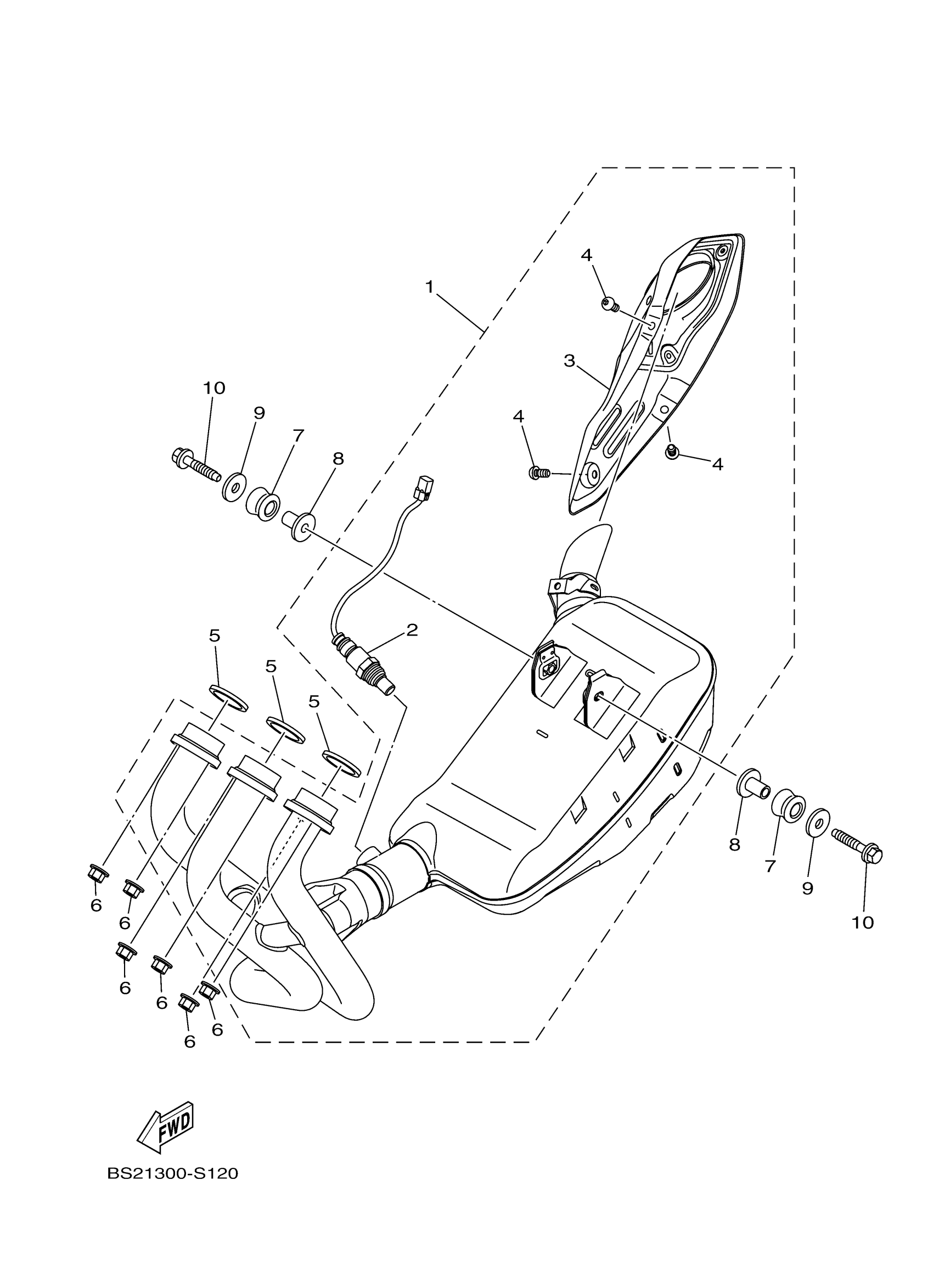

Yamaha FZ09HW (FZ09) BS2300 2017 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSY 1

BS2-14710-00-00

$1,219.99

2

SENSOR, OXYGEN

59C-8592A-00-00

$361.70

3

PROTECTOR ASSY

BS2-14708-00-00

Unavailable

4

BOLT,HEX. SOCKET BUTTON

90111-06164-00

Unavailable

5

GASKET, EXHAUST PIPE

4FM-14613-00-00

$8.69

6

NUT (22U)

90179-08410-00

$4.79

7

DAMPER, MUFFLER

5VY-14747-00-00

$11.48

8

COLLAR

90387-08021-00

$7.94

9

WASHER, PLATE(3DM)

90201-087G2-00

$2.90

10

BOLT

90109-08170-00

$4.81
