Description

Price

1

HANDLEBAR

1RC-26111-00-00

$251.99

2

GRIP

4YR-26241-03-00

$11.99

3

GRIP ASSY

4YR-26240-03-00

$30.99

4

END, GRIP

5GJ-26246-00-00

$28.99

5

THROTTLE CABLE ASSY

1RC-26302-00-00

$51.99

6

CAP, GRIP UPPER

4KG-26281-00-00

$31.99

7

CAP, GRIP UNDER

3XW-26282-01-00

$31.99

8

BOLT,SOCKET

91317-05035-00

$8.49

9

CABLE, CLUTCH

1RC-26335-01-00

$50.99

10

HOLDER

B90-23857-00-00

Unavailable

11

BOLT, BUTTON HEAD

92017-06010-00

$4.82

12

REAR VIEW MIRROR ASSY (LEFT)

1RC-26280-09-00

$61.99

13

CAP

23P-26133-00-00

$6.99

14

REAR VIEW MIRROR ASSY (RIGHT)

1RC-26290-09-00

$61.99

15

CAP

23P-26133-00-00

$6.99

16

CLAMP

90464-16023-00

Unavailable

17

CLAMP

90464-14009-00

Unavailable

18

CLAMP

90464-16001-00

Unavailable

19

CLAMP

90464-05003-00

Unavailable

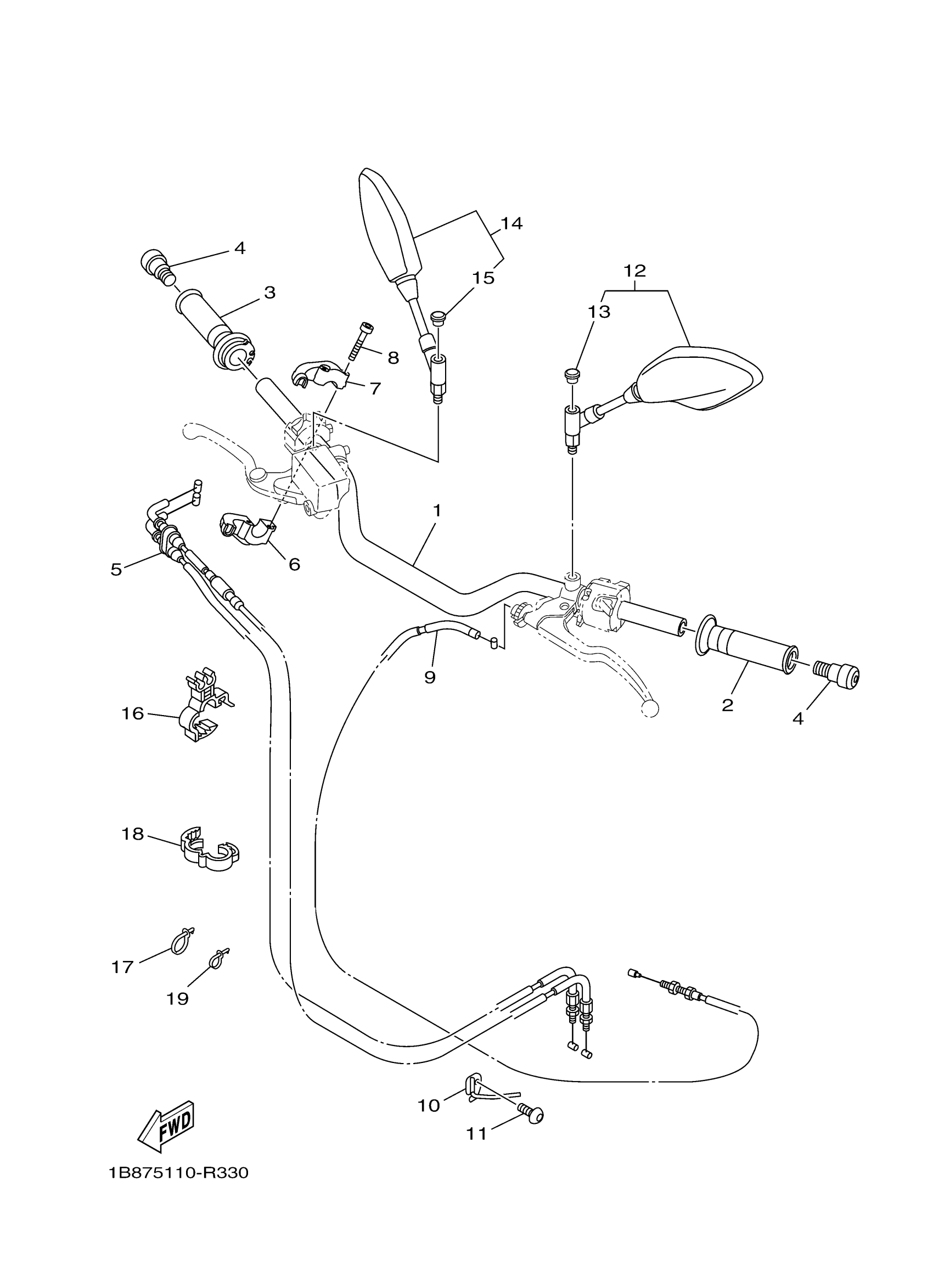

Yamaha FZ09GL (FZ09) B8750 2016 STEERING HANDLE CABLE Diagram

HANDLEBAR

GRIP

GRIP ASSY

END, GRIP

THROTTLE CABLE ASSY

CAP, GRIP UPPER

CAP, GRIP UNDER

BOLT,SOCKET

CABLE, CLUTCH

HOLDER

BOLT, BUTTON HEAD

REAR VIEW MIRROR ASSY (LEFT)

CAP

REAR VIEW MIRROR ASSY (RIGHT)

CAP

CLAMP

CLAMP

CLAMP

CLAMP
