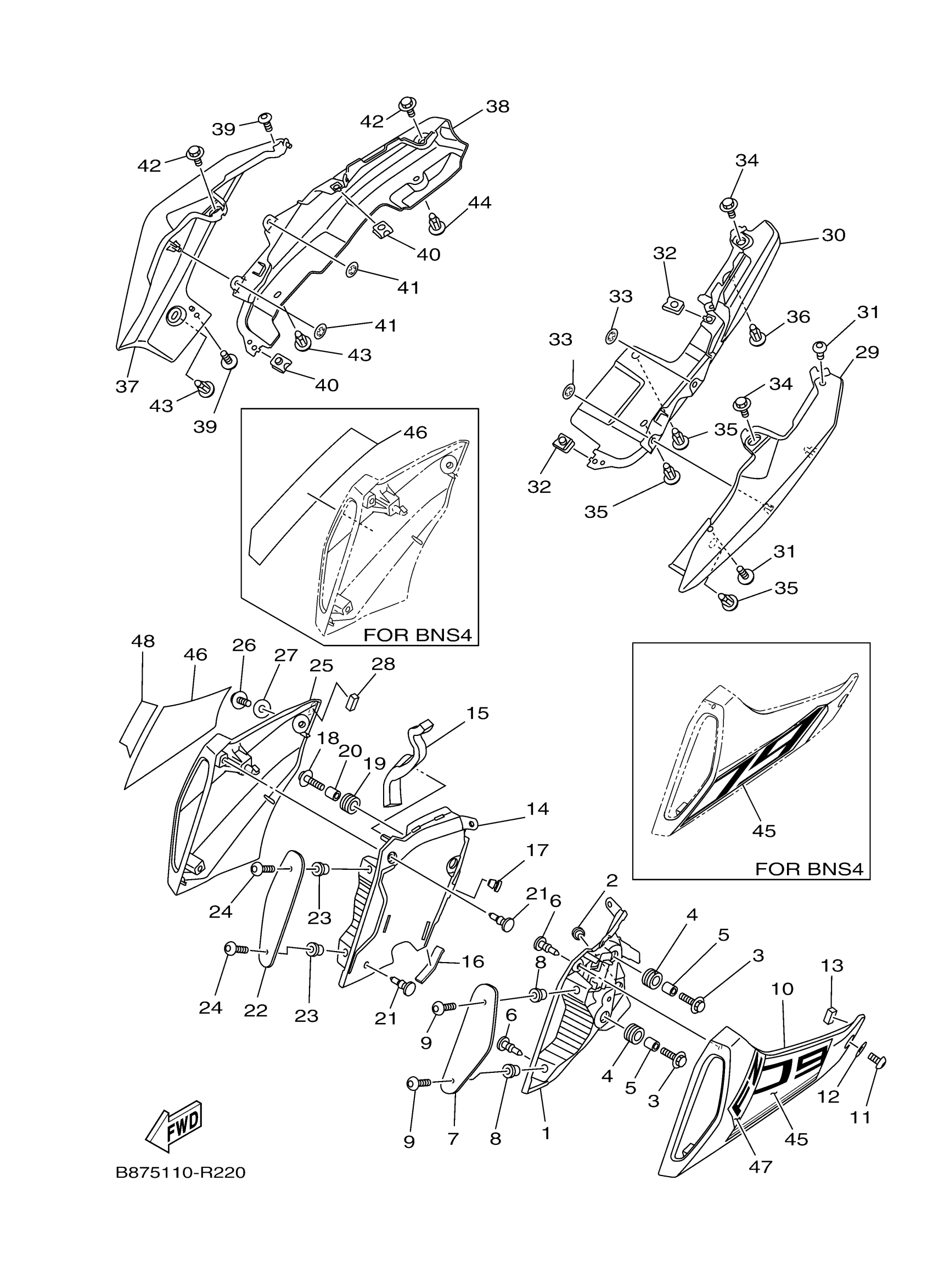

Yamaha FZ09GL (FZ09) B8750 2016 SIDE COVER Diagram

#

Description
Price

1

STAY, SIDE COVER 1

1RC-2172E-00-00

Unavailable

2

PLUG(1NL)

90338-07180-00

$7.49

3

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

4

GROMMET

90480-14003-00

$8.49

5

COLLAR

90387-06057-00

$8.49

6

RIVET

90269-06001-00

$5.60

7

GRILL, AIR INTAKE 1

1RC-2837N-00-00

Unavailable

8

NUT(1KT)

90179-05523-00

$8.49

9

BOLT,HEX. SOCKET BUTTON

90111-05039-00

$4.72

10

SCOOP, AIR 1

1RC-2137W-00-P0

$101.99

11

BOLT

90111-05002-00

$7.49

12

WASHER, PLATE(1KT)

90202-05180-00

$10.49

13

DAMPER

1RC-21747-00-00

$3.28

14

STAY, SIDE COVER 2

1RC-2174E-00-00

Unavailable

15

DAMPER, PLATE

90520-10022-00

$1.28

16

DAMPER, PLATE

90520-10003-00

Unavailable

17

PLUG(1NL)

90338-07180-00

$7.49

18

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

19

GROMMET

90480-14003-00

$8.49

20

COLLAR

90387-06057-00

$8.49

21

RIVET

90269-06001-00

$5.60

22

GRILL, AIR INTAKE 1

1RC-2837N-00-00

Unavailable

23

NUT(1KT)

90179-05523-00

$8.49

24

BOLT,HEX. SOCKET BUTTON

90111-05039-00

$4.72

25

SCOOP, AIR 2

1RC-2137X-00-P0

Unavailable

26

BOLT

90111-05002-00

$7.49

27

WASHER, PLATE(1KT)

90202-05180-00

$10.49

28

DAMPER

1RC-21747-00-00

$3.28

29

COVER, SIDE 1

1RC-21711-00-P5

Unavailable

30

COVER, SIDE 3

1RC-21731-00-00

Unavailable

31

BOLT

90111-05002-00

$7.49

32

NUT, SPRING

90183-050A6-00

Unavailable

33

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

34

BOLT

90109-06174-00

Unavailable

35

RIVET

90269-07007-00

Unavailable

36

RIVET

90269-07014-00

Unavailable

37

COVER, SIDE 2

1RC-21721-00-P5

Unavailable

38

COVER, SIDE 4

1RC-21741-00-00

Unavailable

39

BOLT

90111-05002-00

$7.49

40

NUT, SPRING

90183-050A6-00

Unavailable

41

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

42

BOLT

90109-06174-00

Unavailable

43

RIVET

90269-07007-00

Unavailable

44

RIVET

90269-07014-00

Unavailable

45

GRAPHIC 1

1RC-2173E-30-00

Unavailable

46

GRAPHIC 2

1RC-2173F-30-00

Unavailable

47

EMBLEM

1RC-21737-20-00

Unavailable

48

EMBLEM

1RC-21737-20-00

Unavailable
