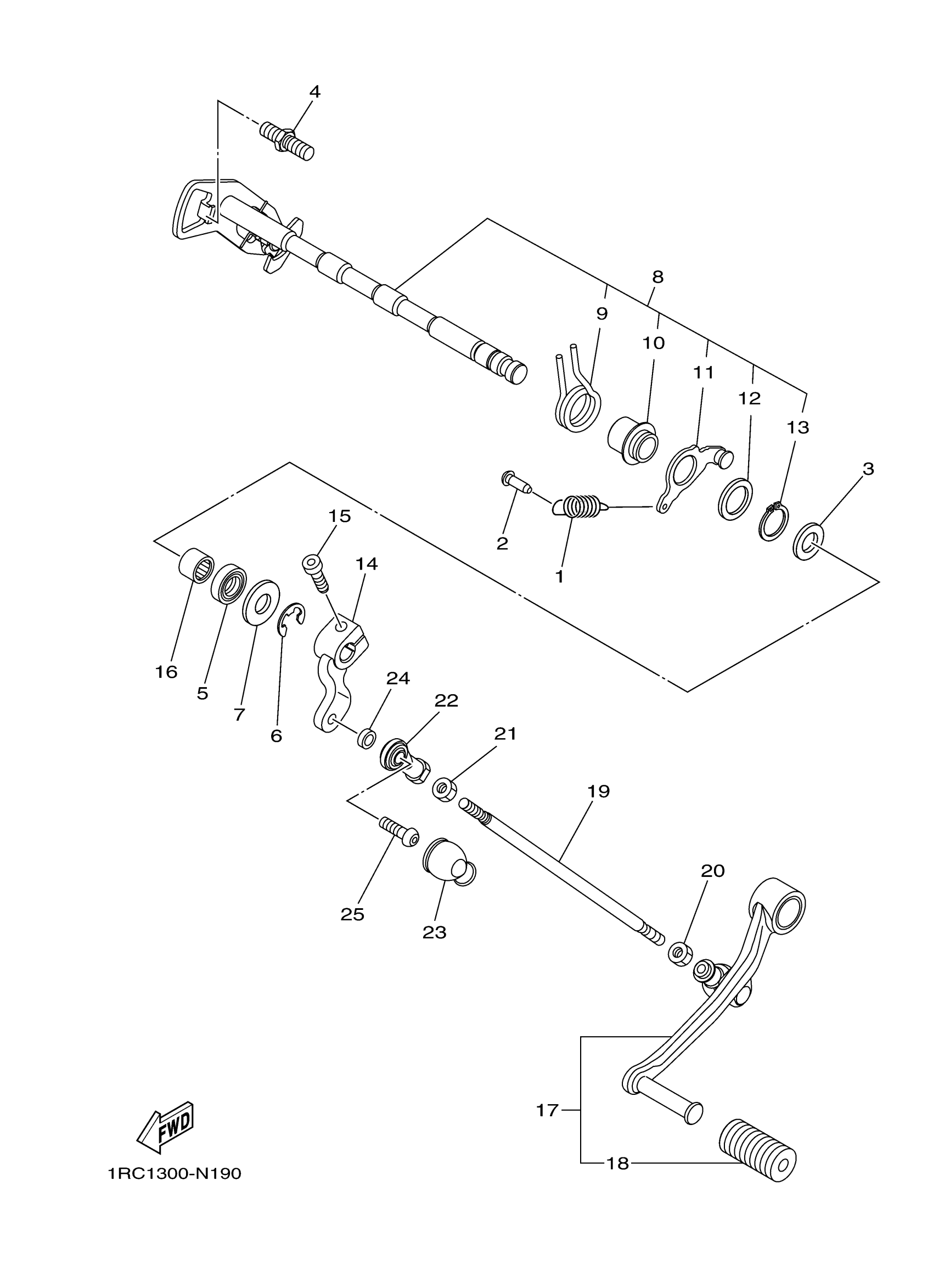

Yamaha FZ09GL (FZ09) B8750 2016 SHIFT SHAFT Diagram

#

Description
Price

1

SPRING, TENSION

90506-18021-00

$8.49

2

HOOK, SPRING

132-16346-00-00

$9.99

3

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

4

STOPPER, SCREW

5VK-18127-00-00

Unavailable

5

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

6

CIRCLIP

99002-10600-00

$8.49

7

WASHER, PLATE (353)

90201-12575-00

$8.49

8

SHIFT SHAFT ASSY

1RC-18101-01-00

$144.99

9

SPRING, TORSION

90508-32141-00

Unavailable

10

. SPACER

2C0-18175-00-00

Unavailable

11

STOPPER LEVER ASSY

1RC-18140-00-00

$28.99

12

WASHER, PLATE (30X)

90201-177G4-00

$9.49

13

CIRCLIP(1EY)

99009-17400-00

$4.73

14

ARM, SHIFT

1RC-18112-00-00

$38.99

15

BOLT,SOCKET HEAD

91314-06020-00

$1.49

16

BEARING

93317-11295-00

Unavailable

17

SHIFT PEDAL ASSY

1RC-18110-00-00

Unavailable

18

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

19

ROD, SHIFT

3VD-18115-00-00

Unavailable

20

NUT (2H9)

90170-06228-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable

22

JOINT, ROD 1

5VX-18116-00-00

Unavailable

23

COVER, DUST

5VX-18154-00-00

Unavailable

24

COLLAR

90387-06106-00

Unavailable

25

BOLT, BUTTON HEAD

92012-06020-00

Unavailable
