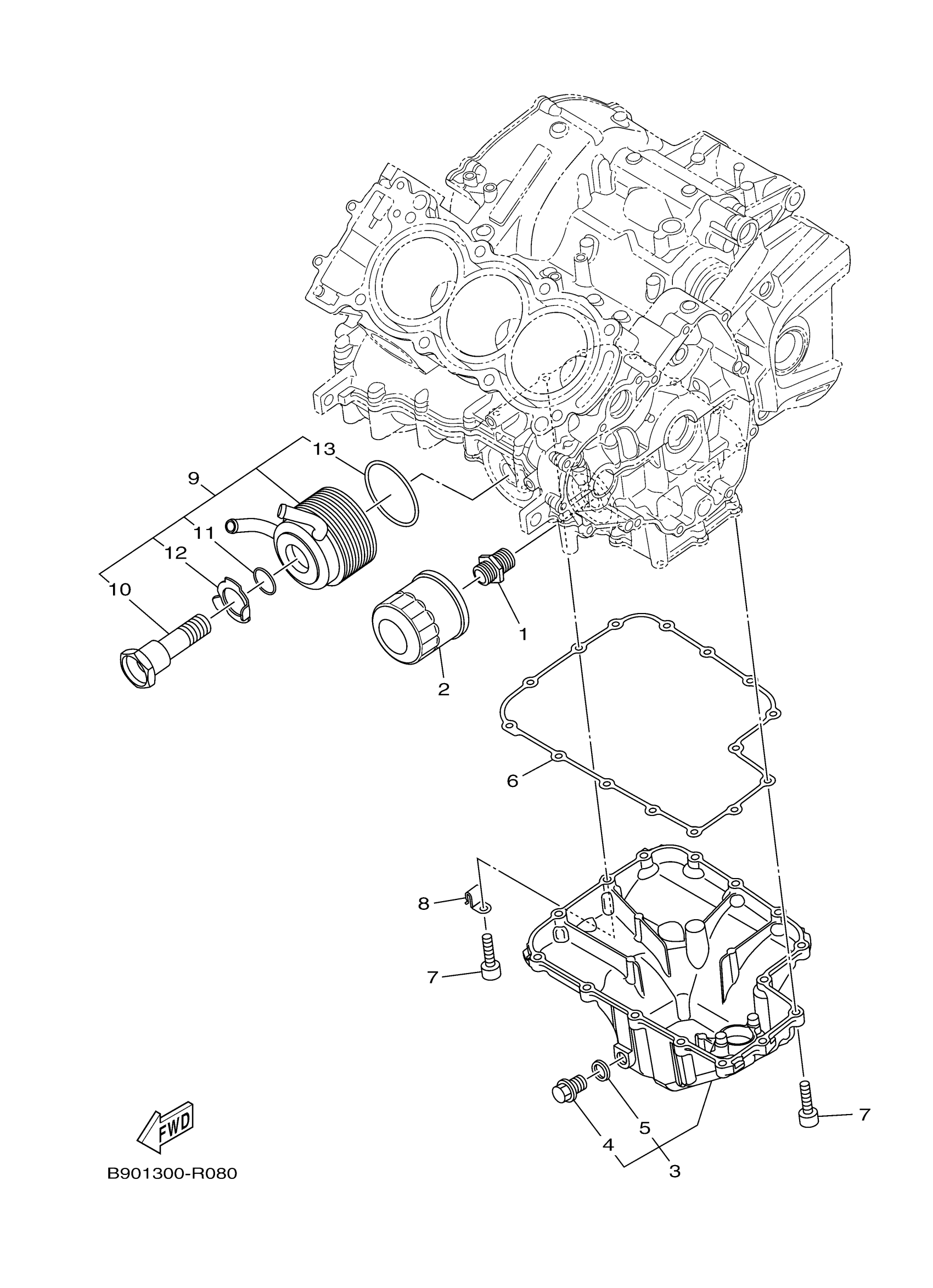

Yamaha FZ09GL (FZ09) B8750 2016 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

90401-20008-00

$23.99

2

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

3

STRAINER COVER ASSY

B56-13400-10-00

$267.99

4

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

5

GASKET

214-11198-01-00

$3.17

6

GASKET, STRAINER COVER

BD5-13414-00-00

Unavailable

7

BOLT,SOCKET

91317-06025-00

$5.60

8

CLAMP

90465-06025-00

Unavailable

9

OIL COOLER ASSY

1RC-13470-00-00

$639.99

10

BOLT, UNION

5PW-12822-00-00

$87.99

11

O-RING

5PW-13473-00-00

$16.49

12

WASHER

5PW-13318-00-00

Unavailable

13

GASKET

5PW-13475-00-00

$40.99
