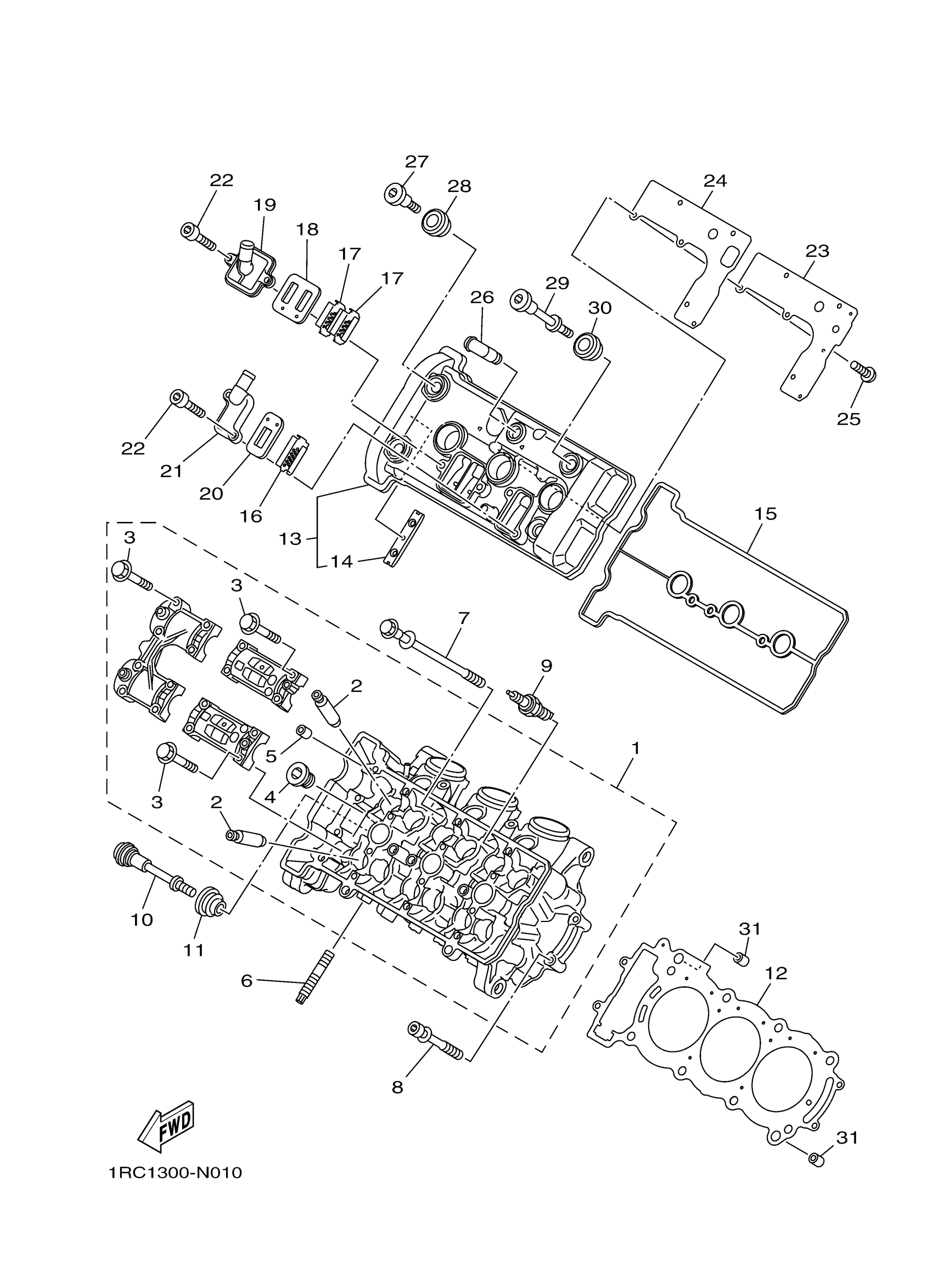

Yamaha FZ09GL (FZ09) B8750 2016 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1RC-11101-09-00

$939.99

2

GUIDE, VALVE 1

2C0-11133-11-00

$61.99

3

BOLT, WASHER BASED

90105-06027-00

$7.49

4

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

BOLT, STUD

90116-08087-00

$8.49

7

BOLT, WITH WASHER

90119-09017-00

$20.99

8

BOLT

90109-061F7-00

$4.72

9

CPR9E-9 NGK SPLUG 10 PK

CPR-9EA90-00-00

Unavailable

10

BOLT

90109-06293-00

$13.99

11

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99

12

GASKET, CYLINDER HEAD 1

1RC-11181-00-00

$72.99

13

COVER, CYLINDER HE

1RC-11191-01-00

Unavailable

14

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

15

GASKET, HEAD COVER 1

1RC-11193-01-00

$32.99

16

PLATE

5JW-1482K-01-00

Unavailable

17

PLATE

5VY-1482K-00-00

Unavailable

18

REED VALVE ASSY

5SL-14890-00-00

Unavailable

19

CAP, CASE

5SL-14899-00-00

Unavailable

20

REED VALVE ASSY

5PS-14890-00-00

Unavailable

21

CAP, CASE

5JW-14889-00-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

23

PLATE, BREATHER

B90-11165-00-00

Unavailable

24

GASKET, BREATHER COVER

1RC-11169-00-00

Unavailable

25

SCREW

90149-05038-00

Unavailable

26

PIPE, BREATHER 2

4TR-11167-00-00

Unavailable

27

BOLT(4BP)

90109-066F0-00

Unavailable

28

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99

29

BOLT

90109-06271-00

Unavailable

30

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99

31

PIN, DOWEL

99530-12016-00

Unavailable
