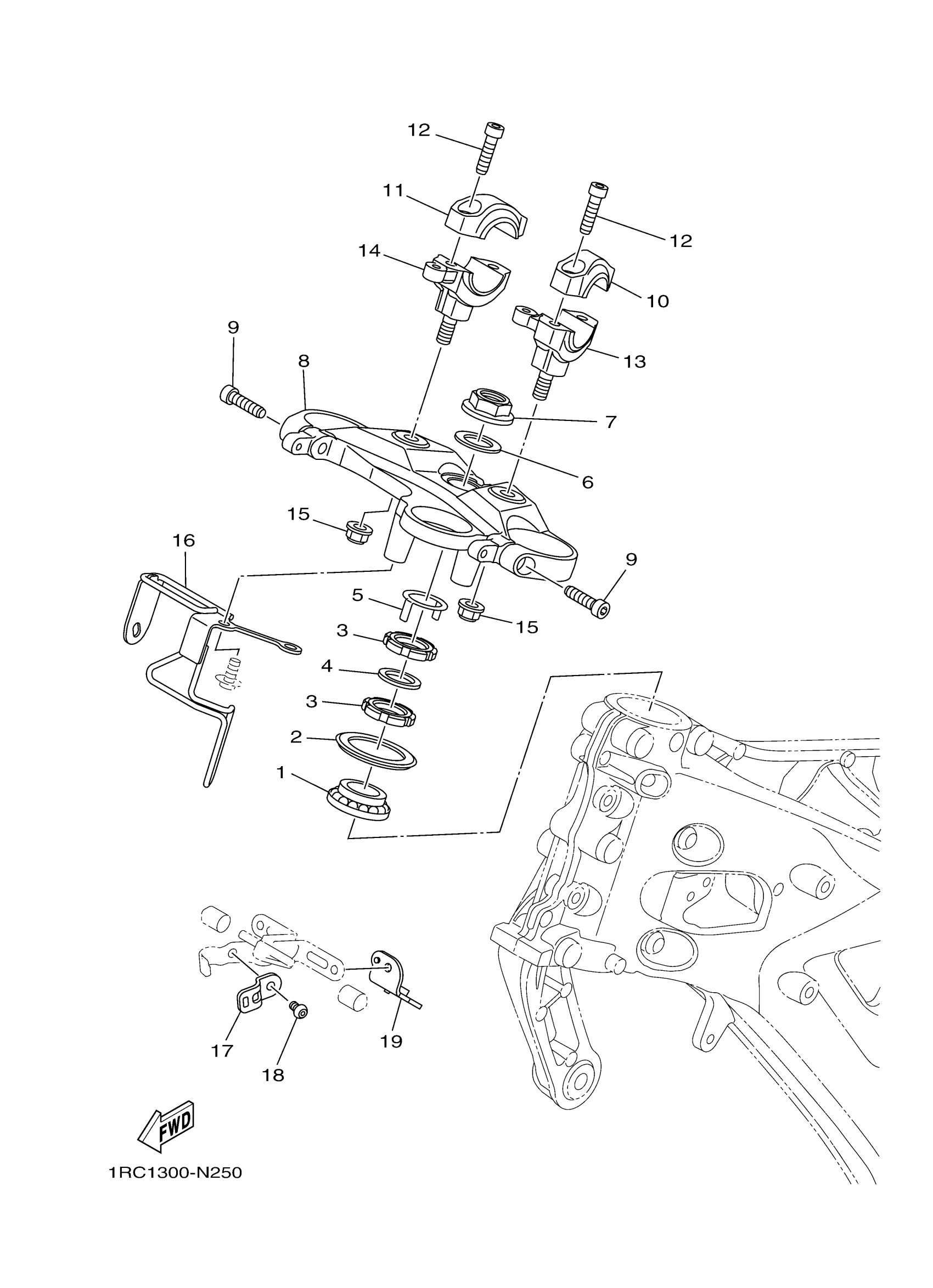

Yamaha FZ09GGY (FZ09) B8751 2016 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99931-00

$57.99

2

COVER, BALL RACE 1

5VX-23415-00-00

$18.49

3

NUT

90179-25004-00

$24.99

4

WASHER, PLATE (26H)

90202-26142-00

$9.49

5

WASHER, SPECIAL

26H-23418-01-00

$14.49

6

WASHER, PLATE

90201-22018-00

$5.60

7

NUT, SPECIAL

1RC-23393-00-00

$41.99

8

CROWN, HANDLE

1RC-23435-10-00

$340.99

9

BOLT,SOCKET

91314-08030-00

$2.34

10

HOLDER, HANDLE UPP

1RC-23441-11-00

$35.99

11

HOLDER, HANDLE UPP

1RC-2344A-11-00

$35.99

12

BOLT,SOCKET

91314-08030-00

$2.34

13

HOLDER 1

1RC-24847-12-00

$71.99

14

HOLDER 2

1RC-24848-12-00

$71.99

15

NUT, S/L FLANGE

95602-10200-00

$4.82

16

GUIDE, CABLE

1RC-23389-00-00

Unavailable

17

HOLDER, BRAKE HOSE 2

5SL-25876-00-00

Unavailable

18

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

19

BRACKET, HORN

1RC-23377-00-00

Unavailable
