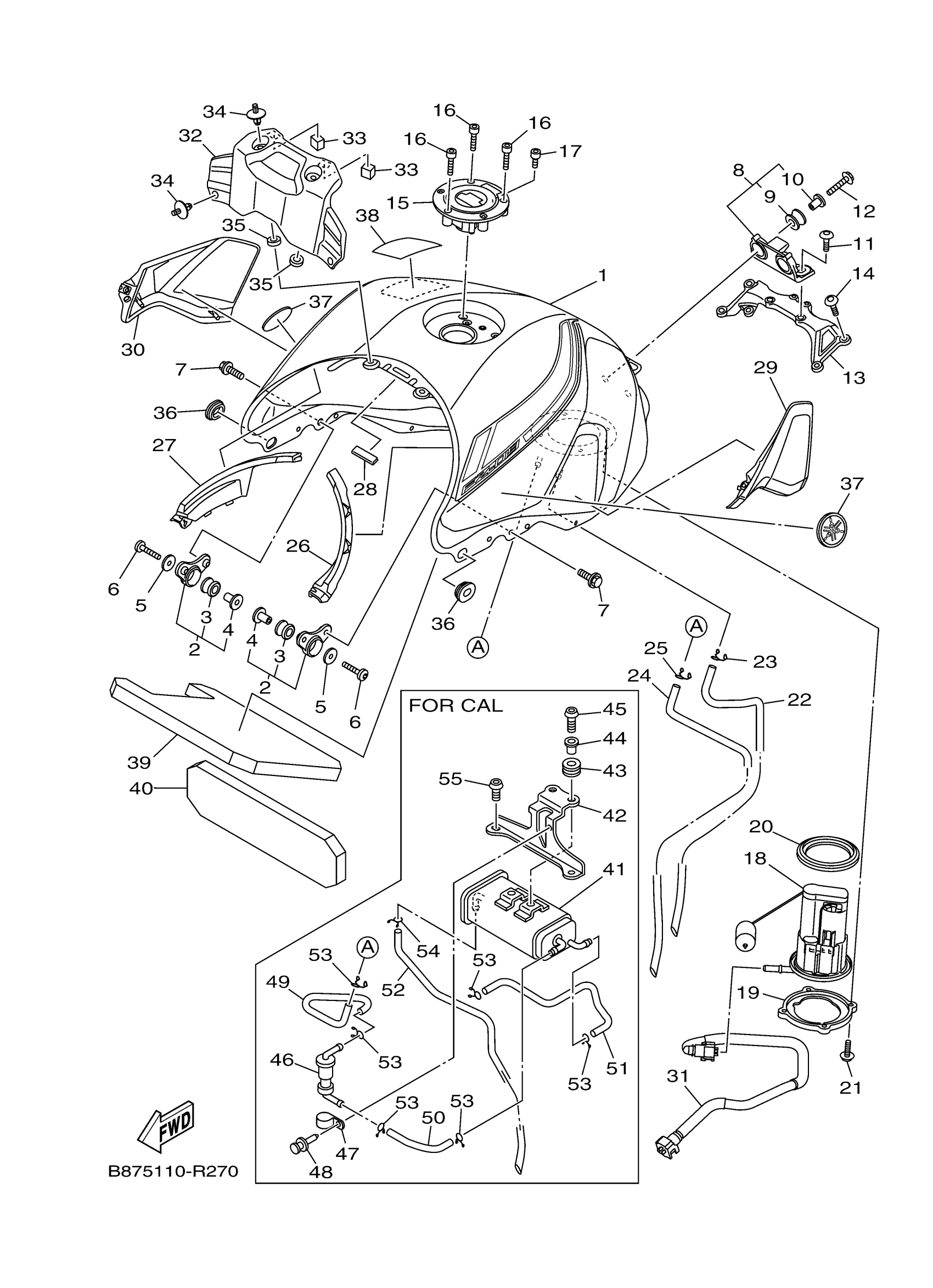

Yamaha FZ09GGY (FZ09) B8751 2016 FUEL TANK Diagram
#
2
TANK BRACKET ASSY
23P-24104-01-00
Unavailable
7
BOLT, WITH WASHER
90119-06200-00
Unavailable
8
TANK BRACKET ASSY
1RC-24104-00-00
Unavailable
12
BOLT, FLANGE
95817-06025-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
17
BOLT
91312-05010-00
Unavailable
18
FUEL PUMP COMP
1RC-13907-10-00
Unavailable
19
BRACKET, FUEL PUMP
1RC-24491-00-00
Unavailable
20
O-RING
1RC-24486-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
22
PIPE 5
1RC-24315-00-00
Unavailable
23
CLIP
90467-090A2-00
Unavailable
26
MOLE, FUEL TANK 1
1RC-2418B-01-00
Unavailable
27
MOLE, FUEL TANK 2
1RC-2419B-01-00
Unavailable
28
MOLE 3
2S3-28347-00-00
Unavailable
29
TANK SIDE COVER ASSY 1
1RC-24106-01-00
Unavailable
30
TANK SIDE COVER ASSY 2
1RC-24108-01-00
Unavailable
31
PIPE, FUEL 1
1RC-13971-11-00
Unavailable
32
COVER, TANK
1RC-241B1-00-00
Unavailable
33
DAMPER, PLATE
90520-15012-00
Unavailable
34
RIVET(4PH)
90269-07077-00
Unavailable
35
DAMPER
5SL-84753-00-00
Unavailable
36
GROMMET(4DN)
90480-01558-00
Unavailable
37
EMBLEM
1RC-2413B-02-00
Unavailable
38
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
39
DAMPER, PLATE 1
1RC-2414H-00-00
Unavailable
40
DAMPER, PLATE 2
1RC-2414J-00-00
Unavailable
41
CANISTER ASSY
1RC-24170-00-00
Unavailable
42
BRACKET, CANISTOR
1RC-2419F-00-00
Unavailable
43
GROMMET (462)
90480-13018-00
Unavailable
44
COLLAR(42G)
90387-062L2-00
Unavailable
45
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
46
ROLL OVER VALVE ASSY
2C0-24180-00-00
Unavailable
47
CLAMP
90464-15014-00
Unavailable
48
RIVET(52W)
90269-05049-00
Unavailable
49
PIPE 2
1RC-24312-00-00
Unavailable
50
PIPE 3
1RC-24313-00-00
Unavailable
51
PIPE 4
1RC-24314-00-00
Unavailable
52
PIPE 10
1RC-24321-00-00
Unavailable
53
CLIP
90467-090A2-00
Unavailable
54
CLIP
90467-100A1-00
Unavailable
55
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
