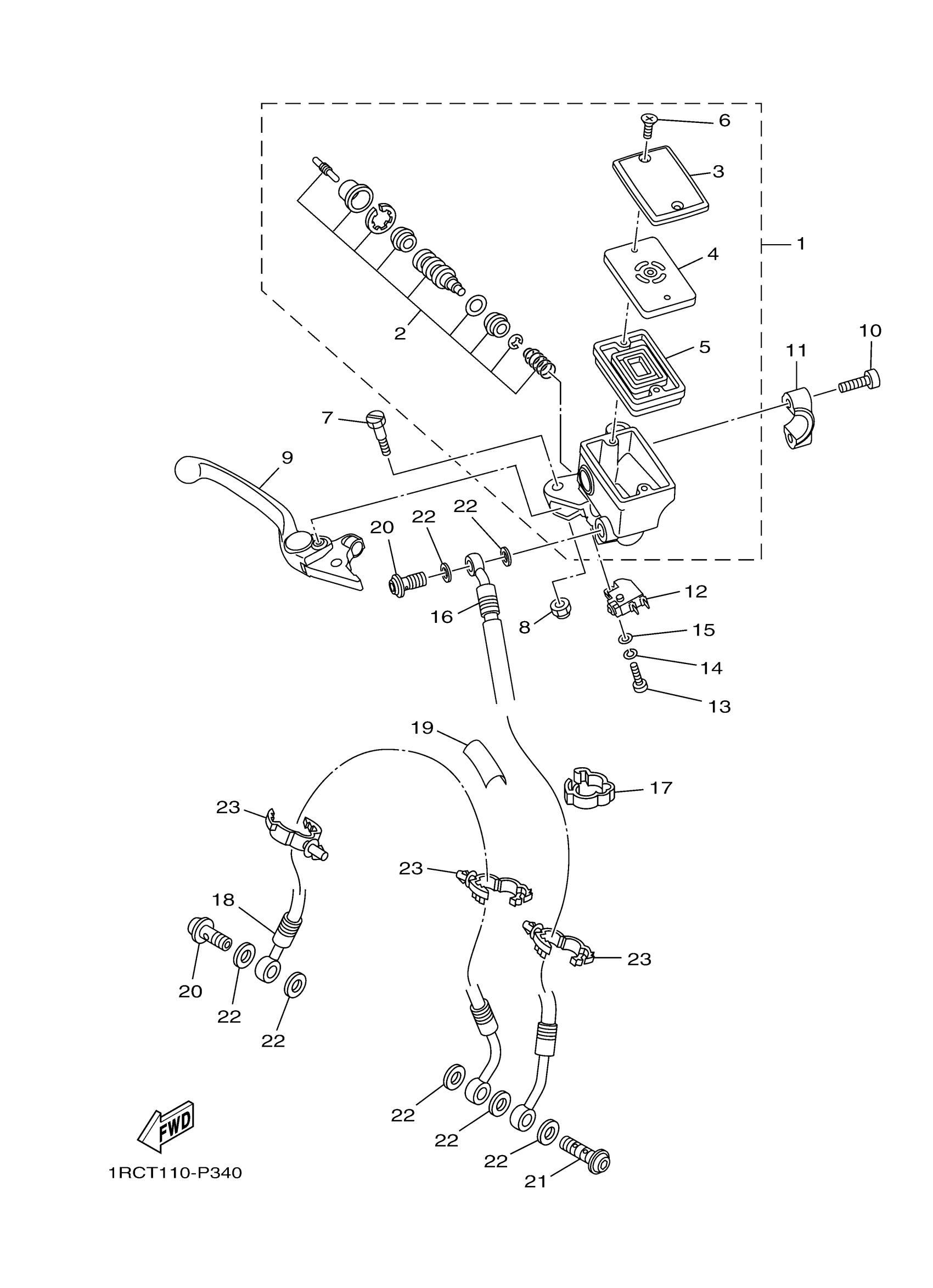

Yamaha FZ09GGY (FZ09) B8751 2016 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

1RC-2580A-00-00

Unavailable

2

CYLINDER KIT, MASTER

1MC-25807-00-00

$27.33

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$13.33

5

GASKET, DIAPHRAGM

20S-25854-00-00

$21.07

6

SCREW

5VS-2589H-00-00

$3.16

7

BOLT, LEVER

5VS-2589F-00-00

$11.48

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

LEVER 2

5VS-83922-00-00

$68.90

10

BOLT

5VS-26332-00-00

$3.67

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$29.63

12

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$28.77

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

15

WASHER, PLAIN (646)

92990-04600-00

$0.91

16

BRAKE HOSE ASSY

1RC-2584A-09-00

Unavailable

17

CLAMP

90464-14003-00

Unavailable

18

HOSE, BRAKE 1

1RC-Y258C-00-00

Unavailable

19

PROTECTOR

1RC-23472-00-00

Unavailable

20

BOLT, UNION

90401-10172-00

Unavailable

21

BOLT, UNION

90401-10042-00

Unavailable

22

GASKET

90430-10005-00

Unavailable

23

CLAMP

90464-18002-00

Unavailable
