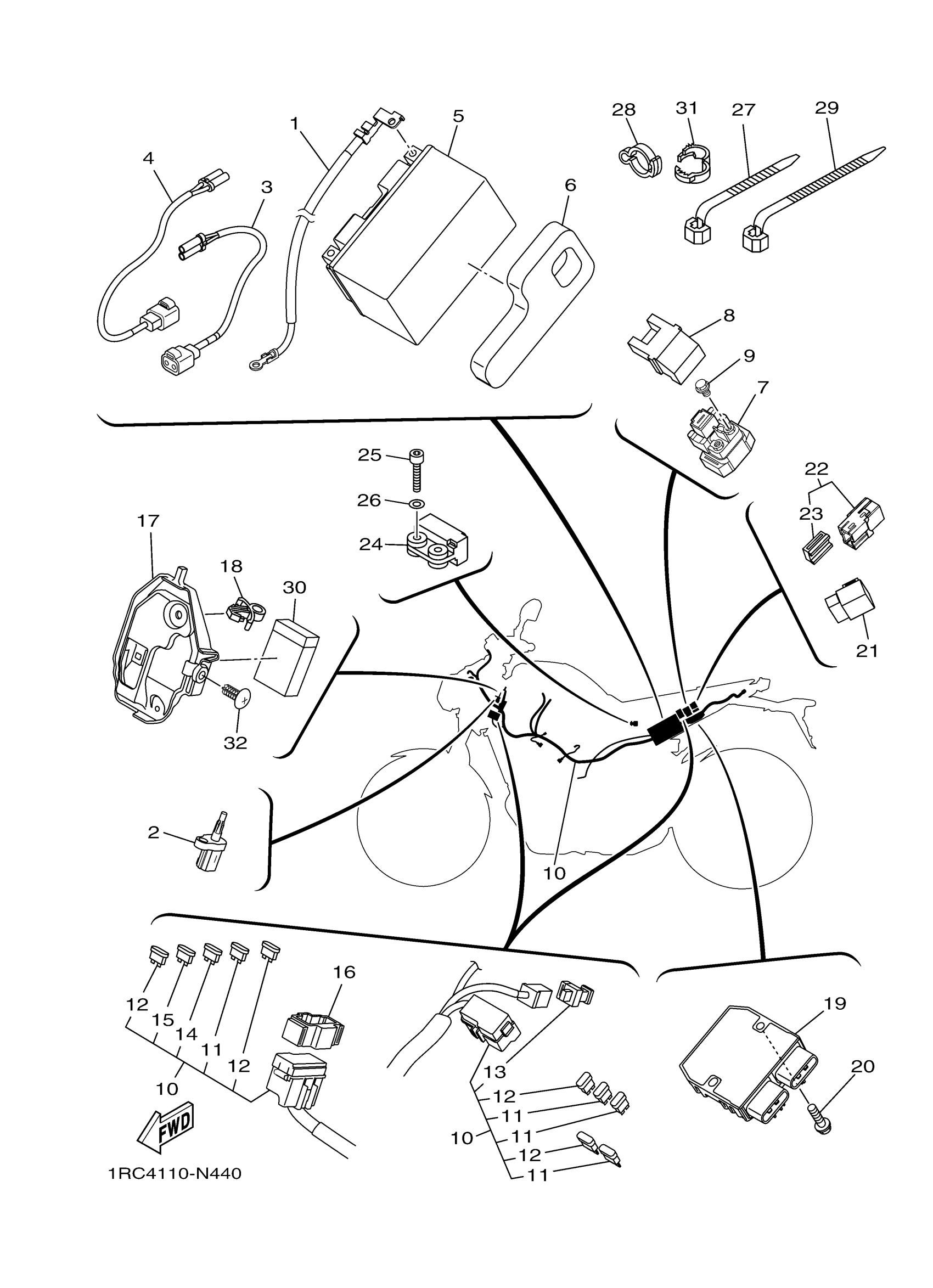

Yamaha FZ09GGY (FZ09) B8751 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

1RC-82116-00-00

$43.99

2

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

$34.99

3

WIRE, SUB LEAD

1RC-82309-00-00

$18.49

4

WIRE, SUB LEAD

1RC-82509-00-00

$20.99

5

BATTERY YTZ10S

YTZ-10S00-00-00

Unavailable

6

SPACER

1RC-8246K-00-00

Unavailable

7

STARTER RELAY ASSY

1RC-81940-00-00

$58.99

8

COVER, LEAD WIRE

5SL-82119-30-00

$3.74

9

BOLT, FLANGE

95022-06008-00

$8.49

10

WIRE HARNESS ASSY

1RC-82590-12-00

Unavailable

11

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

12

FUSE (15A)

67F-82151-50-00

Unavailable

13

FUSE (50A)

5JW-82151-10-00

$16.49

14

FUSE (2A-BL)

5JJ-82151-80-00

$7.99

15

. FUSE (10A)

67F-82151-40-00

Unavailable

16

CLAMP

1RC-82544-00-00

Unavailable

17

COVER, CONNECTOR

1RC-82599-01-00

Unavailable

18

CLAMP(3XV)

90464-15157-00

Unavailable

19

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

20

BOLT, FLANGE

95022-06025-00

Unavailable

21

RELAY ASSY

5VK-81950-43-00

Unavailable

22

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

23

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

24

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

25

BOLT

91312-04020-00

Unavailable

26

WASHER, PLATE

90201-04030-00

Unavailable

27

CLAMP(4FM)

90464-15195-00

Unavailable

28

CLAMP

90464-14010-00

Unavailable

29

BAND

3MA-82591-00-00

Unavailable

30

PROTECTER, WIRE HARNESS

1RC-82589-00-00

Unavailable

31

CLAMP

90464-16001-00

Unavailable

32

RIVET

90269-07015-00

Unavailable
