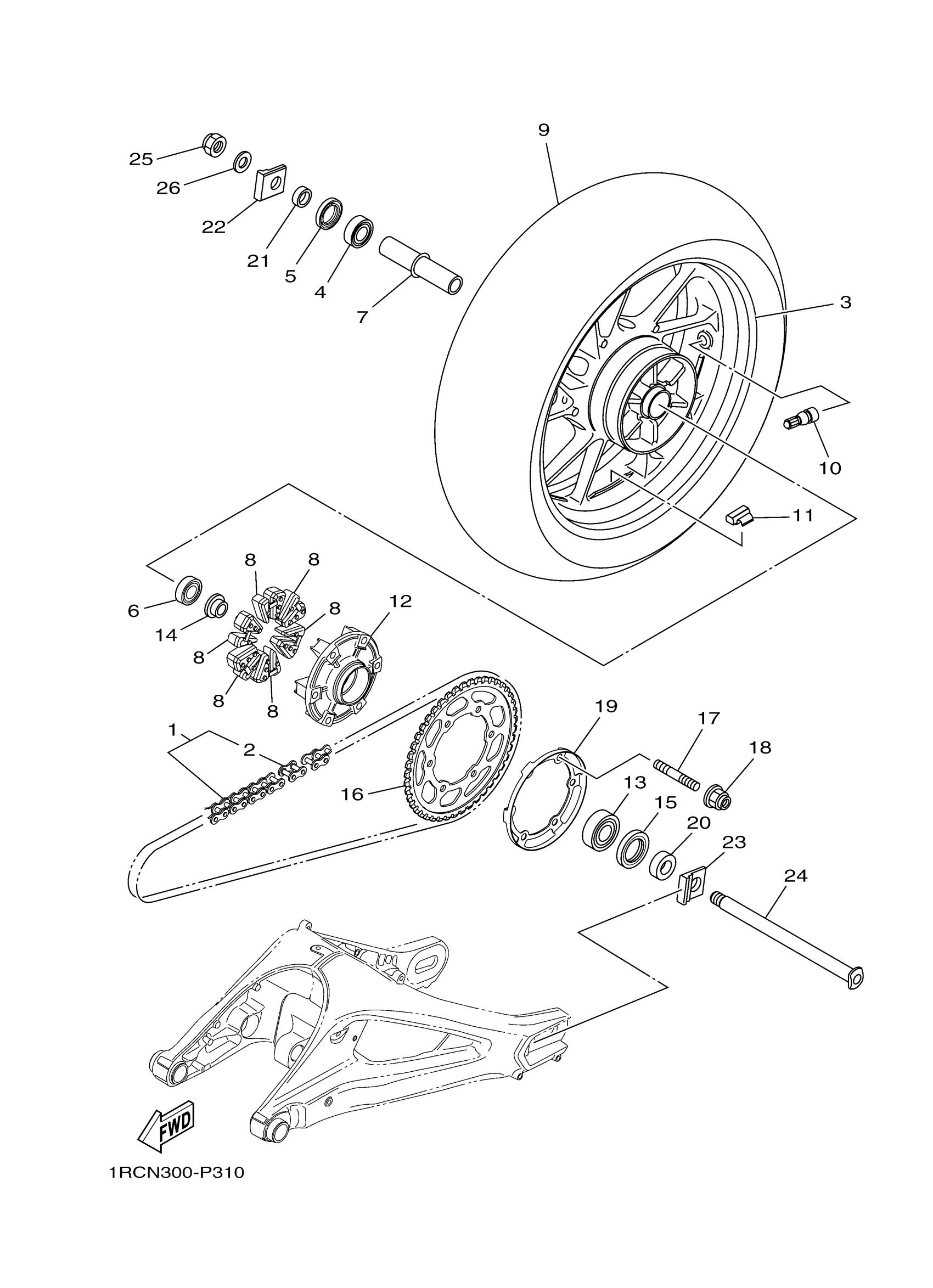

Yamaha FZ09FY (FZ09) 1RCT1 2015 REAR WHEEL Diagram

#

Description
Price

1

CHAIN

94582-41110-00

Unavailable

2

. JOINT, CHAIN

94682-41031-00

Unavailable

3

CAST WHEEL, REAR

1RC-25338-00-98

$658.99

4

BEARING

93306-20480-00

$44.99

5

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

6

BEARING(8AB)

93306-00444-00

$41.99

7

SPACER, BEARING

2PP-25317-00-00

$22.99

8

DAMPER

1RC-25364-00-00

Unavailable

9

TIRE (180/55ZR17M/C 73W D214)

94118-17077-00

Unavailable

9

TIRE (180/55ZR17M/C 73W S20R)

94118-17078-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5JJ-25366-00-00

$465.99

13

BEARING

93306-205B5-00

Unavailable

14

COLLAR, WHEEL

1RC-25383-00-00

Unavailable

15

OIL SEAL

93106-40013-00

Unavailable

16

SPROCKET, DRIVEN (45T)

1RC-25445-00-00

Unavailable

17

BOLT, STUD

90116-10048-00

Unavailable

18

NUT, S/L FLANGE

95602-10200-00

Unavailable

19

BRACKET 1

1RC-2537W-01-00

Unavailable

20

COLLAR

90387-20036-00

Unavailable

21

COLLAR

90387-20035-00

Unavailable

22

PULLER, CHAIN 1

3SP-25388-00-00

Unavailable

23

PULLER, CHAIN 2

1RC-25389-00-00

Unavailable

24

AXLE, WHEEL

1RC-25381-00-00

Unavailable

25

NUT, SELF-LOCKING

90185-18009-00

Unavailable

26

WASHER, PLATE

90201-18021-00

Unavailable
