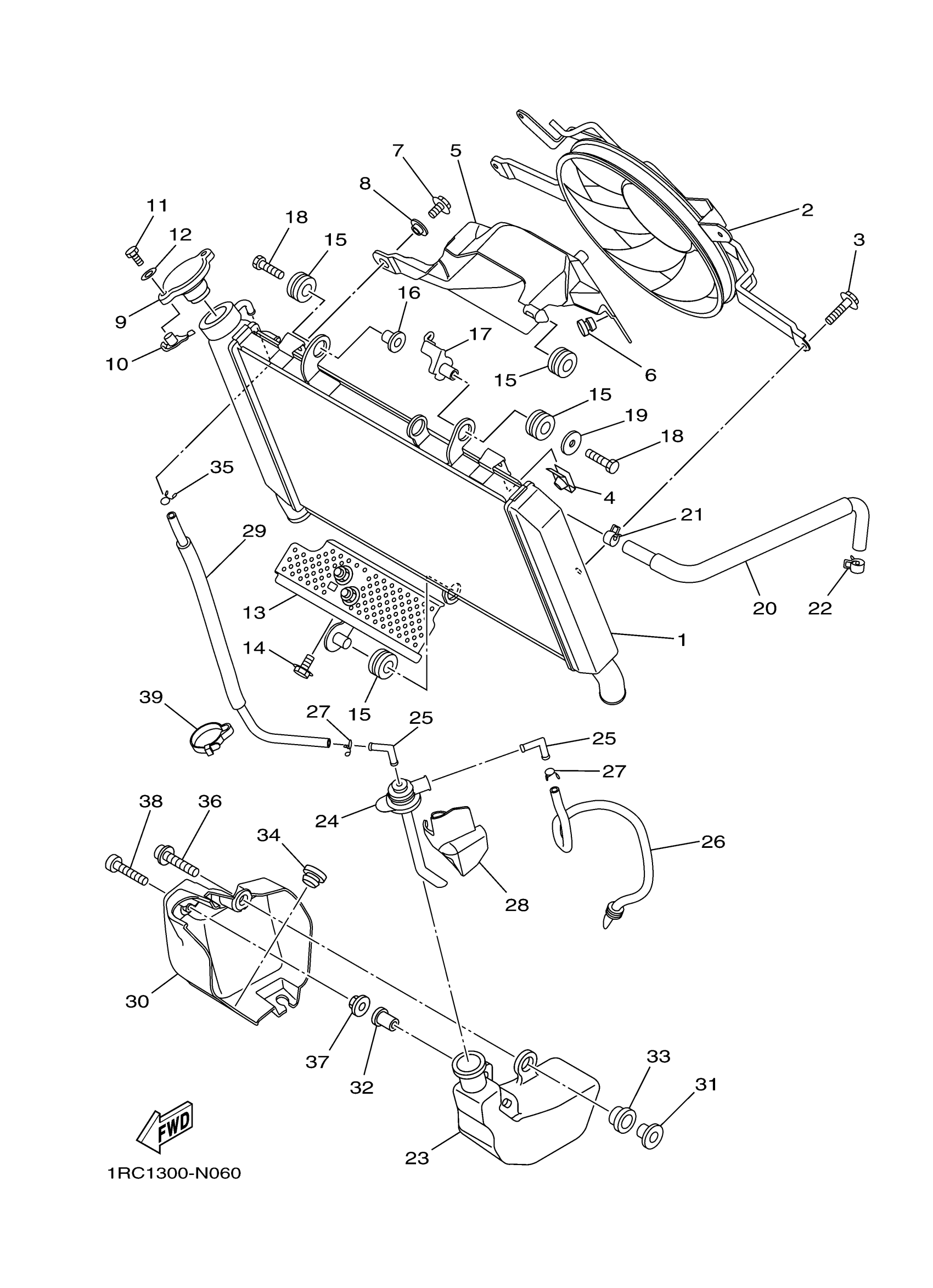

Yamaha FZ09FY (FZ09) 1RCT1 2015 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR COMP

1RC-12461-00-00

Unavailable

2

BLOWER ASSY

1RC-12405-02-00

Unavailable

3

BOLT, BLOWER HOLDING

3D8-12675-00-00

$6.37

4

PLATE

1AA-12535-00-00

$11.48

5

COVER, RADIATOR

1RC-12467-00-00

$16.27

6

PLUG(7Y6)

90338-07157-00

$5.39

7

BOLT, FLANGE

95812-06014-00

$5.08

8

COLLAR (3L1)

90387-07717-00

$5.75

9

CAP, RADIATOR

4FL-12462-00-00

$53.09

10

STOPPER

5FC-12437-00-00

$11.12

11

BOLT(4GV)

97017-05012-00

$5.75

12

WASHER(1RW)

92907-05600-00

$0.77

13

STAY 1

1RC-12637-00-00

Unavailable

14

BOLT, FLANGE

95817-06012-00

$1.40

15

GROMMET (29L)

90480-15363-00

$5.75

16

COLLAR

90387-06158-00

Unavailable

17

GUIDE, CABLE 2

1RC-26132-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

19

WASHER, PLATE

90201-06033-00

Unavailable

20

HOSE 1

1RC-1243A-00-00

Unavailable

21

CLIP (3G0)

90467-10039-00

Unavailable

22

CLIP (3G0)

90467-10039-00

Unavailable

23

TANK, RECOVERY

1RC-21871-00-00

Unavailable

24

CAP

1RC-21875-01-00

Unavailable

25

ELBOW

1RC-21828-00-00

Unavailable

26

PIPE, BREATHER

1RC-21826-00-00

Unavailable

27

CLIP (16G)

90467-08021-00

Unavailable

28

PROTECTOR 1

1RC-22825-00-00

Unavailable

29

PIPE 1

1RC-21816-00-00

Unavailable

30

COVER

1RC-2172W-00-00

Unavailable

31

COLLAR

90387-06285-00

Unavailable

32

NUT(1KT)

90179-05523-00

Unavailable

33

COLLAR

1RC-21749-00-00

Unavailable

34

GROMMET (420)

90480-14153-00

Unavailable

35

CLIP (16G)

90467-08021-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

37

COLLAR

1RC-21748-00-00

Unavailable

38

BOLT, BUTTON HEAD

92012-05030-00

Unavailable

39

CLAMP(6U0)

90464-07M40-00

Unavailable
