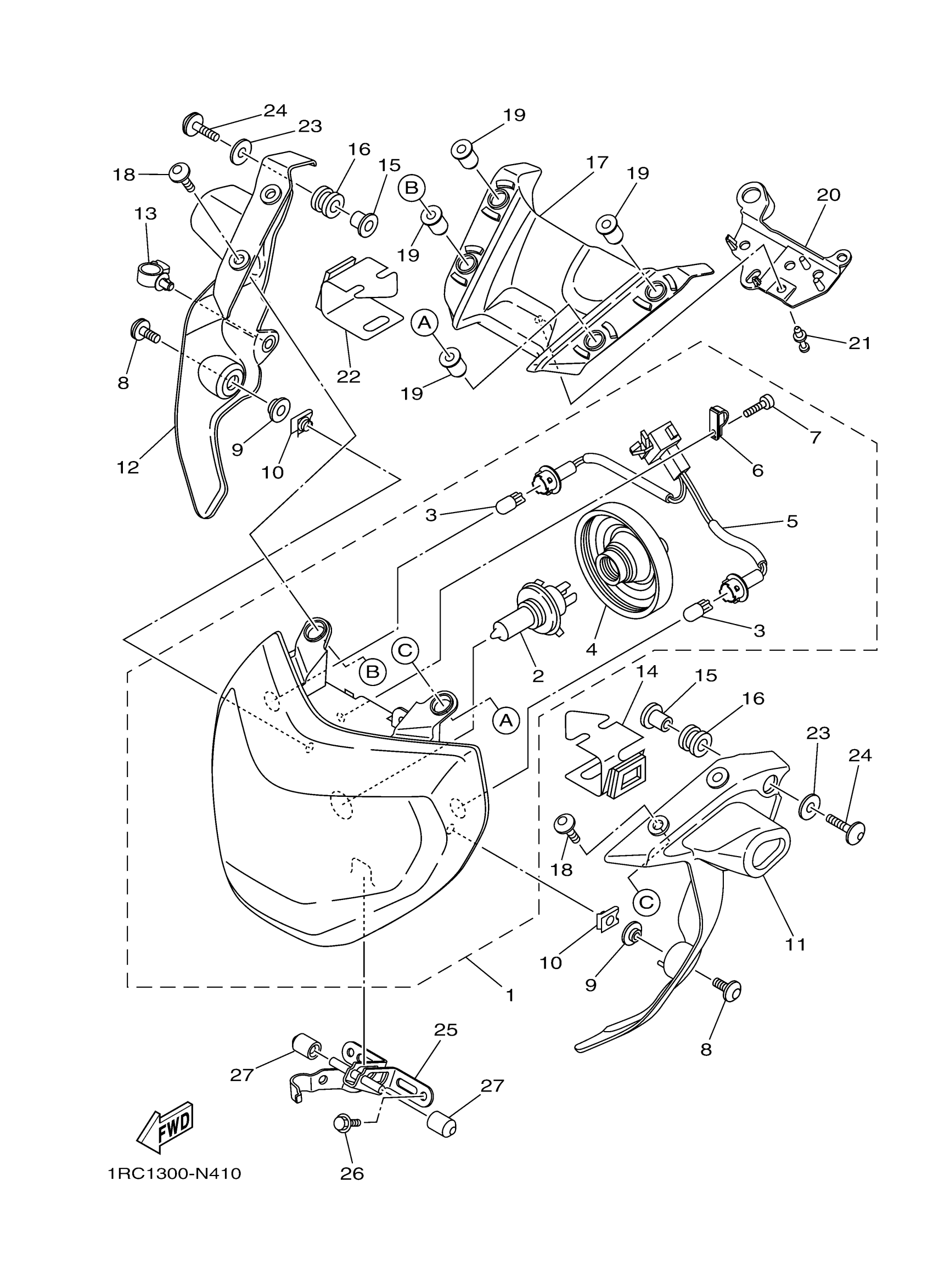

Yamaha FZ09FY (FZ09) 1RCT1 2015 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

1RC-84300-00-00

Unavailable

2

BULB, HEADLIGHT (12V-60/55W)

1RC-84314-00-00

$33.99

3

BULB (12V-W5W)

1RC-84347-00-00

$7.99

4

COVER, SOCKET

1RC-84397-00-00

Unavailable

5

CORD, HEADLIGHT

1RC-84359-00-00

Unavailable

6

PLATE, SEAT BASE

1RC-84746-00-00

Unavailable

7

SCREW, LENS FITTING

1RC-84724-00-00

Unavailable

8

BOLT

90111-06038-00

$4.29

9

COLLAR

90387-06170-00

$8.49

10

NUT, SPRING

90183-060A6-00

$5.49

11

STAY, HEAD LIGHT 1

1RC-2831V-00-P0

Unavailable

12

STAY, HEAD LIGHT 2

1RC-2832V-00-P0

Unavailable

13

CLAMP

90464-18002-00

$8.49

14

GROMMET

1RC-84152-00-00

$8.99

15

COLLAR 437216330000

90387-07391-00

Unavailable

16

GROMMET(4TX)

90480-14604-00

Unavailable

17

COVER 1

1RC-84369-01-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-06123-00

Unavailable

19

NUT

90179-06072-00

Unavailable

20

HOLDER

1RC-8431U-01-00

Unavailable

21

RIVET

90269-05005-00

Unavailable

22

GROMMET

1RC-84154-00-00

Unavailable

23

WASHER, PLATE

90201-06095-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06150-00

Unavailable

25

STAY, SETTING

1RC-8431R-00-00

Unavailable

26

BOLT, FLANGE

95817-06016-00

Unavailable

27

DAMPER

1RC-84527-00-00

Unavailable
