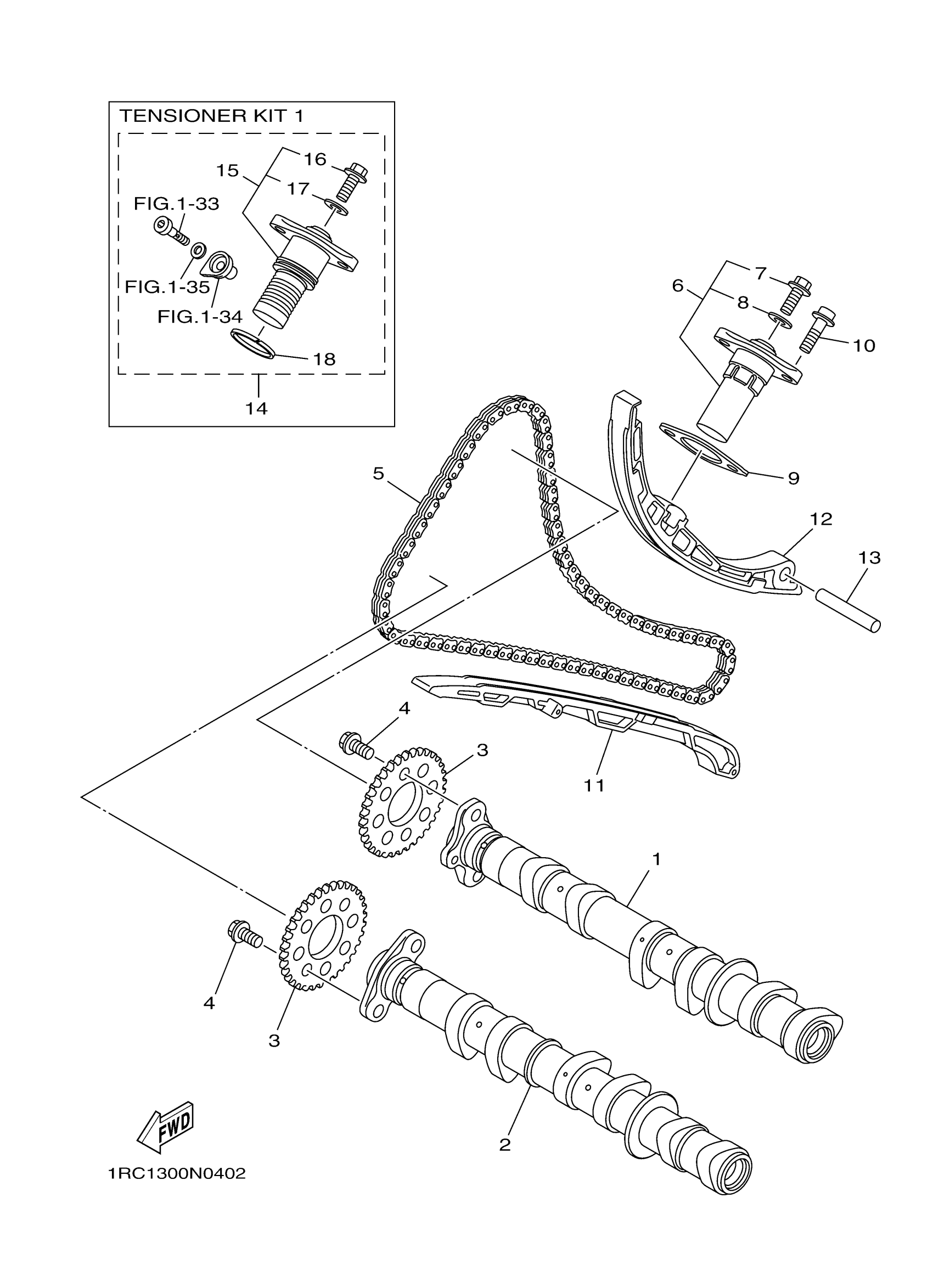

Yamaha FZ09FY (FZ09) 1RCT1 2015 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1RC-12170-00-00

$258.99

2

CAMSHAFT ASSY 2

1RC-12180-00-00

$258.99

3

SPROCKET, CAM CHAIN

20S-12176-00-00

$63.99

4

BOLT, FLANGE

90105-07006-00

$8.49

5

CHAIN

94591-57128-00

$43.99

6

TENSIONER ASSY, CAM CHAIN

B90-12210-00-00

$138.99

7

BOLT

5EL-12228-00-00

$5.49

8

GASKET

5SL-12214-00-00

$7.99

9

GASKET, TENSIONER CASE

1RC-12213-00-00

$4.52

10

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

$2.97

11

DAMPER, CHAIN 1

1RC-12251-00-00

Unavailable

12

CHAIN DAMPER ASSY

1RC-12250-01-00

$79.99

13

PIN, DOWEL

93607-44002-00

$4.67

14

TENSIONER KIT 1

99999-04254-00

Unavailable

15

. TENSIONER ASSY, CAM CHAIN 1

1RC-12210-09-00

Unavailable

16

BOLT

5EL-12228-00-00

$5.49

17

GASKET

5SL-12214-00-00

$7.99

18

RING

1RC-14633-09-00

Unavailable
