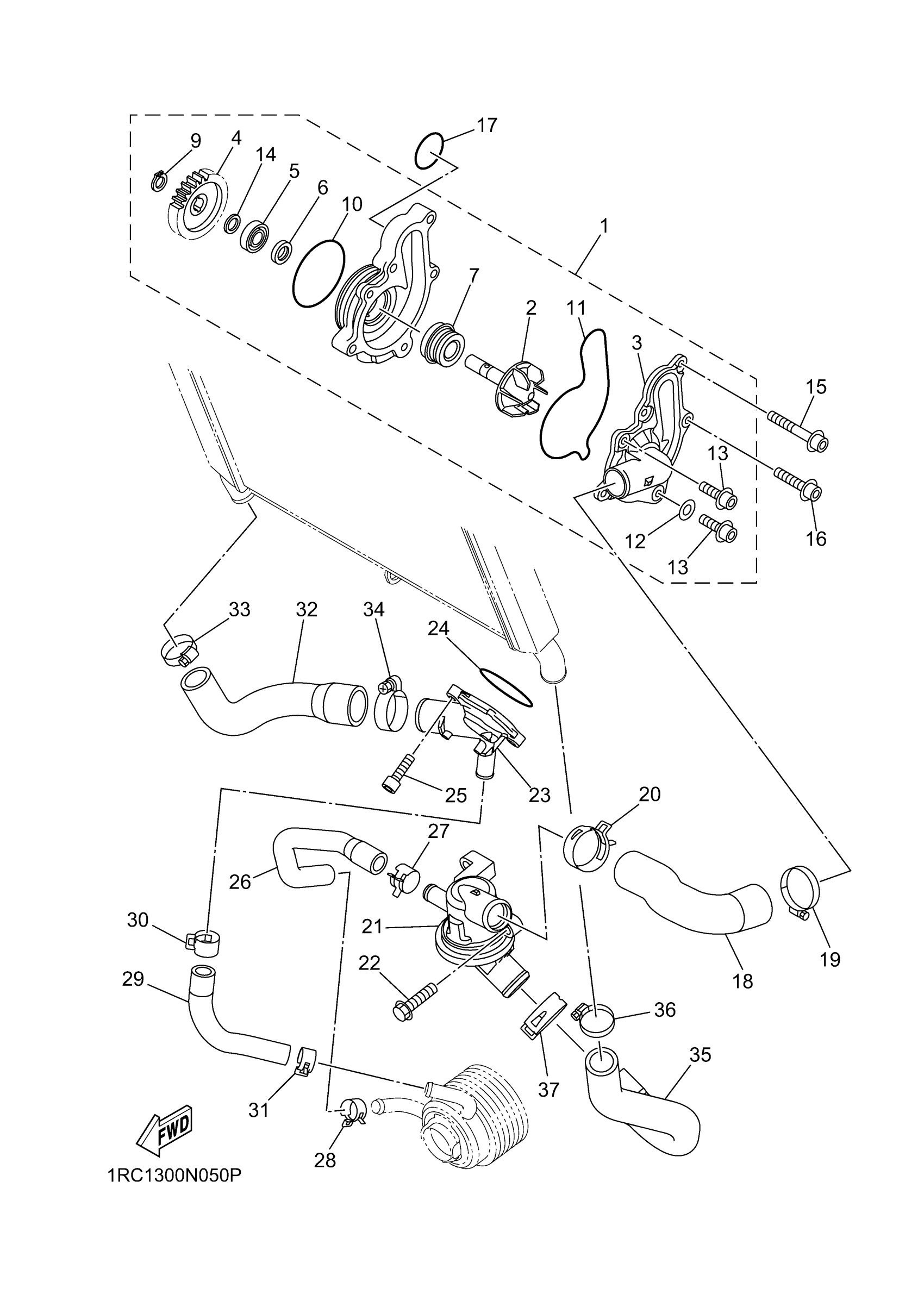

Yamaha FZ09ER (FZ09) 1RC41 2014 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

1RC-12420-10-00

$228.99

2

IMPELLER SHAFT PIN SET

99999-04618-00

$36.99

3

COVER, HOUSING

1RC-12422-00-00

Unavailable

4

GEAR, IMPELLER SHAFT

1RC-12459-00-00

Unavailable

5

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

6

OIL SEAL

93101-12173-00

$13.49

7

SEAL, MECHANICAL

5VK-12438-00-00

Unavailable

9

CIRCLIP(10Y)

99009-12400-00

$3.59

10

O-RING(2HT)

93210-61750-00

$8.49

11

O-RING

1RC-12439-00-00

$14.49

12

GASKET 256113960000

90430-06014-00

Unavailable

13

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

$2.97

14

WASHER, PLATE (525)

90201-12541-00

$7.49

15

BOLT, HEXAGON SOCKET HEAD

90110-06394-00

$2.17

16

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

17

O-RING(1AA)

93210-30694-00

Unavailable

18

HOSE 2

1RC-12577-00-00

Unavailable

19

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

20

CLIP

90467-310A0-00

Unavailable

21

THERMOSTAT ASSY

1RC-12410-00-00

Unavailable

22

BOLT, FLANGE

95822-06025-00

Unavailable

23

JOINT 1

1RC-12469-00-00

Unavailable

24

O-RING

93210-46044-00

Unavailable

25

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

26

HOSE 3

1RC-12578-00-00

Unavailable

27

CLIP

90467-200A0-00

Unavailable

28

CLIP(3TB)

90467-17128-00

Unavailable

29

HOSE 4

1RC-12579-00-00

Unavailable

30

CLIP

90467-200A0-00

Unavailable

31

CLIP(3TB)

90467-17128-00

Unavailable

32

HOSE 5

1RC-12588-00-00

Unavailable

33

HOSE CLAMP ASSY

90450-32003-00

Unavailable

34

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

35

HOSE 1

1RC-12576-00-00

Unavailable

36

HOSE CLAMP ASSY

90450-32003-00

Unavailable

37

CLIP

90467-310A0-00

Unavailable
