Description

Price

1

HANDLEBAR

1RC-26111-00-00

$251.99

2

GRIP

4YR-26241-03-00

$11.99

3

GRIP ASSY

4YR-26240-03-00

$30.99

4

END, GRIP

5GJ-26246-00-00

$28.99

5

THROTTLE CABLE ASSY

1RC-26302-00-00

$51.99

6

CAP, GRIP UPPER

4KG-26281-00-00

$31.99

7

CAP, GRIP UNDER

3XW-26282-01-00

$31.99

8

BOLT,SOCKET

91317-05035-00

$8.49

9

CABLE, CLUTCH

1RC-26335-01-00

$50.99

10

HOLDER

B90-23857-00-00

Unavailable

11

BOLT, BUTTON HEAD

92017-06010-00

$4.82

12

REAR VIEW MIRROR ASSY (LEFT)

1RC-26280-09-00

$61.99

13

REAR VIEW MIRROR ASSY (RIGHT)

1RC-26290-09-00

$61.99

14

CLAMP

90464-16023-00

$3.28

15

CLAMP

90464-14009-00

$8.49

16

CLAMP

90464-16001-00

Unavailable

17

CLAMP

90464-05003-00

Unavailable

18

CAP

23P-26133-00-00

Unavailable

19

CAP

23P-26133-00-00

Unavailable

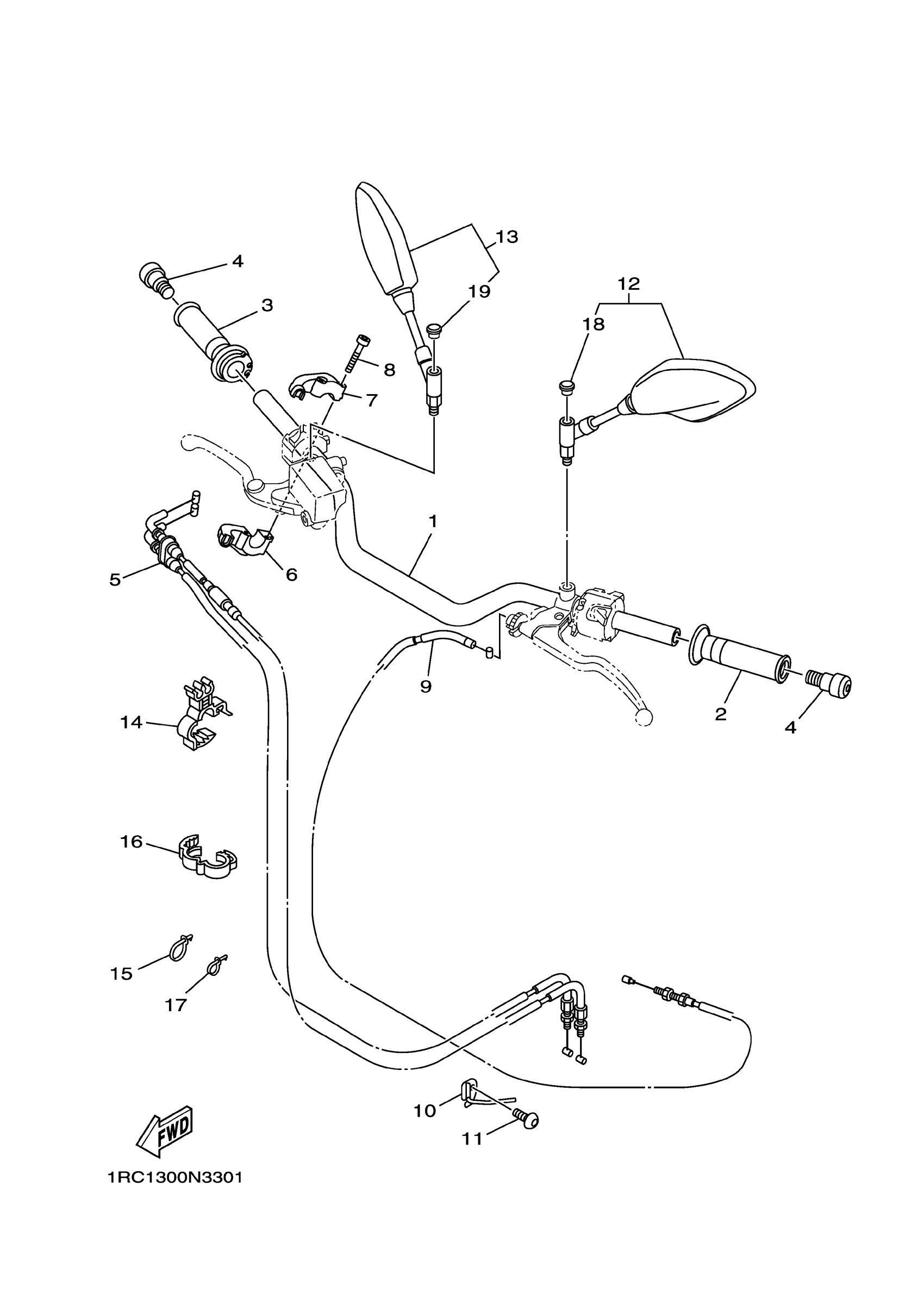

Yamaha FZ09ER (FZ09) 1RC41 2014 STEERING HANDLE CABLE Diagram

HANDLEBAR

GRIP

GRIP ASSY

END, GRIP

THROTTLE CABLE ASSY

CAP, GRIP UPPER

CAP, GRIP UNDER

BOLT,SOCKET

CABLE, CLUTCH

HOLDER

BOLT, BUTTON HEAD

REAR VIEW MIRROR ASSY (LEFT)

REAR VIEW MIRROR ASSY (RIGHT)

CLAMP

CLAMP

CLAMP

CLAMP

CAP

CAP
