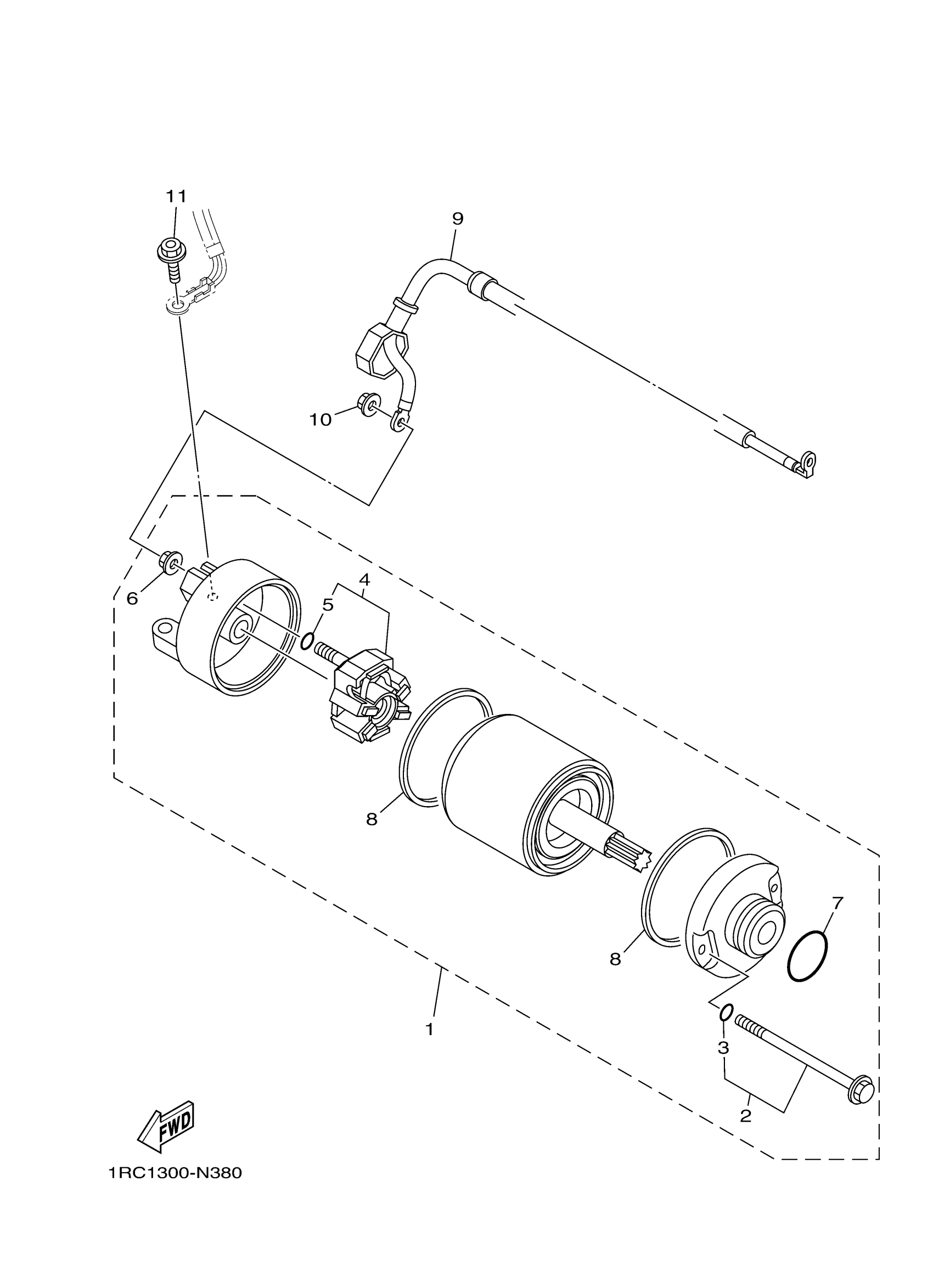

Yamaha FZ09ER (FZ09) 1RC41 2014 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

1RC-81890-00-00

$411.47

2

BOLT

28P-81826-00-00

Unavailable

3

.. O-RING

3TB-81847-00-00

$2.21

4

BRUSH HOLDER ASSY

4B5-81840-00-00

$91.35

5

.. O-RING

3TB-81847-00-00

$2.21

6

NUT

4XV-8182A-00-00

$5.86

7

O-RING (437)

93210-24235-00

$5.34

8

GASKET

35C-81844-00-00

Unavailable

9

CORD, STARTER MOTOR

1RC-81815-00-00

$39.76

10

NUT

4XV-8182A-00-00

$5.86

11

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$4.57
