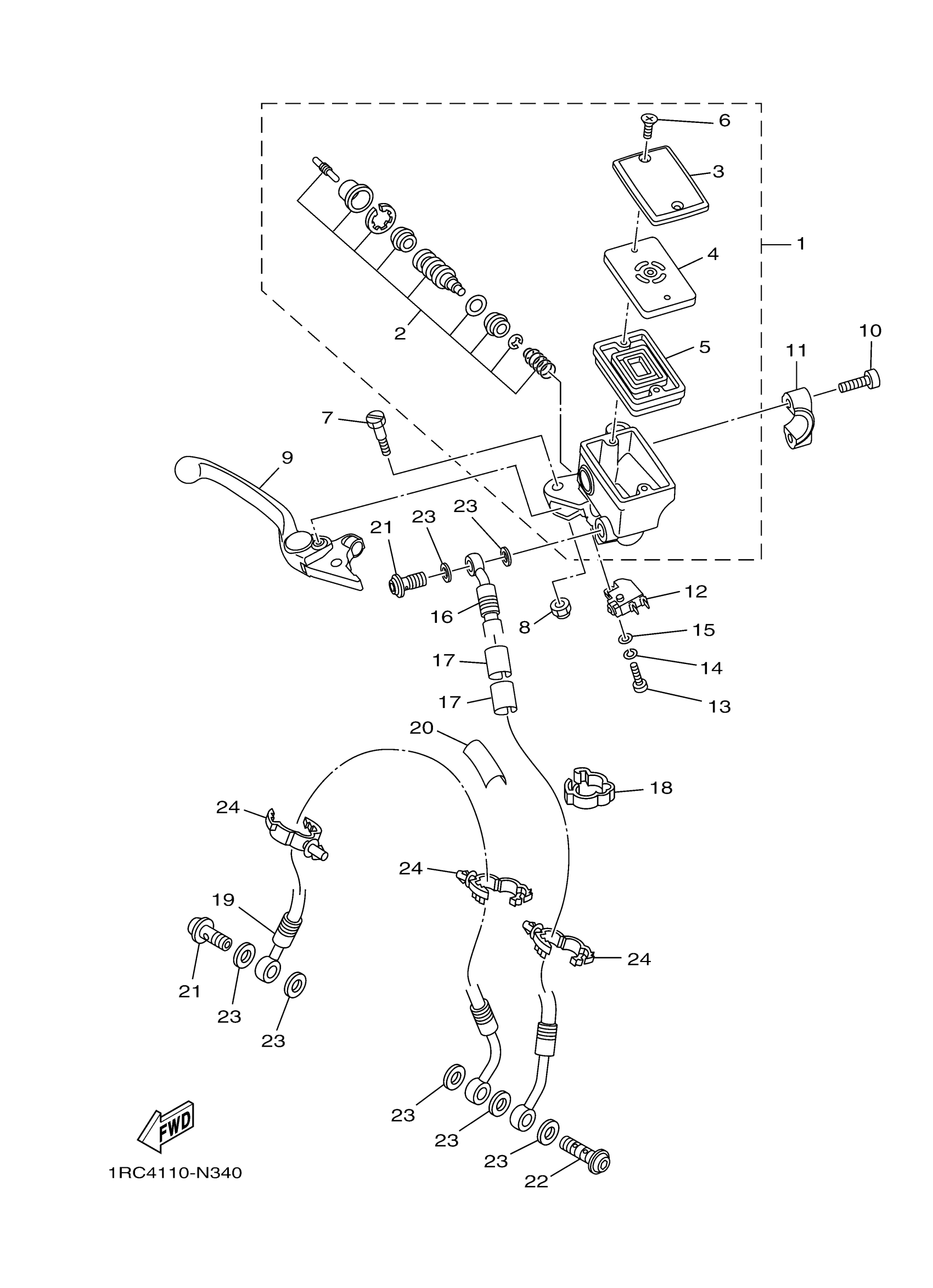

Yamaha FZ09ER (FZ09) 1RC41 2014 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

1RC-2580A-00-00

Unavailable

2

CYLINDER KIT, MASTER

1MC-25807-00-00

$33.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

5VS-2589F-00-00

$14.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

5VS-83922-00-00

$85.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

12

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

BRAKE HOSE ASSY

1RC-2584A-09-00

Unavailable

17

PROTECTOR

33D-23472-00-00

Unavailable

18

CLAMP

90464-14003-00

Unavailable

19

HOSE, BRAKE 1

1RC-Y258C-00-00

Unavailable

20

PROTECTOR

1RC-23472-00-00

Unavailable

21

BOLT, UNION

90401-10172-00

Unavailable

22

BOLT, UNION

90401-10042-00

Unavailable

23

GASKET

90430-10005-00

Unavailable

24

CLAMP

90464-18002-00

Unavailable
