Description

Price

1

FRAME COMP.

1RC-21110-80-00

Unavailable

2

REAR FRAME COMP.

B90-21190-00-00

$385.99

3

SCREW

90149-10060-00

$7.49

4

COVER 9

1RC-2117X-01-00

$7.99

5

COVER 10

1RC-2117Y-01-00

$8.99

6

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

$4.41

7

WASHER, PLATE

90201-10075-00

$3.28

8

BOLT, ENGINE ADJUSTING

1RC-21495-00-00

Unavailable

9

BOLT, FLANGE

90105-10391-00

Unavailable

10

BOLT, FLANGE

90105-10437-00

Unavailable

11

NUT

90179-10024-00

$10.49

12

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

13

PLUG, BLIND

5VX-21289-00-00

$6.99

14

DAMPER

1HP-H2176-01-00

$2.17

15

PROTECTOR

1RC-2117G-00-00

$5.49

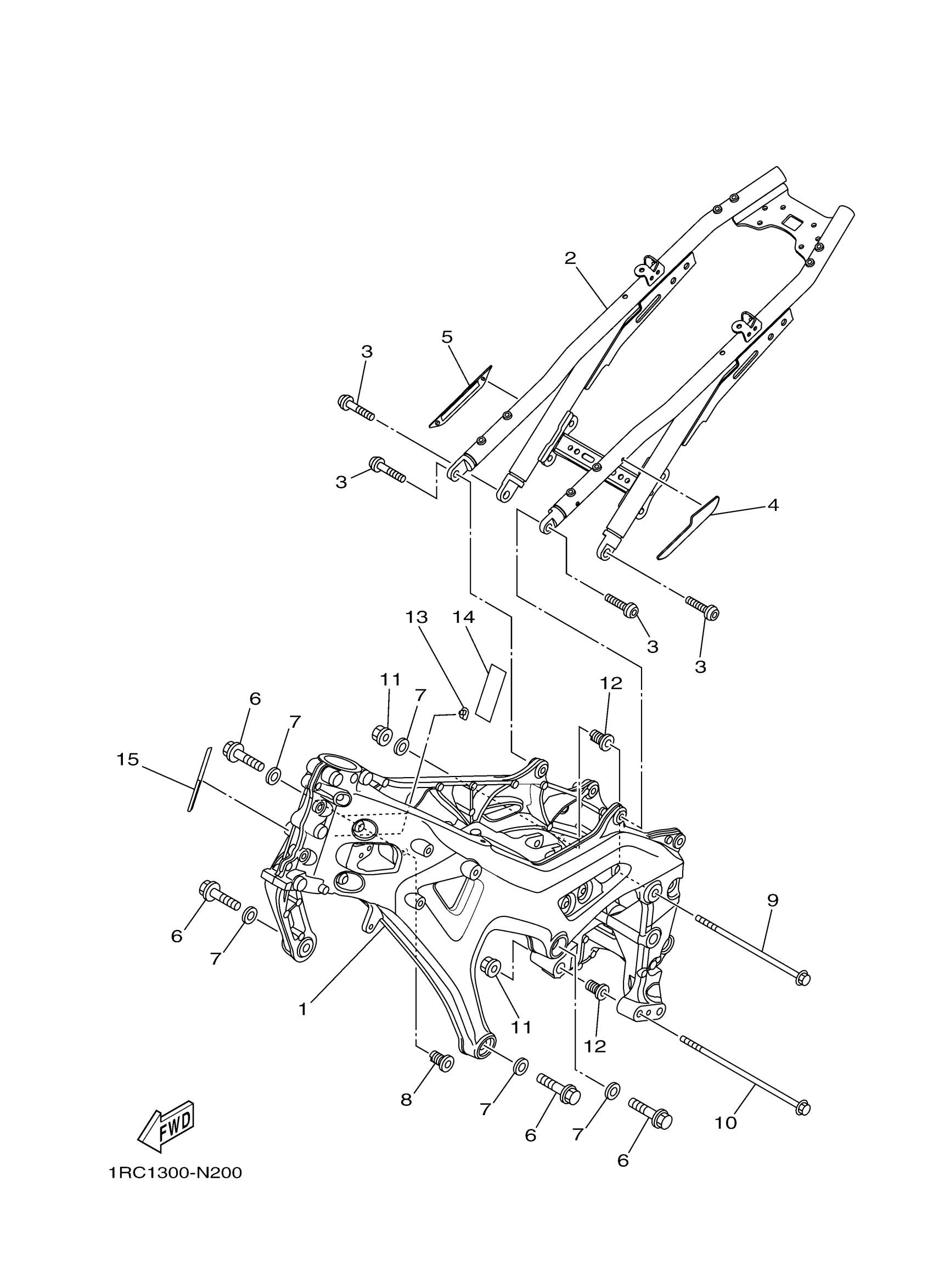

Yamaha FZ09ER (FZ09) 1RC41 2014 FRAME Diagram

FRAME COMP.

REAR FRAME COMP.

SCREW

COVER 9

COVER 10

BOLT, HEXAGON SOCKET HEAD

WASHER, PLATE

BOLT, ENGINE ADJUSTING

BOLT, FLANGE

BOLT, FLANGE

NUT

BOLT, ENGINE ADJUSTING

PLUG, BLIND

DAMPER

PROTECTOR
