Description

Price

1

REAR FLASHER LIGHT ASSY 1

1RC-83330-10-00

Unavailable

2

BULB, FLASHER

5PW-83331-00-00

$14.49

3

LENS COMP

5PW-8334A-10-00

$33.99

4

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

5

REAR FLASHER LIGHT ASSY 2

1RC-83340-10-00

Unavailable

6

BULB, FLASHER

5PW-83331-00-00

$14.49

7

LENS COMP

5PW-8333A-10-00

$33.99

8

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

9

STAY, FLASHER 1

5PW-83318-00-00

$7.99

10

FRONT FLASHER LIGHT ASSY 1

5PW-83310-10-00

$108.99

11

BULB, FLASHER

5GJ-83331-00-00

$15.49

12

LENS COMP

5PW-8333A-10-00

$33.99

13

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

14

FRONT FLASHER LIGHT ASSY 2

5PW-83320-11-00

$51.99

15

BULB, FLASHER

5GJ-83331-00-00

$15.49

16

LENS COMP

5PW-8334A-10-00

$33.99

17

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

18

STAY, FLASHER 1

5PW-83318-00-00

$7.99

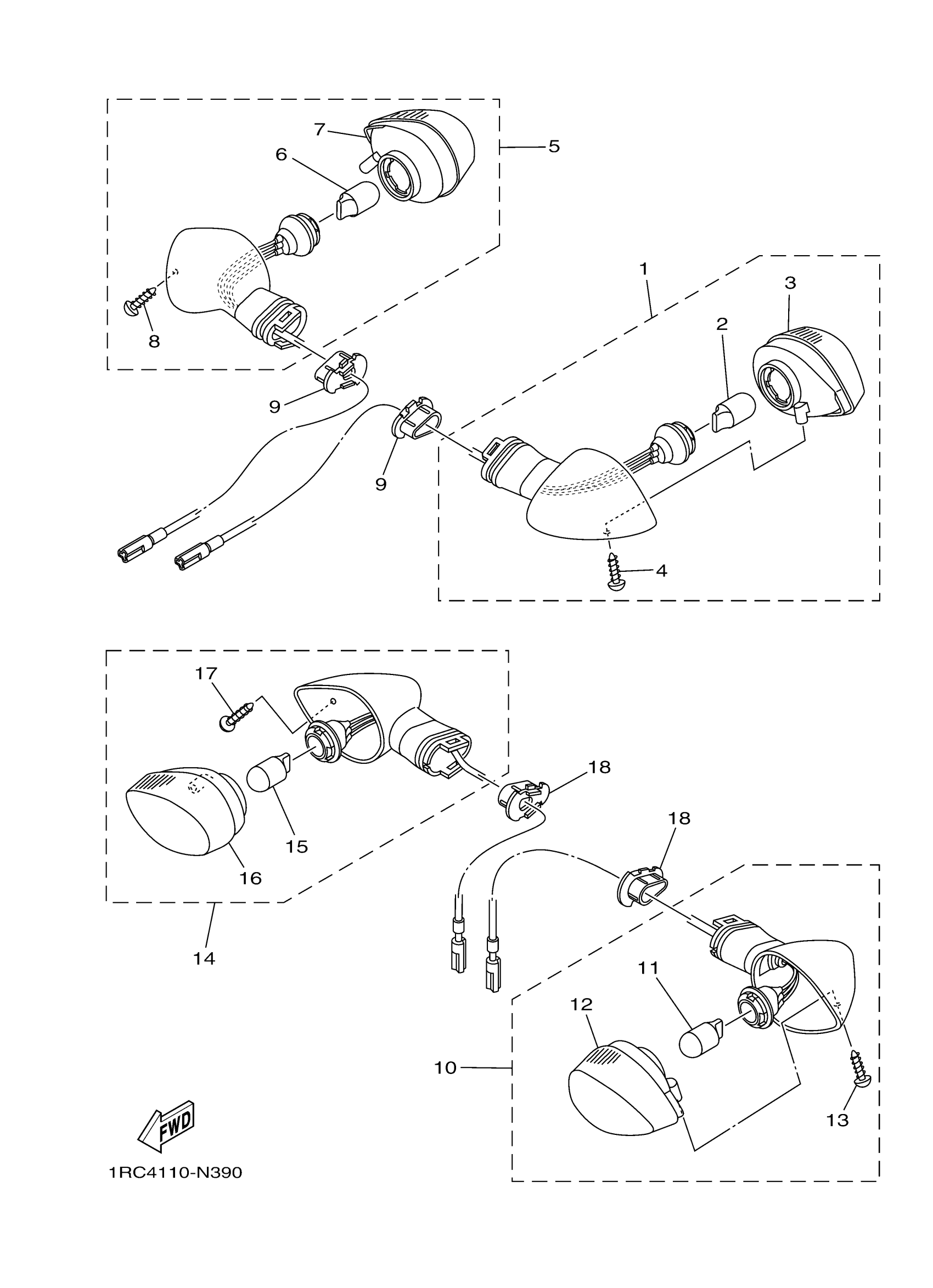

Yamaha FZ09ER (FZ09) 1RC41 2014 FLASHER LIGHT Diagram

REAR FLASHER LIGHT ASSY 1

BULB, FLASHER

LENS COMP

SCREW, TRUSS TAP.

REAR FLASHER LIGHT ASSY 2

BULB, FLASHER

LENS COMP

SCREW, TRUSS TAP.

STAY, FLASHER 1

FRONT FLASHER LIGHT ASSY 1

BULB, FLASHER

LENS COMP

SCREW, TRUSS TAP.

FRONT FLASHER LIGHT ASSY 2

BULB, FLASHER

LENS COMP

SCREW, TRUSS TAP.

STAY, FLASHER 1
