2017 Yamaha FZ07 (FZ07HS) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2017 Yamaha FZ07 (FZ07HS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

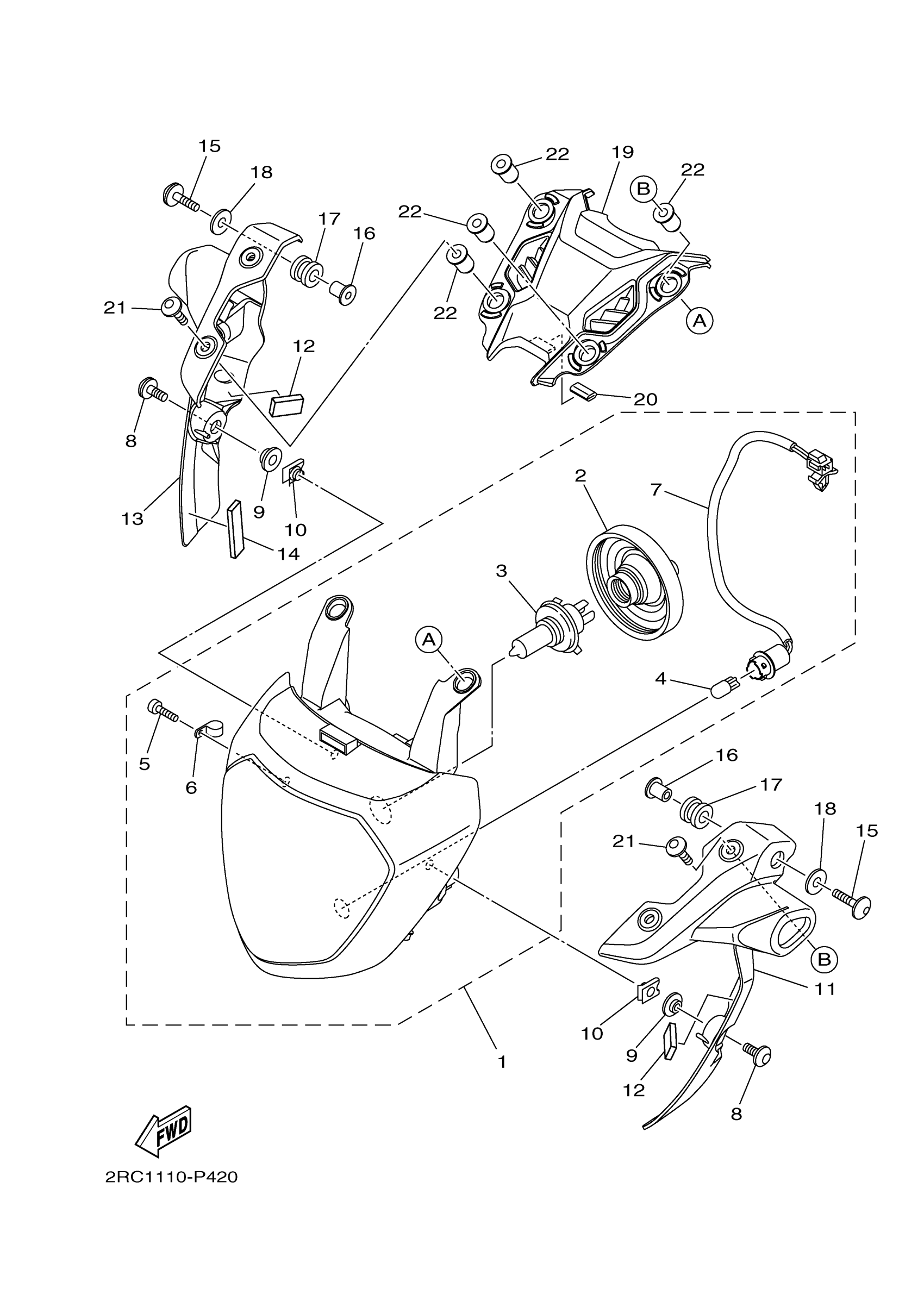

2017 Yamaha FZ07 (FZ07HS) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSY

1WS-84300-00-00

1
Out of stock

2

COVER, SOCKET

1RC-84397-00-00

—
Out of stock

3

BULB, HEADLIGHT (12V-60/55W)

1RC-84314-00-00

1
Out of stock

4

BULB (12V-W5W)

1RC-84347-00-00

1
Out of stock

5

SCREW

1WS-84526-00-00

1
Out of stock

6

CLAMP, CORD

1WS-8454J-00-00

1
Out of stock

7

CORD, HEADLIGHT

1WS-84359-00-00

—
Out of stock

8

BOLT

90111-06038-00

1
Out of stock

9

COLLAR

90387-06170-00

1
Out of stock

10

NUT, SPRING

90183-061A7-00

1
Out of stock

11

STAY, HEADLIGHT 1

2RC-84118-00-P0

1
Out of stock

12

DAMPER, PLATE

90520-05018-00

1
Out of stock

13

STAY, HEADLIGHT 2

2RC-84119-00-P0

1
Out of stock

14

DAMPER, PLATE

90520-05019-00

1
Out of stock

15

BOLT,HEX. SOCKET BUTTON

90111-06150-00

1
Out of stock

16

COLLAR

90387-06301-00

—
Out of stock

17

GROMMET

90480-12015-00

—
Out of stock

18

WASHER, PLATE

90201-06029-00

—
Out of stock

19

COVER

1WS-84396-00-00

—
Out of stock

20

TRIM

1WS-28376-00-00

—
Out of stock

21

SCREW(4DN)

90149-06302-00

—
Out of stock

22

NUT

90179-06072-00

—
Out of stock
