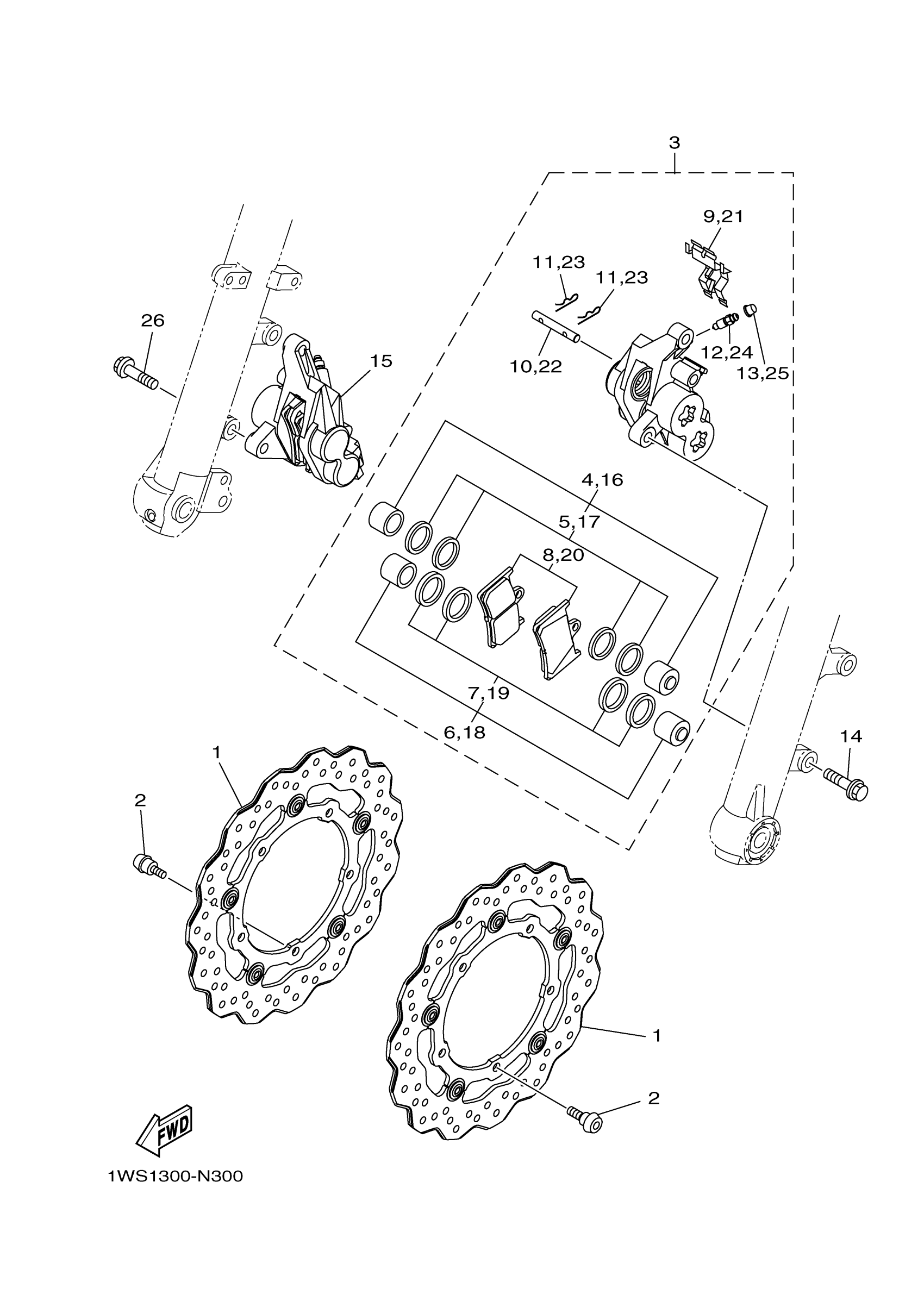

Yamaha FZ07HS (FZ07) 2RC700 2017 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

1WS-2581T-01-00

$128.99

2

BOLT

90109-06254-00

$8.49

3

CALIPER ASSY (LEFT

1WS-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

5

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

6

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

7

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

8

BRAKE PAD KIT

1WS-25805-00-00

$53.99

9

SUPPORT, PAD

13S-25919-00-00

$27.99

10

PIN, PAD

4SV-25924-00-00

$42.99

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

SCREW, BLEED

1J3-25824-00-00

$5.49

13

CAP

306-25825-01-00

$9.99

14

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

15

CALIPER ASSY (RIGH

1WS-2580U-00-00

Unavailable

16

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

17

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

18

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

19

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

20

BRAKE PAD KIT

1WS-25805-00-00

$53.99

21

SUPPORT, PAD

13S-25919-00-00

$27.99

22

PIN, PAD

4SV-25924-00-00

$42.99

23

CLIP, PAD PIN

3GM-25925-00-00

$11.99

24

SCREW, BLEED

1J3-25824-00-00

$5.49

25

CAP

306-25825-01-00

$9.99

26

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
