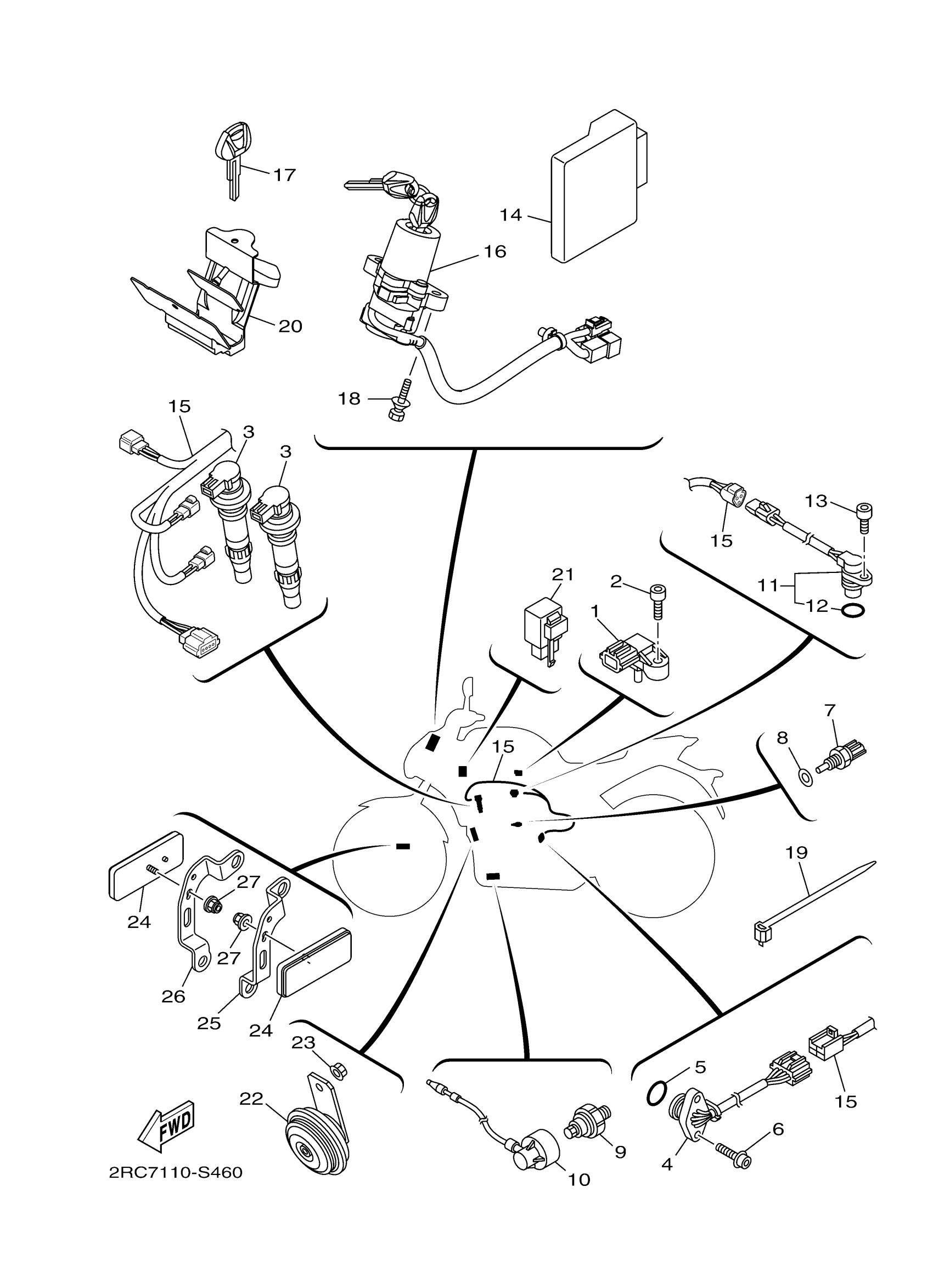

Yamaha FZ07HS (FZ07) 2RC700 2017 ELECTRICAL 2 Diagram

#

Description
Price

1

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

2

BOLT, SOCKET

91317-05020-00

$3.28

3

IGNITION COIL ASSY

1WS-82310-00-00

$110.99

4

NEUTRAL SWITCH ASSY

1WS-82540-01-00

$71.99

5

O-RING

93210-21001-00

$5.60

6

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

7

THERMO UNIT

52B-H3591-00-00

$34.99

8

GASKET

90430-10004-00

$7.49

9

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

10

LEAD WIRE ASSY

1WS-81315-00-00

Unavailable

11

SENSOR SPEED

1WS-83755-01-00

$113.99

12

O-RING

4D9-81168-00-00

$6.99

13

BOLT(3MA)

91312-06016-00

$5.60

14

ENGINE CONTROL UNIT ASSY

2RC-8591A-11-00

Unavailable

15

WIRE, SUB LEAD

1WS-82309-00-00

Unavailable

16

MAIN SWITCH STEERING LOCK

BU2-82501-32-00

Unavailable

17

BLANK KEY

4BH-82511-09-00

Unavailable

18

BOLT

90109-08196-00

Unavailable

19

BAND, SWITCH CORD

437-83936-11-00

Unavailable

20

COVER, CONNECTER

2RC-81662-00-00

Unavailable

21

FLASHER RELAY ASSY

5C4-83350-02-00

Unavailable

22

HORN

1WS-83371-00-00

Unavailable

23

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

24

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

25

BRACKET, REFLECTOR

1WS-85112-00-00

Unavailable

26

BRACKET, REFLECTOR

1WS-85122-00-00

Unavailable

27

NUT, FLANGE

95702-05500-00

Unavailable
