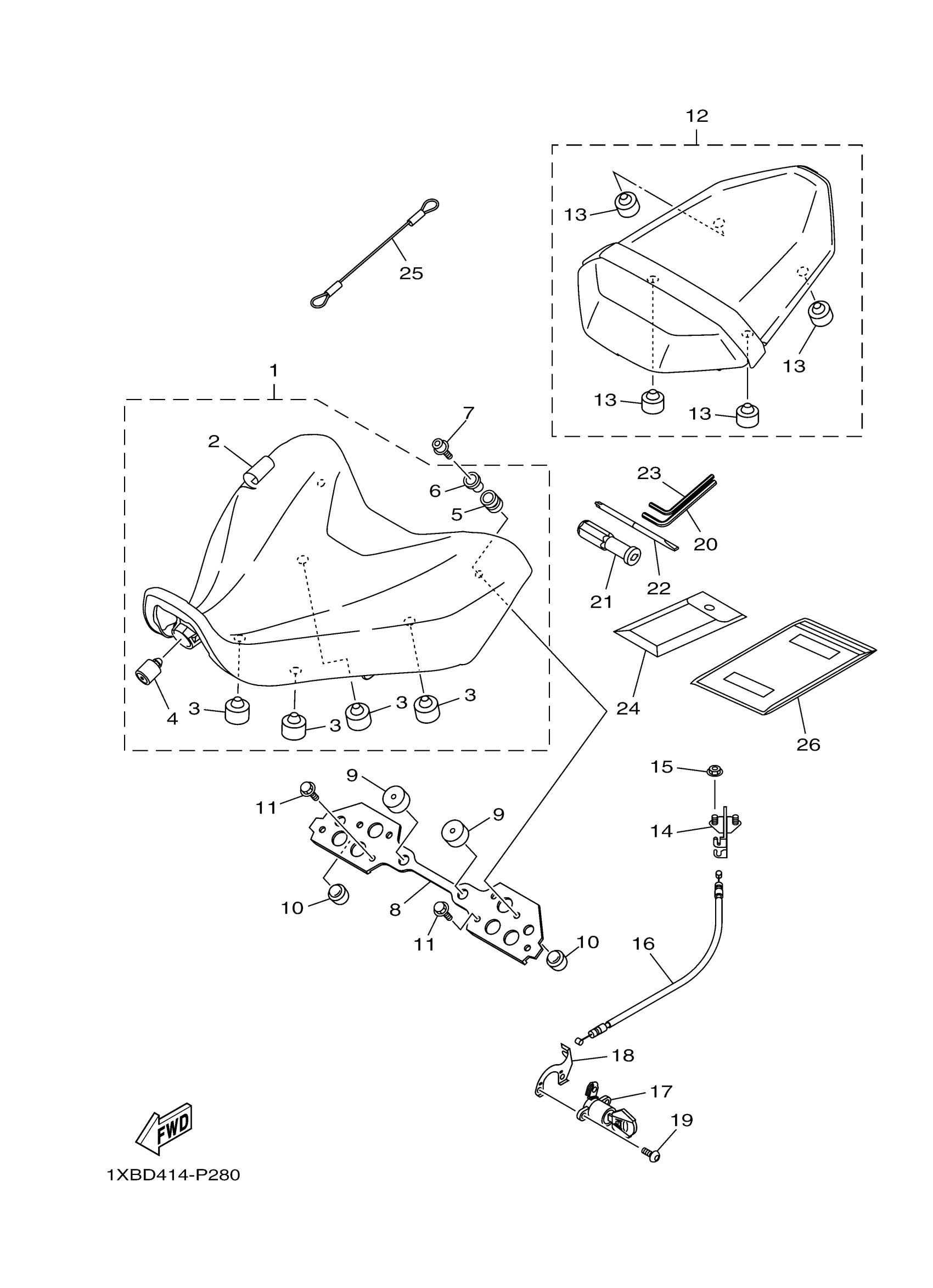

Yamaha FZ07GS (FZ07) 2RC40 2016 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

1WS-24710-01-00

Unavailable

2

Seat Cover Comp

1WS-2470F-01-00

$49.99

3

STOPPER, MAIN STAND

371-27114-00-00

$7.99

4

STOPPER, MAIN STAND

1D7-27114-00-00

$5.49

5

GROMMET(4TX)

90480-14604-00

$8.49

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

8

BRACKET

1WS-21131-00-00

$27.99

9

STOPPER, MAIN STAND

5RU-27114-00-00

$13.49

10

STOPPER, MAIN STAND

157-27114-00-00

$9.99

11

BOLT, FLANGE

95812-06010-00

$2.98

12

TANDEM SEAT ASSY

1WS-24750-01-00

$134.99

13

STOPPER MAIN STAND

278-27114-00-00

$8.99

14

SEAT LOCK ASSY

1WS-24780-00-00

Unavailable

15

NUT, FLANGE

95702-06500-00

$2.39

16

CABLE, SEAT LOCK

1WS-2478E-00-00

Unavailable

17

SEAT LOCK ASSY

3CK-W2470-00-00

Unavailable

18

STAY, LOCK

23P-2117K-01-00

Unavailable

19

SCREW

90149-06030-00

Unavailable

20

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable

21

GRIP, DRIVER

2H7-28151-00-00

Unavailable

22

DRIVER

137-28152-00-00

Unavailable

23

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

24

TOOL KIT

1WS-28100-00-00

Unavailable

25

HANGER, HELMET

2S3-21398-00-00

Unavailable

26

POUCH

4KG-28186-11-00

Unavailable
