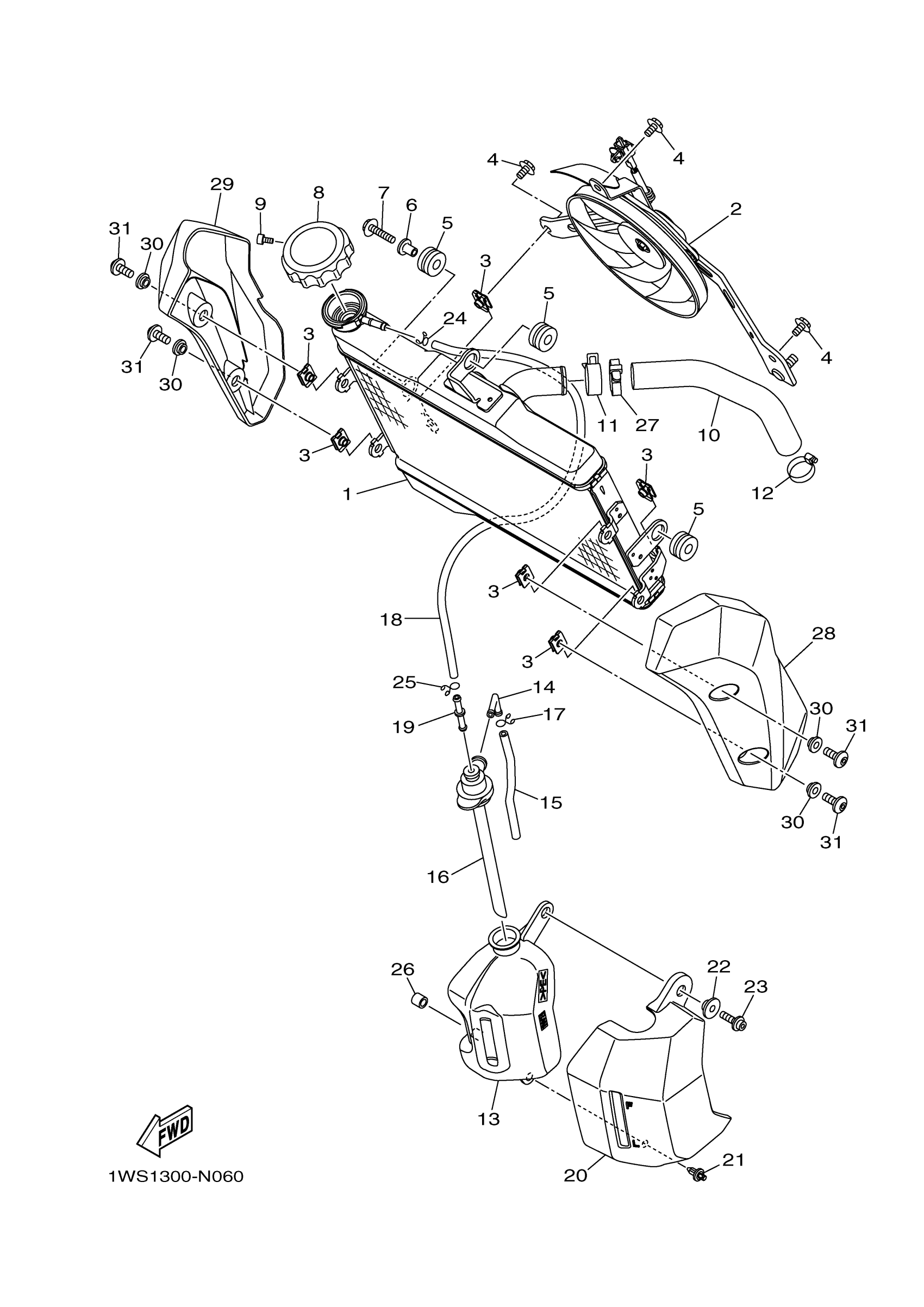

Yamaha FZ07GS (FZ07) 2RC40 2016 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR COMP

1WS-12461-00-00

Unavailable

2

BLOWER ASSY

1WS-12405-00-00

Unavailable

3

NUT 1

1WS-12671-00-00

$3.22

4

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$7.99

5

GROMMET (29L)

90480-15363-00

$8.49

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

BOLT, FLANGE

95822-06025-00

$1.75

8

CAP, RADIATOR

3D7-12462-00-00

$44.99

9

BOLT, SOCKET

91317-03006-00

$9.49

10

HOSE 3

1WS-12578-00-00

$35.99

11

CLIP

90467-290A0-00

Unavailable

12

HOSE CLAMP ASSY

90450-35001-00

$5.60

13

TANK, RECOVERY

1WS-21871-01-00

$30.99

14

ELBOW

26H-21828-00-00

$27.99

15

HOSE

90445-08035-00

Unavailable

16

CAP

3P6-21875-00-00

Unavailable

17

CLIP (16G)

90467-08021-00

Unavailable

18

PIPE 1

1WS-21816-00-00

Unavailable

19

JOINT

4XY-14568-00-00

Unavailable

20

COVER

1WS-2172W-00-00

Unavailable

21

RIVET

90269-06008-00

Unavailable

22

COLLAR (838-84757-00)

90387-06024-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

24

CLIP (16G)

90467-08021-00

Unavailable

25

CLIP 101235600

90467-08003-00

Unavailable

26

HOSE (L10)

90445-11M08-00

Unavailable

27

CLAMP(6U0)

90464-07M40-00

Unavailable

28

COVER, SIDE 3

1WS-21731-00-00

Unavailable

29

COVER, SIDE 4

1WS-21741-00-00

Unavailable

30

COLLAR

90387-06130-00

Unavailable

31

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable
