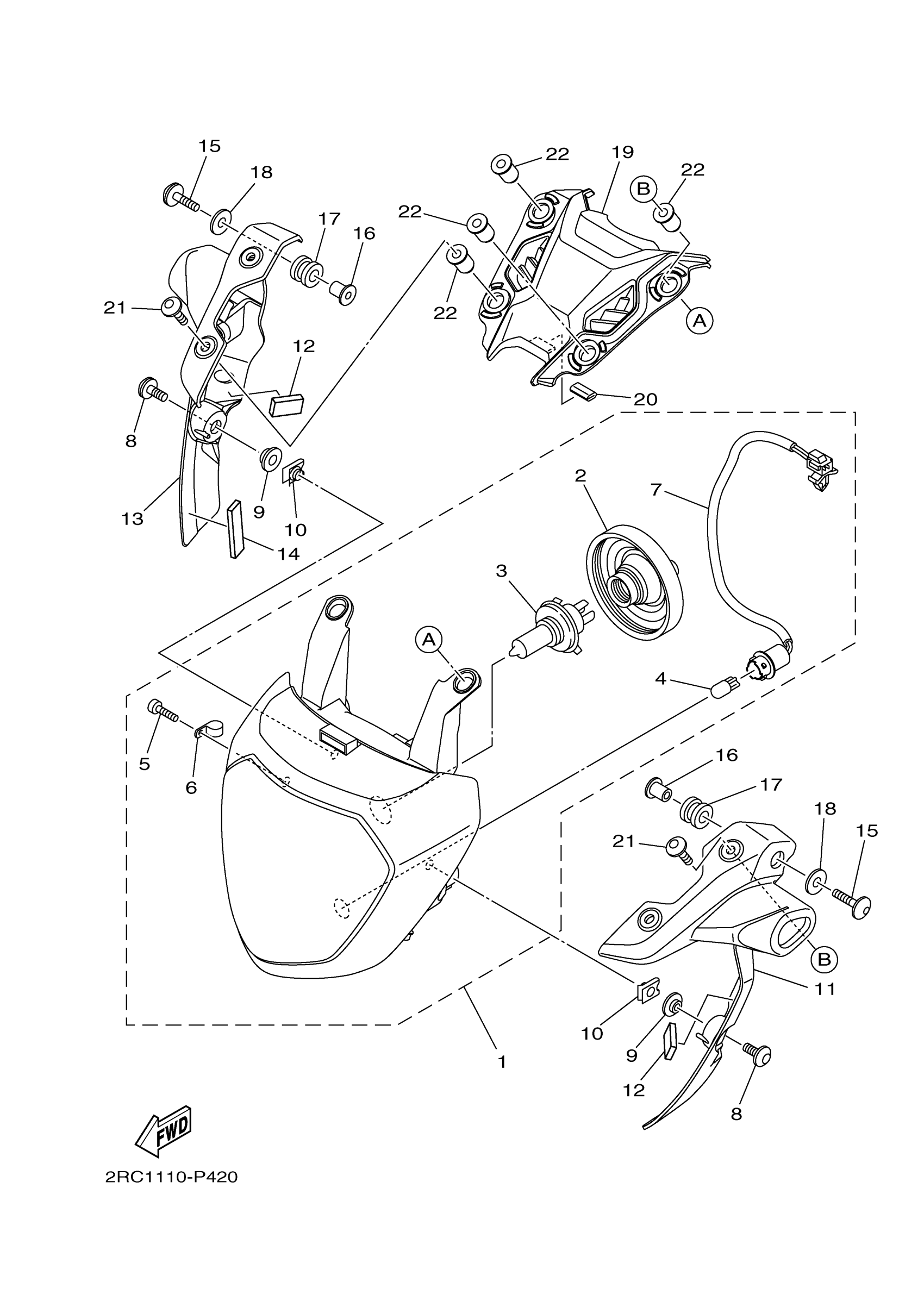

Yamaha FZ07GS (FZ07) 2RC40 2016 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

1WS-84300-00-00

$273.99

2

COVER, SOCKET

1RC-84397-00-00

Unavailable

3

BULB, HEADLIGHT (12V-60/55W)

1RC-84314-00-00

$33.99

4

BULB (12V-W5W)

1RC-84347-00-00

$7.99

5

SCREW

1WS-84526-00-00

$3.38

6

CLAMP, CORD

1WS-8454J-00-00

$4.47

7

CORD, HEADLIGHT

1WS-84359-00-00

Unavailable

8

BOLT

90111-06038-00

$4.29

9

COLLAR

90387-06170-00

$8.49

10

NUT, SPRING

90183-061A7-00

$7.49

11

STAY, HEADLIGHT 1

2RC-84118-00-P0

$71.99

12

DAMPER, PLATE

90520-05018-00

$0.90

13

STAY, HEADLIGHT 2

2RC-84119-00-P0

$100.99

14

DAMPER, PLATE

90520-05019-00

$0.96

15

BOLT,HEX. SOCKET BUTTON

90111-06150-00

$3.35

16

COLLAR

90387-06301-00

Unavailable

17

GROMMET

90480-12015-00

Unavailable

18

WASHER, PLATE

90201-06029-00

Unavailable

19

COVER

1WS-84396-00-00

Unavailable

20

TRIM

1WS-28376-00-00

Unavailable

21

SCREW(4DN)

90149-06302-00

Unavailable

22

NUT

90179-06072-00

Unavailable
