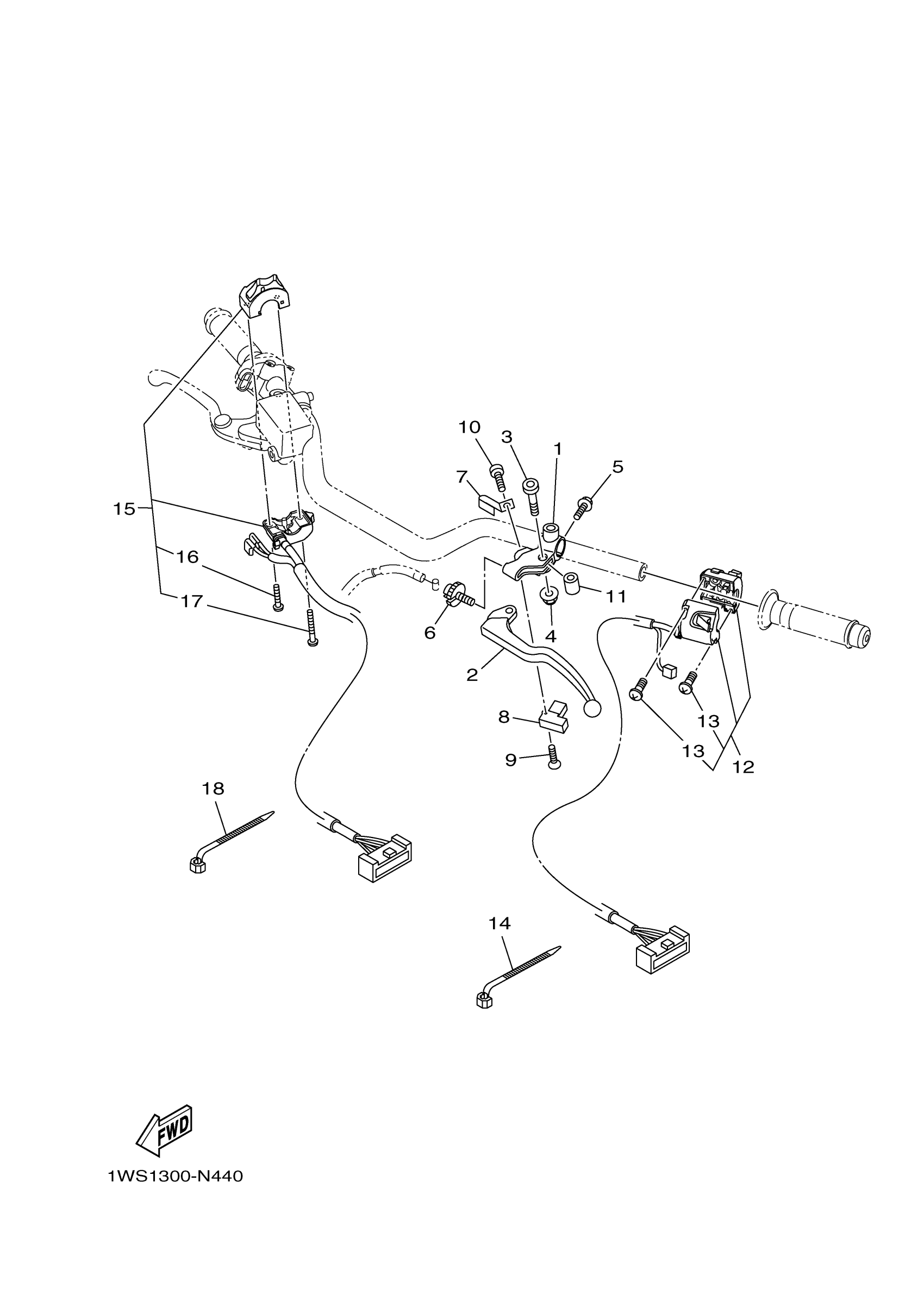

Yamaha FZ07GS (FZ07) 2RC40 2016 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1B3-82911-00-00

$40.99

2

LEVER 1

5EB-83912-03-00

$53.99

3

BOLT, LEVER

2C0-83945-00-00

Unavailable

4

NUT,SELF-LOCKING

95607-06200-00

$12.49

5

. BOLT, FLANGE

95027-06020-00

Unavailable

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$58.99

7

PLATE, SPRING

4XV-83929-00-00

$11.99

8

SWITCH

3YX-82917-01-00

$43.99

9

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

10

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

11

COLLAR, LEVER 1

5JJ-83913-00-00

$8.99

12

SWITCH, HANDLE 4

1WS-83972-01-00

$188.99

13

SCREW, PAN HEAD

98517-04025-00

Unavailable

14

CLAMP(4FM)

90464-15195-00

$4.41

15

SWITCH, HANDLE 2

1WS-83975-01-00

$83.99

16

SCREW, PAN HEAD

98517-04020-00

Unavailable

17

SCREW, PAN

98507-04030-00

Unavailable

18

CLAMP(4FM)

90464-15195-00

$4.41
