Description

Price

1

BRACKET, ADAPTER 1

1WS-274A3-00-00

$111.99

2

BOLT

90111-10006-00

$5.49

3

STAND, SIDE

1WS-27311-00-00

$77.99

4

BOLT

90101-10025-00

$8.49

5

WASHER, PLATE

90201-17018-00

Unavailable

6

COLLAR

90387-10050-00

Unavailable

7

WASHER, PLATE

90201-10035-00

$4.19

8

NUT, SELF-LOCKING

90185-10023-00

Unavailable

9

SPRING, TENSION

90506-23018-00

$23.99

10

GUIDE, SIDE STAND

5VX-27351-00-00

$7.99

11

LINK, SIDE STAND

5VX-27315-00-00

$6.99

12

SWITCH, SIDE STAND

1WS-82566-01-00

$55.99

13

HOLDER

1WS-2419A-00-00

Unavailable

14

BOLT, HEXAGON SOCK

90110-05071-00

$2.65

15

NUT, S/L FLANGE

95607-05200-00

$9.49

16

BRACKET, SIDE STAN

1WS-27321-00-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-10059-00

Unavailable

18

FOOTREST

1WS-27451-00-00

Unavailable

19

PIN, CLEVIS

91702-08040-00

Unavailable

20

PIN, COTTER

91490-25020-00

Unavailable

21

SPRING, TORSION

90508-18056-00

Unavailable

22

COVER, FOOTREST

3YX-27413-00-00

Unavailable

23

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

24

BOLT

90109-08225-00

Unavailable

25

BRACKET 2

1WS-27442-10-00

Unavailable

26

DAMPER, FOOTREST

36Y-27414-00-00

Unavailable

27

STOPPER, MAIN STAND

5VX-27114-00-00

Unavailable

28

JOINT, ROD 1

5VX-18116-00-00

Unavailable

29

COVER, DUST

5VX-18154-00-00

Unavailable

30

PLATE 1

1WS-27445-10-00

Unavailable

31

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

32

SHIFT PEDAL ASSY

1WS-18110-00-00

Unavailable

33

COVER, SHIFT PEDAL

1WS-18113-00-00

Unavailable

34

WASHER, PLATE

90201-12051-00

Unavailable

35

WASHER, WAVE (17W)

90206-12074-00

Unavailable

36

BOLT

4BP-27434-11-00

Unavailable

37

WASHER, PLATE

90201-08053-00

Unavailable

38

ROD, SHIFT

5A8-18115-00-00

Unavailable

39

NUT

90170-06026-00

Unavailable

40

Nut

95314-06700-00

Unavailable

41

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

42

WASHER(1UF)

90209-08295-00

Unavailable

43

COLLAR

90387-06106-00

Unavailable

44

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

45

COVER 1

1WS-27453-11-00

Unavailable

46

GROMMET

90480-14003-00

Unavailable

47

COLLAR

90387-06057-00

Unavailable

48

SCREW

90149-06105-00

Unavailable

49

BRACKET, FOOTREST

1WS-27425-00-00

Unavailable

50

BOLT, FLANGE

95812-06010-00

Unavailable

51

RIVET

90269-08008-00

Unavailable

52

CAP 1

1WS-27475-00-P0

Unavailable

53

FOOTREST, REAR 1

3VR-27431-02-00

Unavailable

54

BRACKET 4

1WS-2741L-02-00

Unavailable

55

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

56

BALL

93501-04011-00

Unavailable

57

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

58

PIN, CLEVIS

91702-08040-00

Unavailable

59

PIN, COTTER

91490-25020-00

Unavailable

60

BOLT, HEXAGON SOCKET HEAD(4KG)

90110-08231-00

Unavailable

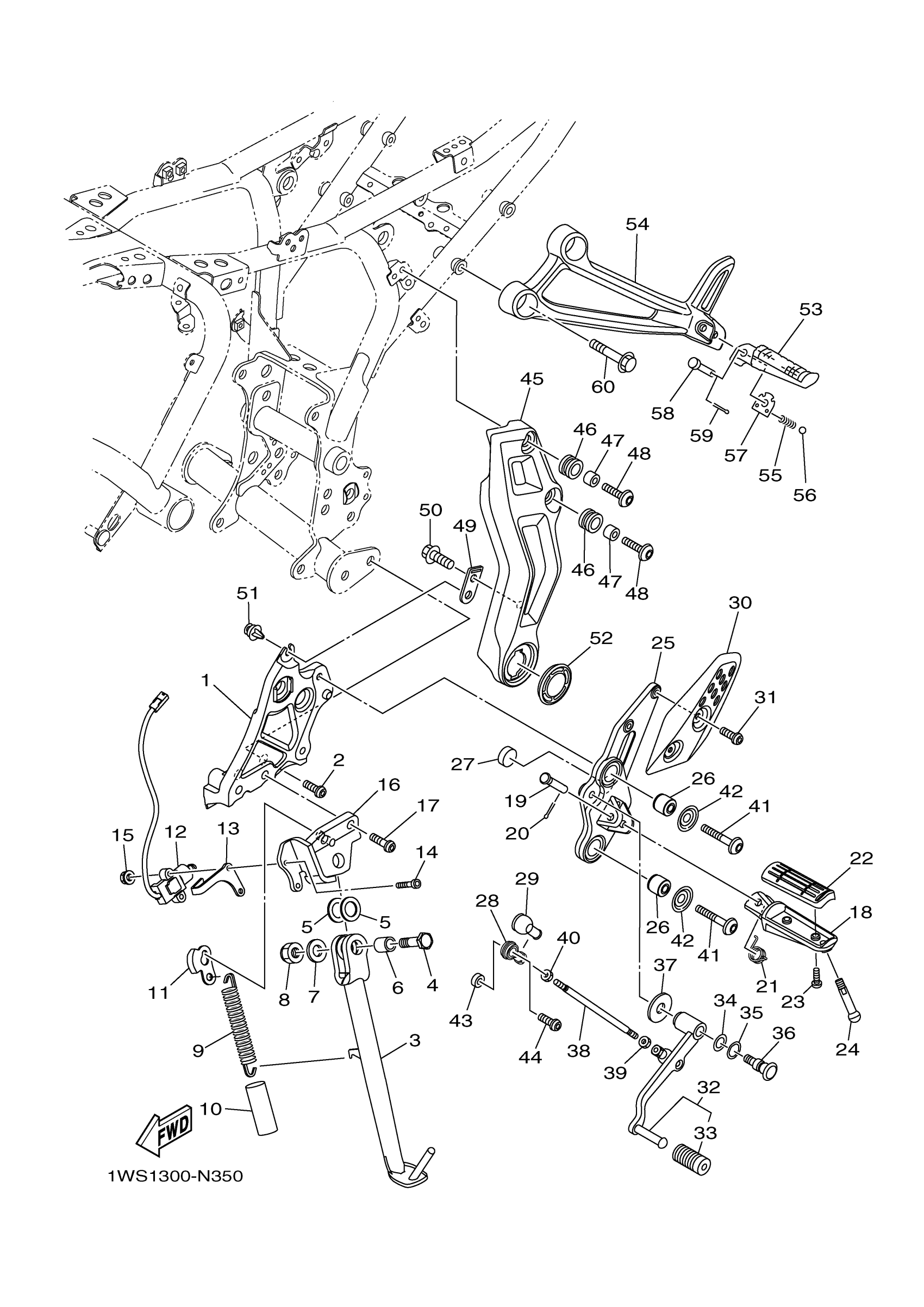

Yamaha FZ07GGY (FZ07) 2RC4 2016 STAND FOOTREST Diagram

BRACKET, ADAPTER 1

BOLT

STAND, SIDE

BOLT

WASHER, PLATE

COLLAR

WASHER, PLATE

NUT, SELF-LOCKING

SPRING, TENSION

GUIDE, SIDE STAND

LINK, SIDE STAND

SWITCH, SIDE STAND

HOLDER

BOLT, HEXAGON SOCK

NUT, S/L FLANGE

BRACKET, SIDE STAN

BOLT,HEX. SOCKET BUTTON

FOOTREST

PIN, CLEVIS

PIN, COTTER

SPRING, TORSION

COVER, FOOTREST

SCREW, PAN HEAD(3YL)

BOLT

BRACKET 2

DAMPER, FOOTREST

STOPPER, MAIN STAND

JOINT, ROD 1

COVER, DUST

PLATE 1

BOLT, BUTTON HEAD(3JP)

SHIFT PEDAL ASSY

COVER, SHIFT PEDAL

WASHER, PLATE

WASHER, WAVE (17W)

BOLT

WASHER, PLATE

ROD, SHIFT

NUT

Nut

BOLT, HEXAGON SOCKET HEAD(38V)

WASHER(1UF)

COLLAR

BOLT, BUTTON HEAD

COVER 1

GROMMET

COLLAR

SCREW

BRACKET, FOOTREST

BOLT, FLANGE

RIVET

CAP 1

FOOTREST, REAR 1

BRACKET 4

SPRING, COMPRESSION (22N)

BALL

WASHER, SPECIAL

PIN, CLEVIS

PIN, COTTER

BOLT, HEXAGON SOCKET HEAD(4KG)
