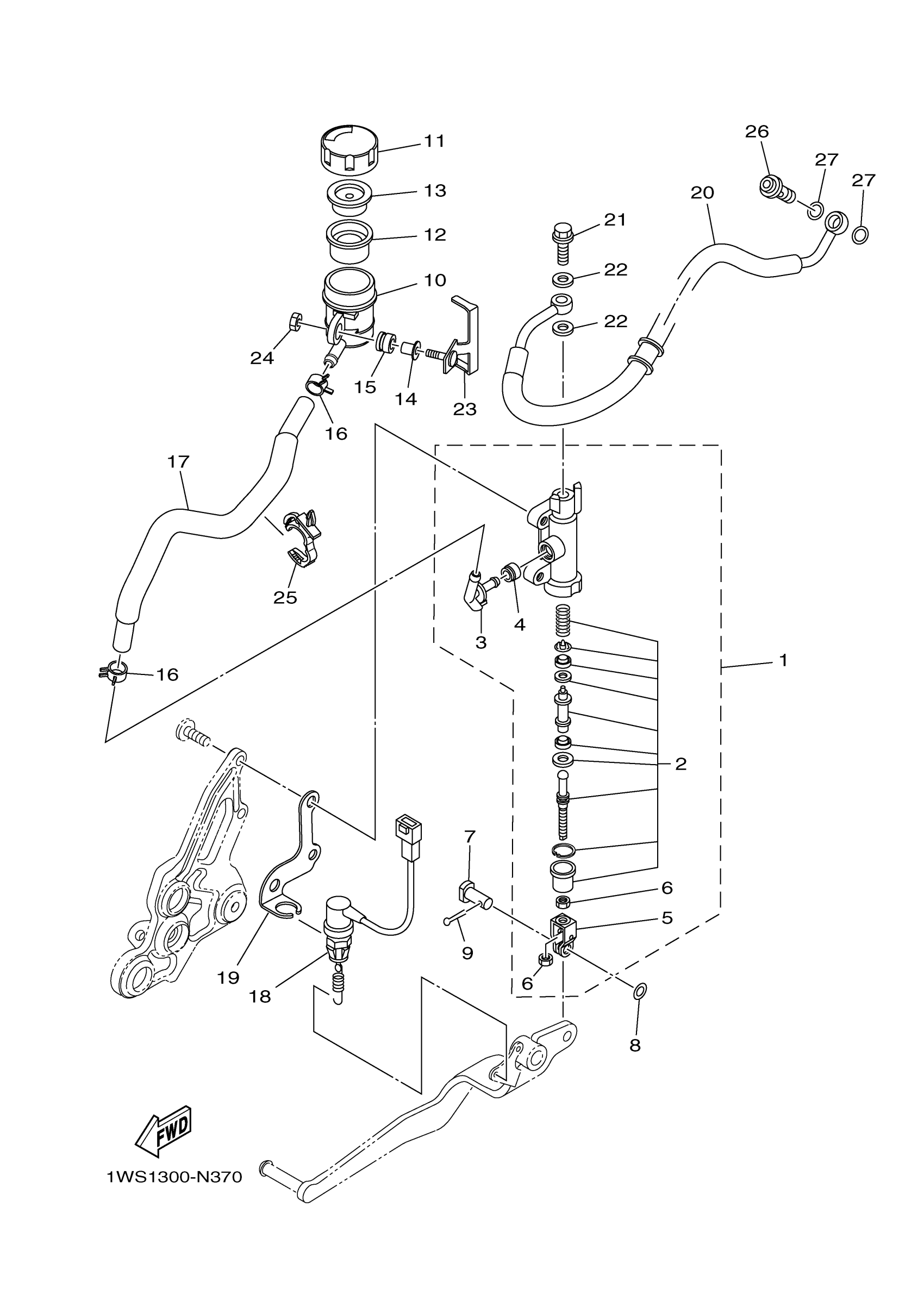

Yamaha FZ07GGY (FZ07) 2RC4 2016 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

2D1-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

5VX-W0042-51-00

$85.99

3

JOINT

2D1-2582A-01-00

$5.49

4

O-RING

4BP-2585F-01-00

Unavailable

5

JOINT

4BP-27222-02-00

$29.99

6

NUT

90170-08010-00

$8.49

7

PIN, CLEVIS

90240-08005-00

$8.49

8

WASHER, PLATE

90201-08070-00

$7.49

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

TANK, RESERVOIR

14B-25894-00-00

$63.99

11

CAP, RESERVOIR

2C0-25852-00-00

$7.99

12

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

13

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

14

COLLAR

90387-05028-00

$5.60

15

GROMMET

2C0-26326-00-00

$6.99

16

CLIP (7K7)

90467-11044-00

Unavailable

17

HOSE, RESERVOIR

1WS-25895-00-00

Unavailable

18

STOP SWITCH ASSY

1WS-82530-02-00

Unavailable

19

STAY, STOP SWITCH

1WS-2144G-00-00

Unavailable

20

HOSE, BRAKE 5

1WS-2581K-01-00

Unavailable

21

BOLT, UNION

90401-10020-00

Unavailable

22

GASKET

90430-10005-00

Unavailable

23

HOLDER, RESERVE TA

1WS-2582E-00-00

Unavailable

24

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

25

CLAMP

90464-17008-00

Unavailable

26

BOLT, UNION

90401-10020-00

Unavailable

27

GASKET

90430-10005-00

Unavailable
