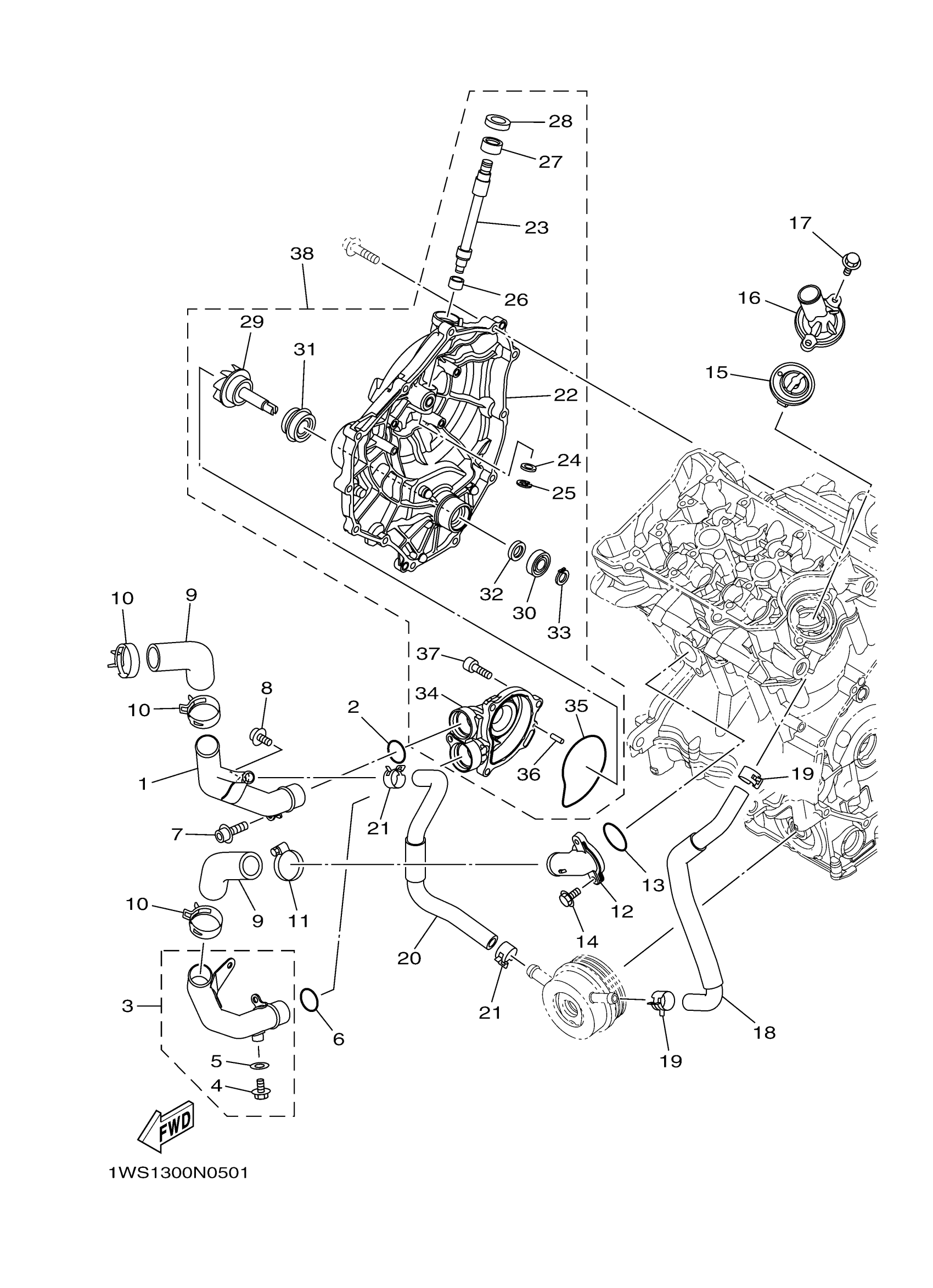

Yamaha FZ07FW (FZ07) 2RC11 2015 WATER PUMP Diagram

#

Description
Price

1

PIPE 1

1WS-12481-01-00

$64.63

2

O-RING

93210-235A1-00

$5.37

3

PIPE 2

1WS-12482-01-00

$73.50

4

BOLT, FLANGE

95022-06010-00

$5.08

5

GASKET 256113960000

90430-06014-00

Unavailable

6

O-RING

93210-235A1-00

$5.37

7

BOLT,SOCKET HEAD

91314-06014-00

$3.29

8

BOLT, HEXAGON SOCKET HEAD

90110-06152-00

$5.84

9

HOSE 1

1WS-12576-00-00

$7.72

10

CLIP

90467-290A0-00

Unavailable

11

HOSE CLAMP ASSY

90450-35001-00

$4.90

12

JOINT 1

1WS-12469-00-00

$29.39

13

O-RING

93210-33006-00

$4.51

14

BOLT, FLANGE

95817-06020-00

$2.52

15

THERMOSTAT ASSY

1WS-12410-01-00

$31.39

16

COVER, THERMOSTAT

1WS-12413-00-00

Unavailable

17

BOLT, FLANGE

95817-06020-00

$2.52

18

HOSE 5

1WS-12588-00-00

Unavailable

19

CLIP

90467-170A6-00

Unavailable

20

HOSE 6

1WS-12589-00-00

Unavailable

21

CLIP

90467-170A6-00

Unavailable

22

COVER, CRANKCASE 2

1WS-15421-00-00

Unavailable

23

AXLE, PUSH LEVER

2D1-16382-00-00

Unavailable

24

WASHER(6TA)

92907-08600-00

Unavailable

25

CIRCLIP

99080-07600-00

$2.82

26

BEARING

93317-11096-00

Unavailable

27

BEARING

93315-21570-00

Unavailable

28

OIL SEAL (3X3)

93102-15212-00

Unavailable

29

IMPELLER SHAFT ASS

1WS-12450-00-00

Unavailable

30

BRG,R-B 6001 28MM 28G KY

93306-00105-00

Unavailable

31

SEAL, MECHANICAL

5VK-12438-00-00

Unavailable

32

SEAL

2CR-13338-00-00

Unavailable

33

CIRCLIP(10Y)

99009-12400-00

Unavailable

34

COVER, HOUSING

1WS-12422-00-00

Unavailable

35

O-RING

1WS-12439-00-00

Unavailable

36

PIN,DOWEL (603)

93603-12007-00

Unavailable

37

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

38

WATER PUMP ASSY

1WS-12420-01-00

Unavailable
