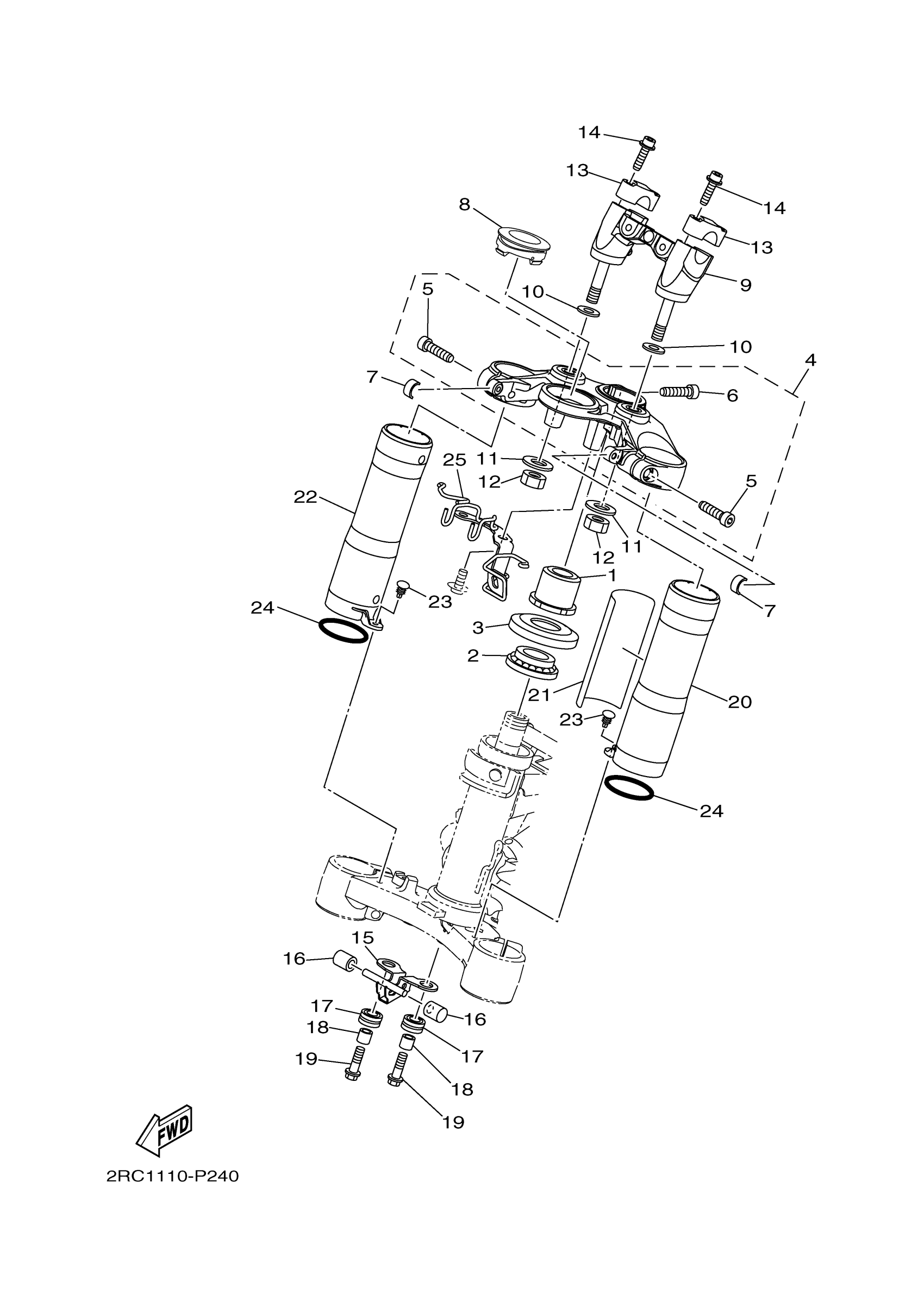

Yamaha FZ07FW (FZ07) 2RC11 2015 STEERING Diagram

#

Description
Price

1

NUT

1WS-23357-00-00

Unavailable

2

BEARING(3FV)

93399-99931-00

$57.99

3

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

4

HANDLE CROWN COMP.

1WS-23430-00-00

$448.99

5

BOLT,SOCKET

91314-08030-00

$2.34

6

BOLT, SOCKET

91314-10035-00

Unavailable

7

DAMPER, HEADLIGHT

1WS-84136-00-00

$2.29

8

CAP, SWITCH

36P-82552-00-00

$15.49

9

HOLDER, HANDLE LOW

1WS-23442-00-P0

$113.99

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

WASHER, PLATE

90201-10043-00

$2.22

12

NUT, U FLANGE

95602-10100-00

$7.49

13

HOLDER, HANDLE UPPER

1E6-23441-10-P0

$27.99

14

BOLT, FLANGE

95022-08035-00

$3.81

15

BRACKET 1

1WS-2334G-00-00

$14.49

16

DAMPER

1WS-84527-00-00

Unavailable

17

DAMPER

3C3-83513-00-00

Unavailable

18

COLLAR (J10)

90387-06026-00

Unavailable

19

BOLT, FLANGE

95817-06025-00

Unavailable

20

COVER, UPPER 1

1WS-23121-01-00

Unavailable

21

PLATE, SEAT

1WS-2318U-00-00

Unavailable

22

COVER, UPPER 2

1WS-23131-01-00

Unavailable

23

RIVET(81E)

90269-05055-00

Unavailable

24

O-RING

93210-40M10-00

Unavailable

25

BRACKET 2

2RC-2334H-00-00

Unavailable
