Description

Price

1

BRACKET,ADAPTER 2

1WS-274A4-00-00

$72.99

2

BOLT

90111-10006-00

$5.49

3

CLAMP

90465-08045-00

Unavailable

4

BOLT, FLANGE

95022-06010-00

$5.60

5

FOOTREST

1WS-27461-00-00

$36.99

6

PIN, CLEVIS

91702-08040-00

$4.35

7

PIN, COTTER

91490-25020-00

$3.19

8

SPRING, TORSION

90508-18056-00

$2.17

9

COVER, FOOTREST

3YX-27413-00-00

$29.99

10

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

11

BOLT

90109-08225-00

$5.60

12

BRACKET 3

1WS-27443-00-00

Unavailable

13

DAMPER, FOOTREST

36Y-27414-00-00

$27.99

14

STOPPER, MAIN STAND

5VX-27114-00-00

$6.99

15

PLATE 2

1WS-27446-00-00

Unavailable

16

BOLT, BUTTON HEAD(3YF)

92014-08025-00

Unavailable

17

PEDAL, BRAKE

1WS-27211-00-00

Unavailable

18

COVER, SHIFT PEDAL

1WS-18113-00-00

Unavailable

19

WASHER, WAVE (17W)

90206-12074-00

Unavailable

20

BOLT

4BP-27434-11-00

Unavailable

21

WASHER, PLATE

90201-12051-00

Unavailable

22

WASHER, PLATE

90201-08053-00

Unavailable

23

SPRING, TENSION

90506-23008-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

25

WASHER(1UF)

90209-08295-00

Unavailable

26

COVER 2

1WS-27463-00-00

Unavailable

27

GROMMET

90480-14003-00

Unavailable

28

COLLAR

90387-06057-00

Unavailable

29

SCREW

90149-06105-00

Unavailable

30

BRACKET, FOOTREST

1WS-27425-00-00

Unavailable

31

BOLT, FLANGE

95812-06010-00

Unavailable

32

RIVET

90269-08008-00

Unavailable

33

CAP 1

1WS-27475-00-P1

Unavailable

34

FOOTREST, REAR 2

3VR-27441-02-00

Unavailable

35

BRACKET 5

1WS-2742L-02-00

Unavailable

36

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

37

BALL

93501-04011-00

Unavailable

38

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

39

PIN, CLEVIS

91702-08040-00

$4.35

40

PIN, COTTER

91490-25020-00

$3.19

41

BOLT, HEXAGON SOCKET HEAD(4KG)

90110-08231-00

Unavailable

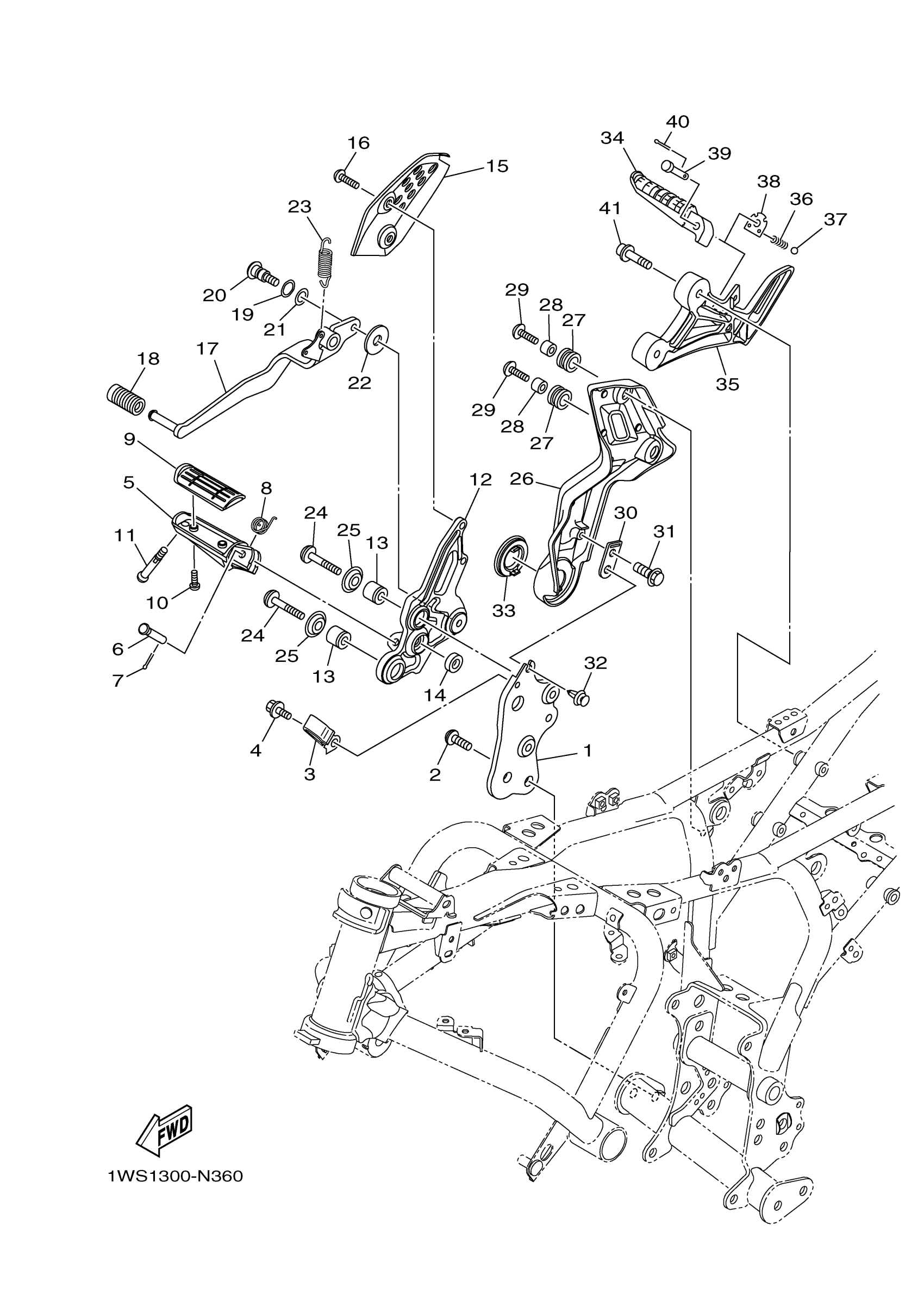

Yamaha FZ07FW (FZ07) 2RC11 2015 STAND FOOTREST 2 Diagram

BRACKET,ADAPTER 2

BOLT

CLAMP

BOLT, FLANGE

FOOTREST

PIN, CLEVIS

PIN, COTTER

SPRING, TORSION

COVER, FOOTREST

SCREW, PAN HEAD(3YL)

BOLT

BRACKET 3

DAMPER, FOOTREST

STOPPER, MAIN STAND

PLATE 2

BOLT, BUTTON HEAD(3YF)

PEDAL, BRAKE

COVER, SHIFT PEDAL

WASHER, WAVE (17W)

BOLT

WASHER, PLATE

WASHER, PLATE

SPRING, TENSION

BOLT, HEXAGON SOCKET HEAD(38V)

WASHER(1UF)

COVER 2

GROMMET

COLLAR

SCREW

BRACKET, FOOTREST

BOLT, FLANGE

RIVET

CAP 1

FOOTREST, REAR 2

BRACKET 5

SPRING, COMPRESSION (22N)

BALL

WASHER, SPECIAL

PIN, CLEVIS

PIN, COTTER

BOLT, HEXAGON SOCKET HEAD(4KG)
