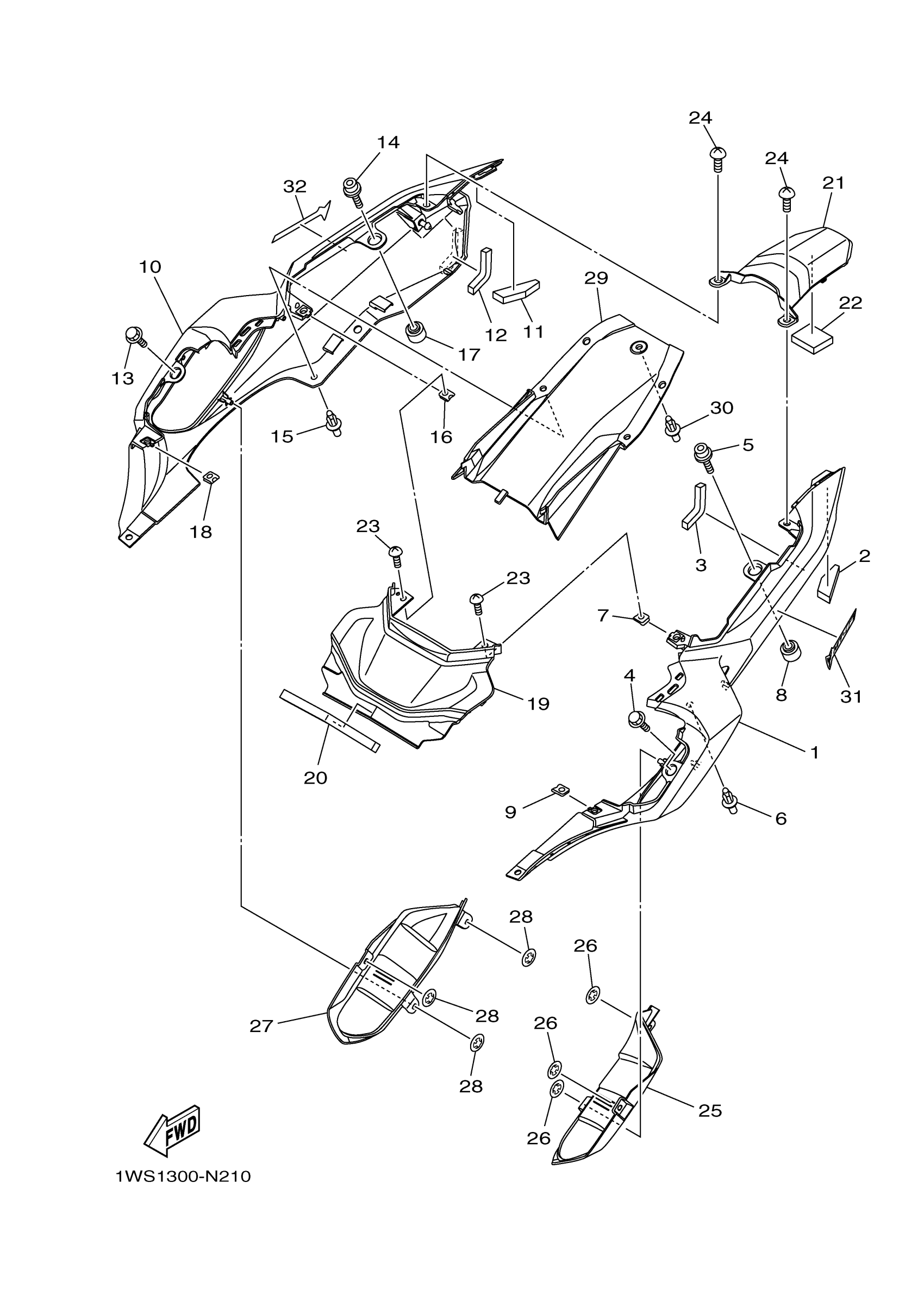

Yamaha FZ07FW (FZ07) 2RC11 2015 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

1WS-21711-00-P1

$100.99

2

DAMPER 3

1WS-2834E-00-00

$2.29

3

DAMPER, PLATE

90520-06005-00

$1.38

4

BOLT

90109-06245-00

$5.60

5

BOLT, HEXAGON SOCKET HEAD

90110-08062-00

$2.08

6

RIVET

90269-06008-00

$9.49

7

NUT, SPRING(1YT)

90183-05042-00

$5.60

8

COLLAR

90387-08101-00

$5.60

9

NUT, SPRING

90183-050A6-00

$8.49

10

COVER, SIDE 2

1WS-21721-00-P1

$100.99

11

DAMPER

1WS-2834F-00-00

$2.29

12

DAMPER, PLATE

90520-06005-00

$1.38

13

BOLT

90109-06245-00

$5.60

14

BOLT, HEXAGON SOCKET HEAD

90110-08062-00

$2.08

15

RIVET

90269-06008-00

$9.49

16

NUT, SPRING(1YT)

90183-05042-00

$5.60

17

COLLAR

90387-08101-00

$5.60

18

NUT, SPRING

90183-050A6-00

$8.49

19

COVER, SIDE 5

1WS-2171E-00-P1

Unavailable

20

DAMPER, PLATE

90520-10024-00

Unavailable

21

COVER, SIDE 6

1WS-2171X-00-P1

Unavailable

22

DAMPER, PLATE

90520-06004-00

Unavailable

23

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

25

LINING, SIDE COVER 1

1WS-2171J-01-00

Unavailable

26

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

27

LINING, SIDE COVER 2

1WS-2171K-01-00

Unavailable

28

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

29

COVER, REAR FENDER

1WS-21651-00-00

Unavailable

30

RIVET

90269-06008-00

$9.49

31

EMBLEM 1

2RC-21781-00-00

Unavailable

32

EMBLEM 1

2RC-21781-00-00

Unavailable
