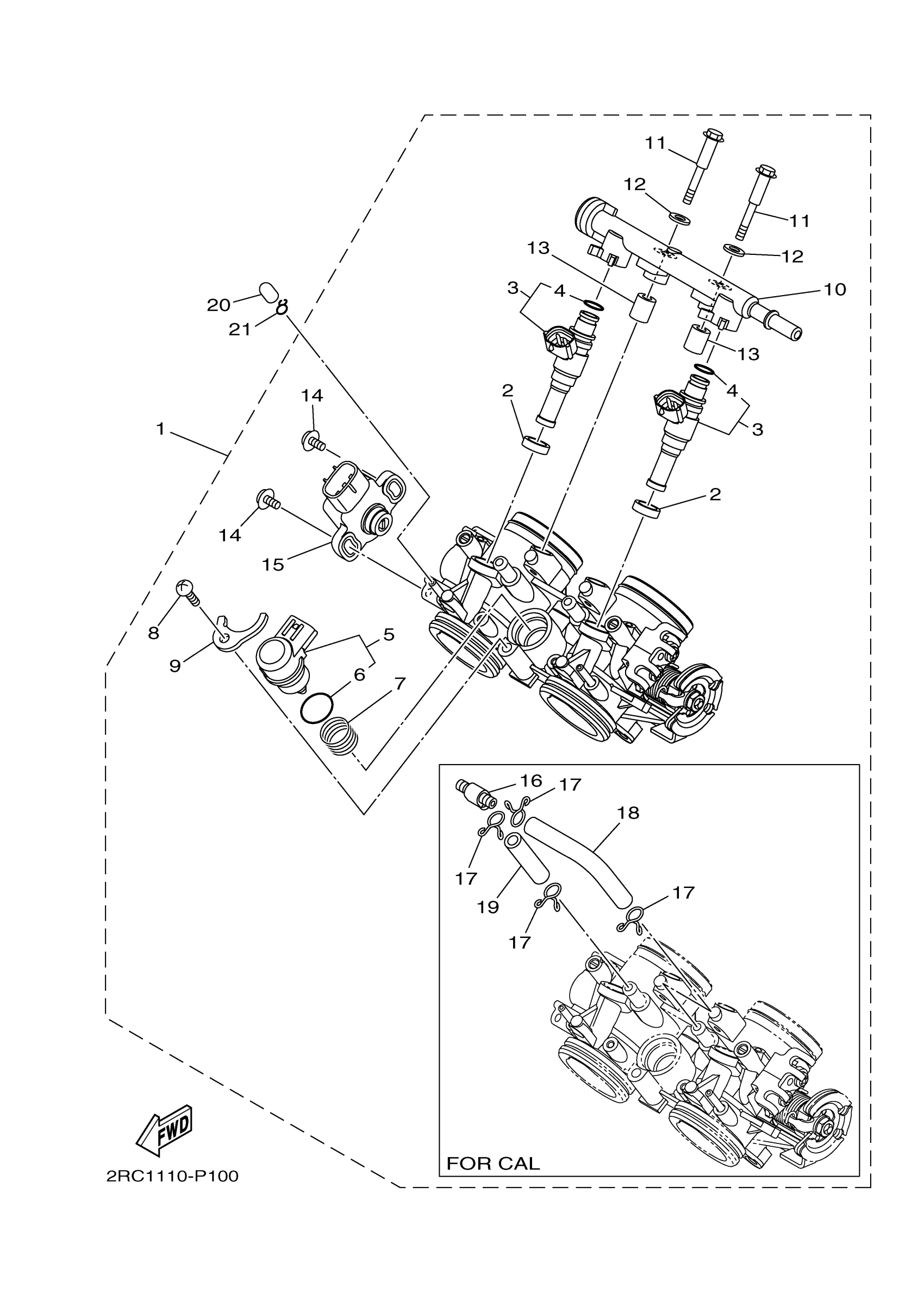

Yamaha FZ07FW (FZ07) 2RC11 2015 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1WS-13750-10-00

$708.99

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

INJECTOR

1WS-13761-00-00

Unavailable

4

O-RING

5PS-14147-00-00

$13.49

5

STEPPING MOTOR

1WS-85801-02-00

$25.99

6

O-RING

54P-E416A-00-00

$6.99

7

SPRING, PLUNGER

1WS-14335-00-00

Unavailable

8

SCREW, PAN

98517-06012-00

$3.78

9

PLATE

54P-14243-00-00

$6.99

10

PIPE

1WS-13938-00-00

Unavailable

11

BOLT 1

8HG-13573-00-00

Unavailable

12

WASHER

8GL-13571-00-00

$3.50

13

COLLAR

8HG-14534-00-00

$31.99

14

SCREW

8CC-14216-10-00

$7.99

15

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

16

WAY 3

90413-06031-00

Unavailable

17

CLIP

90467-090A2-00

Unavailable

18

PIPE

1WS-14465-00-00

Unavailable

19

PIPE

14B-14466-00-00

Unavailable

20

CAP

895-14169-00-00

Unavailable

21

CLIP, PIPE

8A7-14139-00-00

Unavailable
