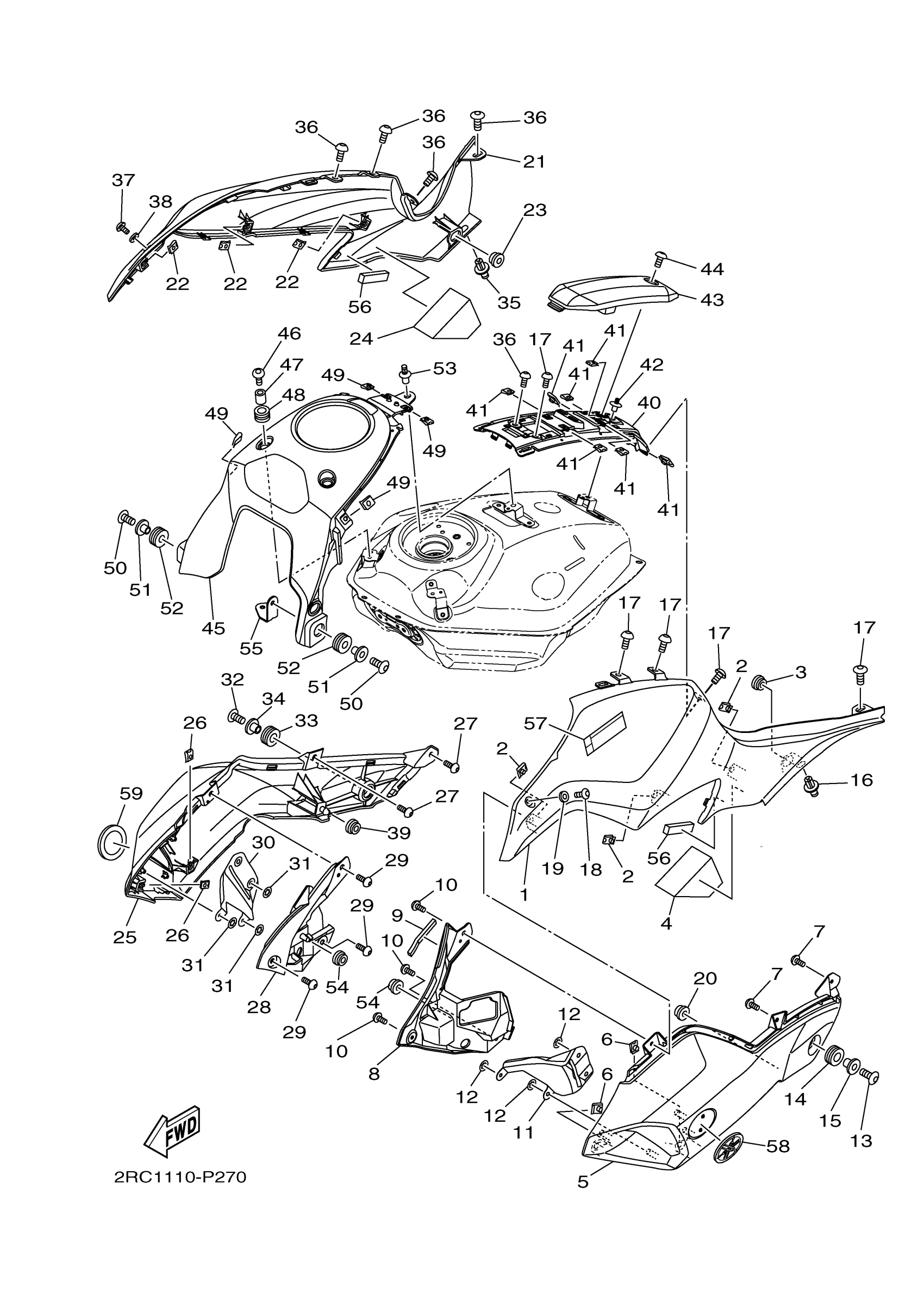

Yamaha FZ07FW (FZ07) 2RC11 2015 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

1WS-24129-00-P4

$129.99

2

NUT, SPRING

90183-050A6-00

$8.49

3

GROMMET(4BH)

90480-01559-00

$5.60

4

DAMPER, PLATE 5

1WS-2414P-00-00

$4.16

5

SCOOP, AIR 1

1WS-2137W-00-00

$103.99

6

NUT, SPRING

90183-050A6-00

$8.49

7

BOLT

90111-05003-00

$8.49

8

PANEL, INNER 1

1WS-2836K-00-00

Unavailable

9

DAMPER, PLATE

90520-10023-00

Unavailable

10

BOLT

90111-05003-00

$8.49

11

GRILL, AIR INTAKE

1WS-2837N-00-00

$50.99

12

NUT, SPRING (6E5)

90183-05M02-00

$0.33

13

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

14

GROMMET

90480-17007-00

Unavailable

15

COLLAR

90387-10107-00

$5.60

16

RIVET(4PH)

90269-07077-00

Unavailable

17

BOLT

90111-05003-00

$8.49

18

BOLT,HEX. SOCKET BUTTON

90111-05037-00

Unavailable

19

. WASHER, PLATE

90202-05088-00

Unavailable

20

GROMMET(4DN)

90480-01558-00

Unavailable

21

COVER, SIDE 2

1WS-24139-00-P4

Unavailable

22

NUT, SPRING

90183-050A6-00

$8.49

23

GROMMET(4BH)

90480-01559-00

$5.60

24

DAMPER, PLATE 6

1WS-2414R-00-00

Unavailable

25

SCOOP, AIR 2

1WS-2137X-00-00

Unavailable

26

NUT, SPRING

90183-050A6-00

$8.49

27

BOLT

90111-05003-00

$8.49

28

PANEL, INNER 2

1WS-2836L-00-00

Unavailable

29

BOLT

90111-05003-00

$8.49

30

GRILL, AIR INTAKE

1WS-2837R-00-00

Unavailable

31

NUT, SPRING (6E5)

90183-05M02-00

$0.33

32

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

33

GROMMET

90480-17007-00

Unavailable

34

COLLAR

90387-10107-00

$5.60

35

RIVET(4PH)

90269-07077-00

Unavailable

36

BOLT

90111-05003-00

$8.49

37

BOLT,HEX. SOCKET BUTTON

90111-05037-00

Unavailable

38

. WASHER, PLATE

90202-05088-00

Unavailable

39

GROMMET(4DN)

90480-01558-00

Unavailable

40

COVER, TOP

1WS-2171A-00-P4

Unavailable

41

NUT, SPRING

90183-050A6-00

$8.49

42

RIVET(4PH)

90269-07077-00

Unavailable

43

COVER 1

1WS-28219-00-00

Unavailable

44

BOLT

90111-05007-00

Unavailable

45

COVER, CAP

1WS-2464E-00-00

Unavailable

46

BOLT

90111-05007-00

Unavailable

47

COLLAR

90387-0611W-00

Unavailable

48

GROMMET (462)

90480-13018-00

Unavailable

49

NUT, SPRING

90183-050A6-00

$8.49

50

BOLT,HEX. SOCKET BUTTON

90111-06084-00

Unavailable

51

COLLAR

90387-07042-00

Unavailable

52

GROMMET(2AL)

90480-14452-00

Unavailable

53

RIVET(4PH)

90269-07077-00

Unavailable

54

GROMMET(4BH)

90480-01559-00

$5.60

55

BRACKET, CAP

1WS-2463E-00-00

Unavailable

56

DAMPER, PLATE

90520-09002-00

Unavailable

57

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

58

EMBLEM

1RC-2413B-02-00

Unavailable

59

EMBLEM

1RC-2413B-02-00

Unavailable
