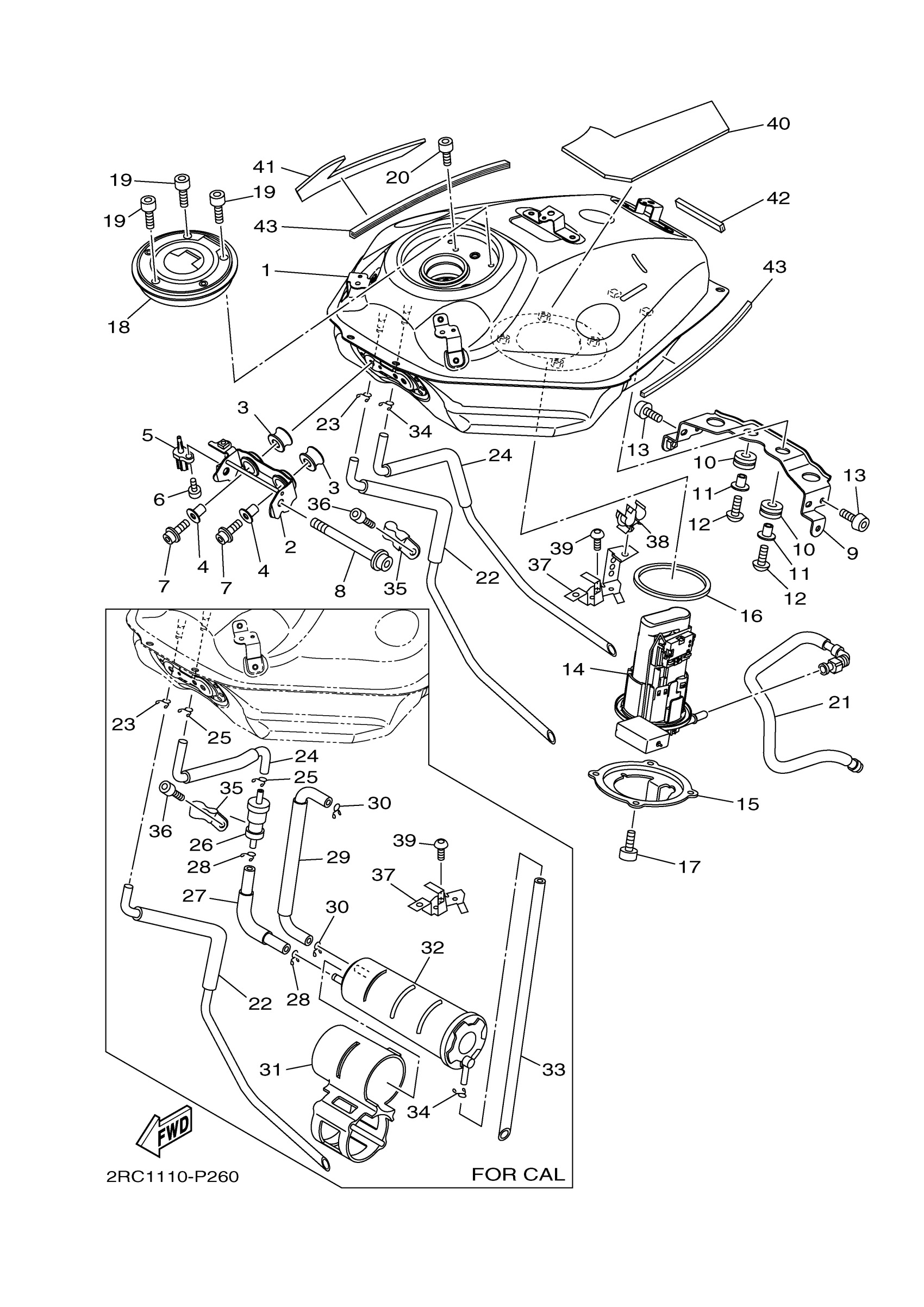

Yamaha FZ07FW (FZ07) 2RC11 2015 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1WS-24110-01-00

Unavailable

2

BRACKET, TANK FITT

1WS-2412Y-00-00

Unavailable

3

GROMMET

3D7-24339-00-00

$4.63

4

COLLAR

90387-06136-00

$7.49

5

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

$34.99

6

SCREW, PAN

98517-05012-00

$4.73

7

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

8

BOLT, FLANGE

95817-08100-00

$5.60

9

BRACKET, TANK FITT

1WS-2413Y-00-00

Unavailable

10

GROMMET

90480-16003-00

Unavailable

11

COLLAR

90387-06287-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-06084-00

$5.60

13

BOLT, BUTTON HEAD

92012-06012-00

$4.35

14

FUEL PUMP COMP.

1WS-13907-10-00

$396.99

15

BRACKET, FUEL PUMP

1WS-24491-01-00

$15.49

16

O-RING

1RC-24486-00-00

Unavailable

17

BOLT

91312-05010-00

Unavailable

18

CAP ASSY

1WS-24602-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

20

BOLT, SOCKET

91317-05010-00

Unavailable

21

PIPE, FUEL 1

1WS-13971-01-00

Unavailable

22

PIPE, OVERFLOW

2RC-24318-00-00

Unavailable

24

PIPE 10

2RC-24321-00-00

Unavailable

25

CLIP

90467-090A2-00

Unavailable

26

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

27

PIPE 11

2RC-24322-00-00

Unavailable

28

CLIP

90467-090A2-00

Unavailable

29

PIPE 12

2RC-24323-00-00

Unavailable

30

CLIP

90467-090A2-00

Unavailable

31

DAMPER, LOCATING 2

2RC-24182-00-00

Unavailable

32

CANISTER ASSY

2RC-24170-00-00

Unavailable

33

PIPE 13

2RC-24324-00-00

Unavailable

35

CLAMP 1

2RC-24135-00-00

Unavailable

37

BRACKET, CANISTOR

2RC-2419F-00-00

Unavailable

39

BOLT,HEX. SOCKET BUTTON

90111-06119-00

Unavailable

40

DAMPER, PLATE 1

1WS-2414H-00-00

Unavailable

41

DAMPER, PLATE 2

1WS-2414J-00-00

Unavailable

42

DAMPER, PLATE

90520-02011-00

Unavailable

43

MOLD, FUEL TANK

3D7-24188-00-00

Unavailable
